IEMCA BOSS 545 E - Page 31

EN
2 - TECHNICAL INFORMATION BOSS 332/545/552 HD
2 - Pag. 16 / 32

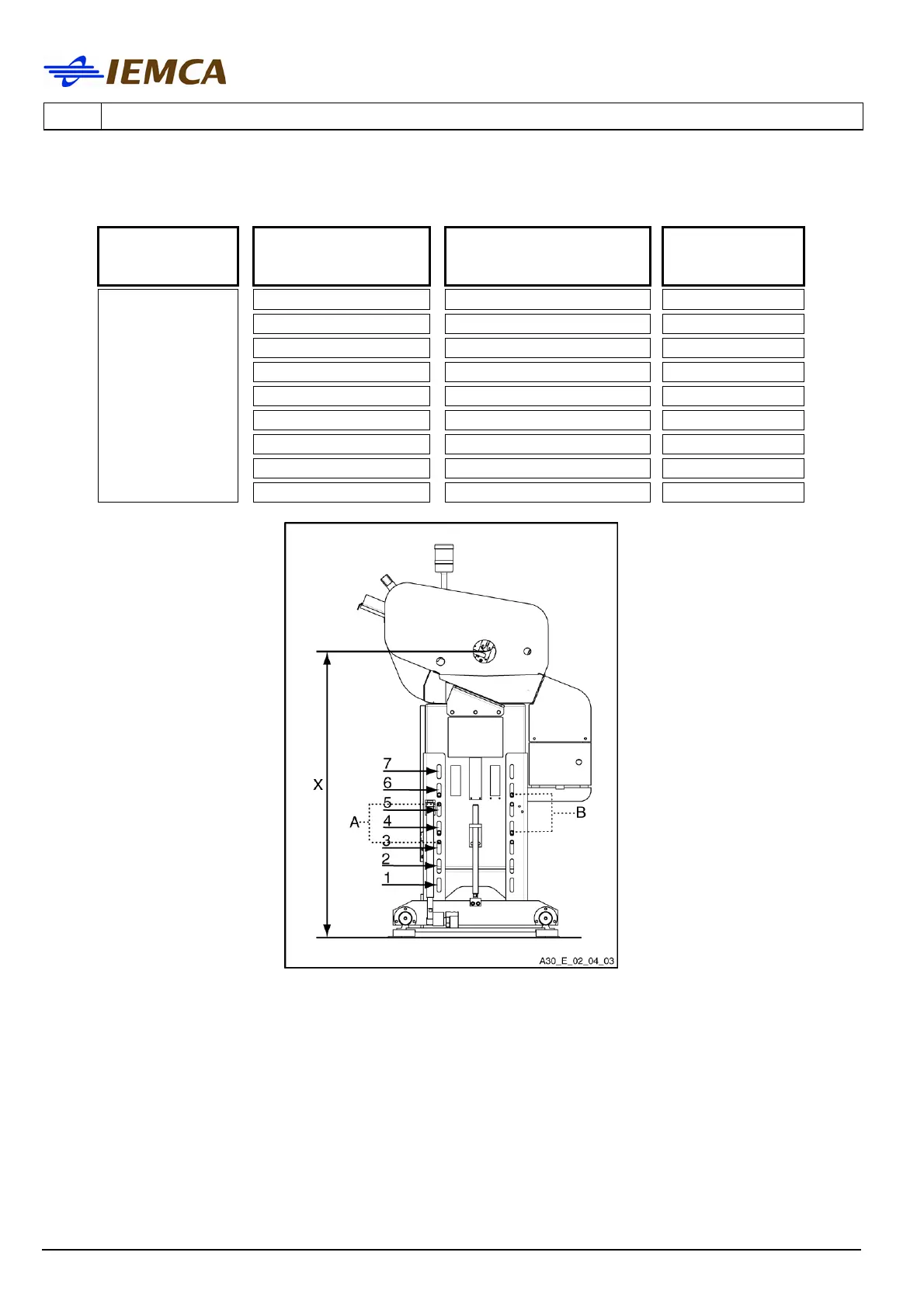

Working axis height with axial displacement Vers. 21.
Model
X (mm) – Loading
axis height
Screw position
(threaded holes on the
base)
Screws
900 ÷ 920 1 - 3 A
921 ÷ 955 2 - 4 B
956 ÷ 990 2 - 4 A
991 ÷ 1025 3 - 5 B
1026 ÷ 1060 3 - 5 A
1061 ÷ 1095 4 – 6 B
1096 ÷ 1130 4 – 6 A
1131 ÷ 1165 5 - 7 B
BOSS 332
BOSS 545
BOSS 552 - HD
1166 ÷ 1200 5 - 7 A
