5 - ADJUSTMENTS AND SETTING-UP BOSS 332/545/552 HD
EN
5 - Pag. 13 / 34

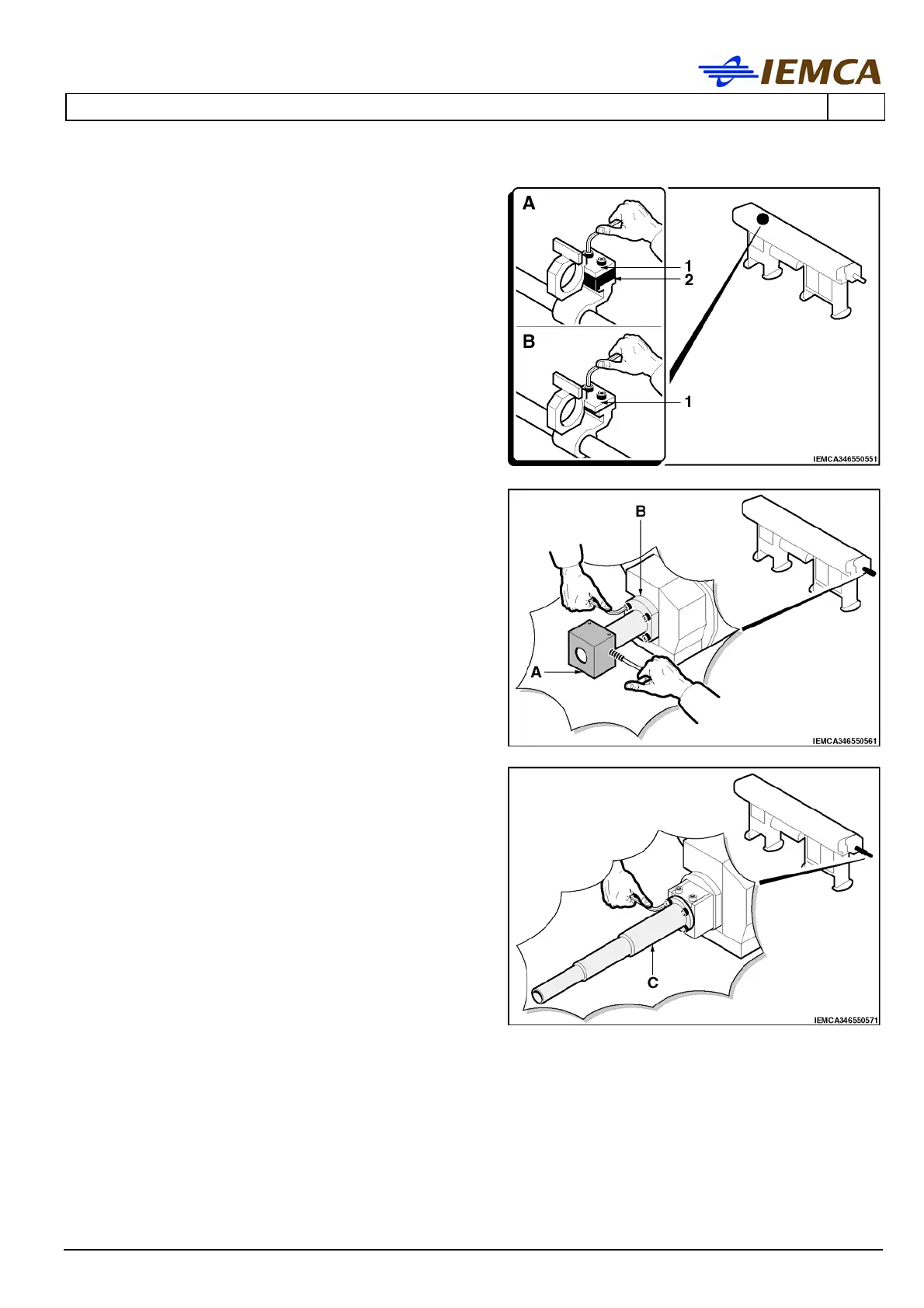

• Remove the bar pusher support.
A Guide channels Ø=13÷46
B Guide channels Ø=52
1 Support
2 Spacer
Remove the sleeve in the following way:
Fixed sleeve
• Remove the oil recovery device "A" and sleeve
"B".
Telescopic front nose
• Remove the sleeve "C".
