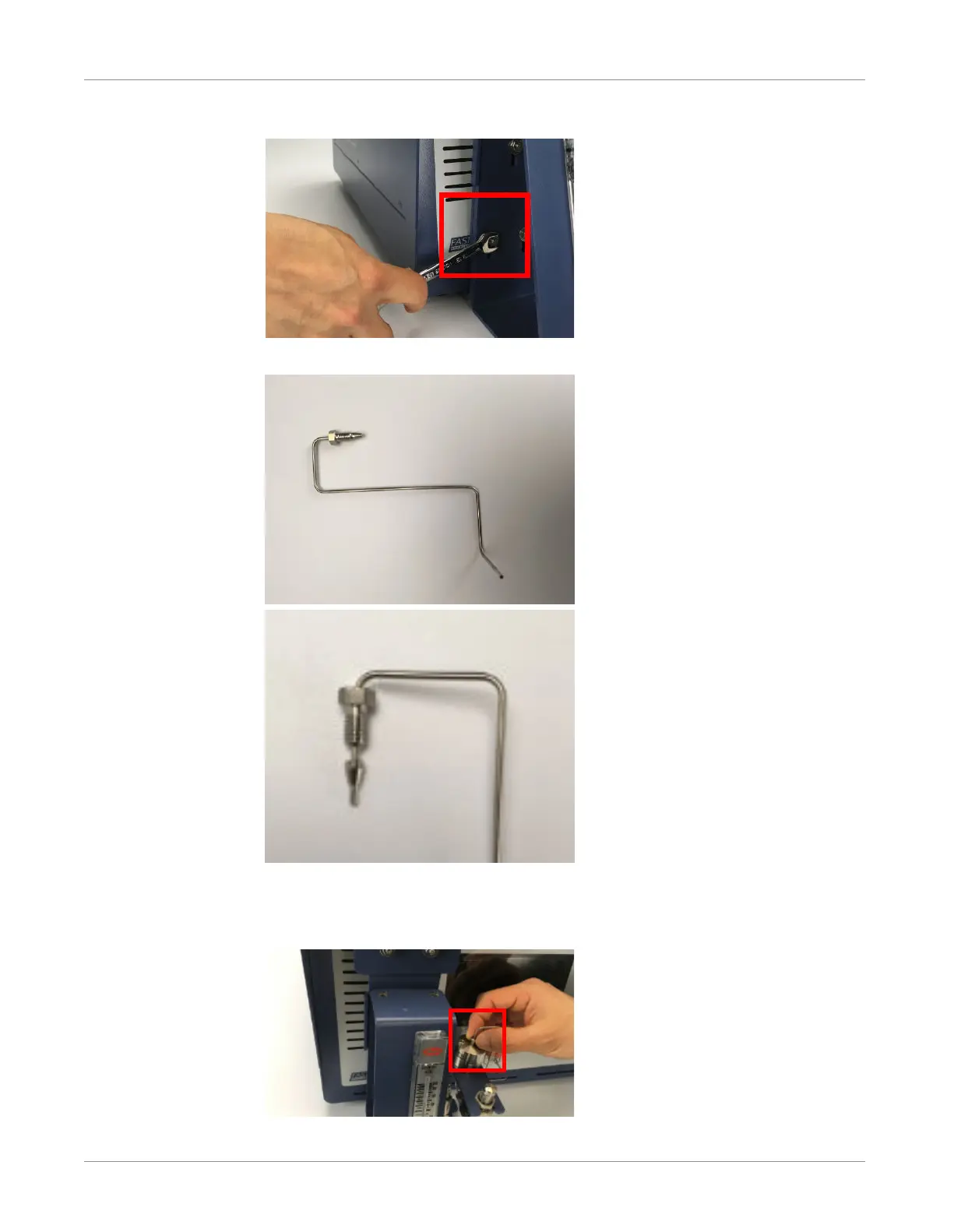

12
Adjust and tighten all the nuts using a 3/8 in. wrench to fix the mounting bracket
on the instrument chassis.
13
Put the Valco ferrule (PN 059-0335) and the nut (PN 059-0336) on the inlet tube.
14
Insert the sample tubing with the Valco fittings into the fitting detail on the Genie
filter. Push the tubing all the way into the detail, so that it seats firmly. Manually
turn the nut into the detail until it is finger tight.
