Chapter 12 — Adjustments
EasyCoder PM4i Printer User’s Guide (Fingerprint Version) 115
Label Stop Sensor
The label stop/black mark sensor (LSS) is a photoelectric sensor
that controls the printer’s media feed by detecting gaps between
labels, or slots or black marks in continuous stock, depending on
the printer’s setup in regard of media type (For help, see “Setting
Up the Printer” on page 51.) An obvious prerequisite is that the
LSS must be aligned with the gaps, slots, or black marks. If using-
irregularly shaped labels, align the LSS with the front tips of the
labels.

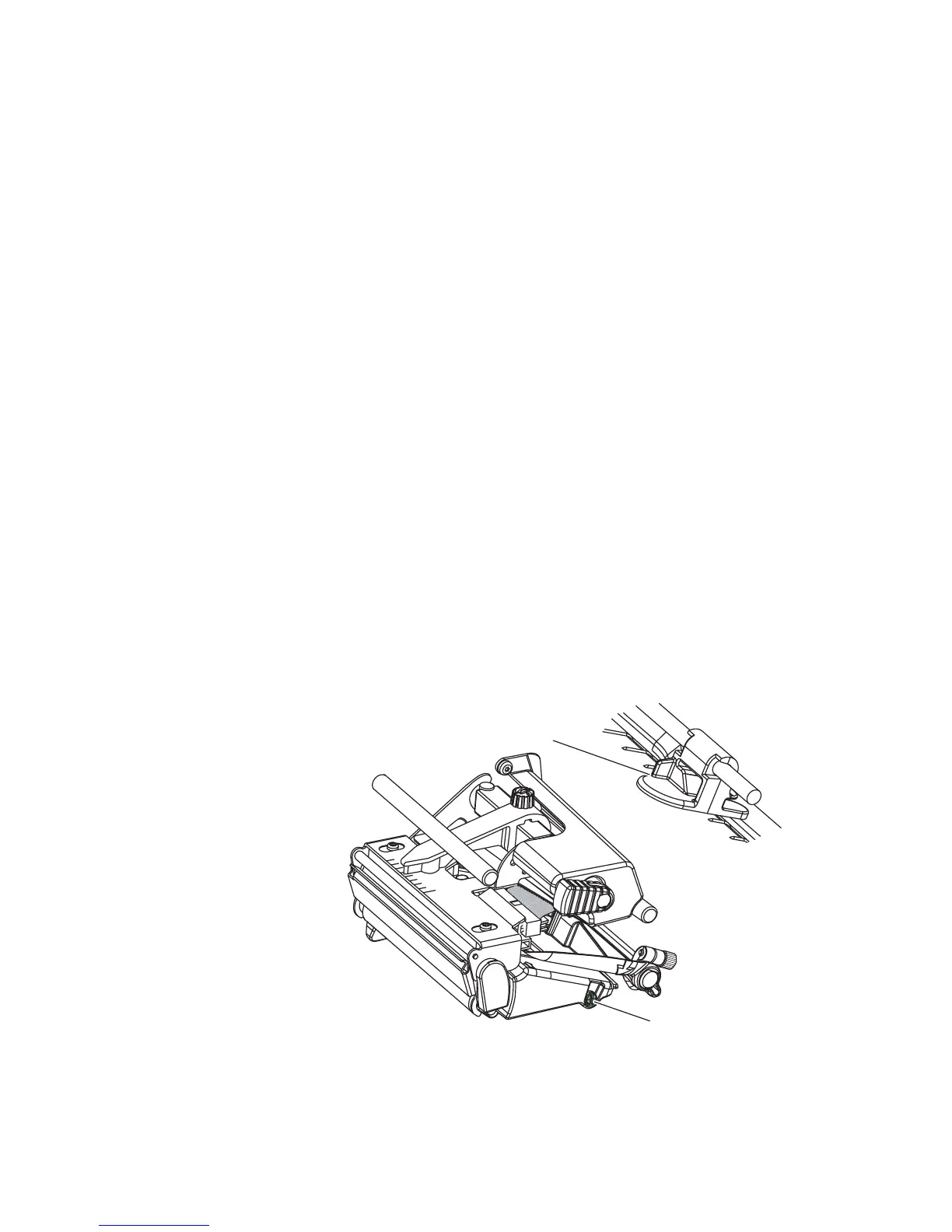

The LSS can be moved laterally from the inner edge of the media
path and 57 mm (2.24 in) outwards, which corresponds to the
centerline of full width media. There is one part of the sensor on
top of the upper media guide and another part underneath the
lower guide. Using a straight-slot screwdriver, turn the
adjustment screw until the point of detection on the upper sensor
becomes aligned with the center of the slots or marks in the
media, when you look into the print mechanism from the front
with the printhead lifted.
• Rotate the screw clockwise to move the sensor towards the
center section.
• Rotate the screw counterclockwise to move the sensor
outwards, away from the center section.
Point of
detection
Adjustment
screw

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
