Intermec EasyCoder PM4i User Manual

Chapter 4 — Media Load
34 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)

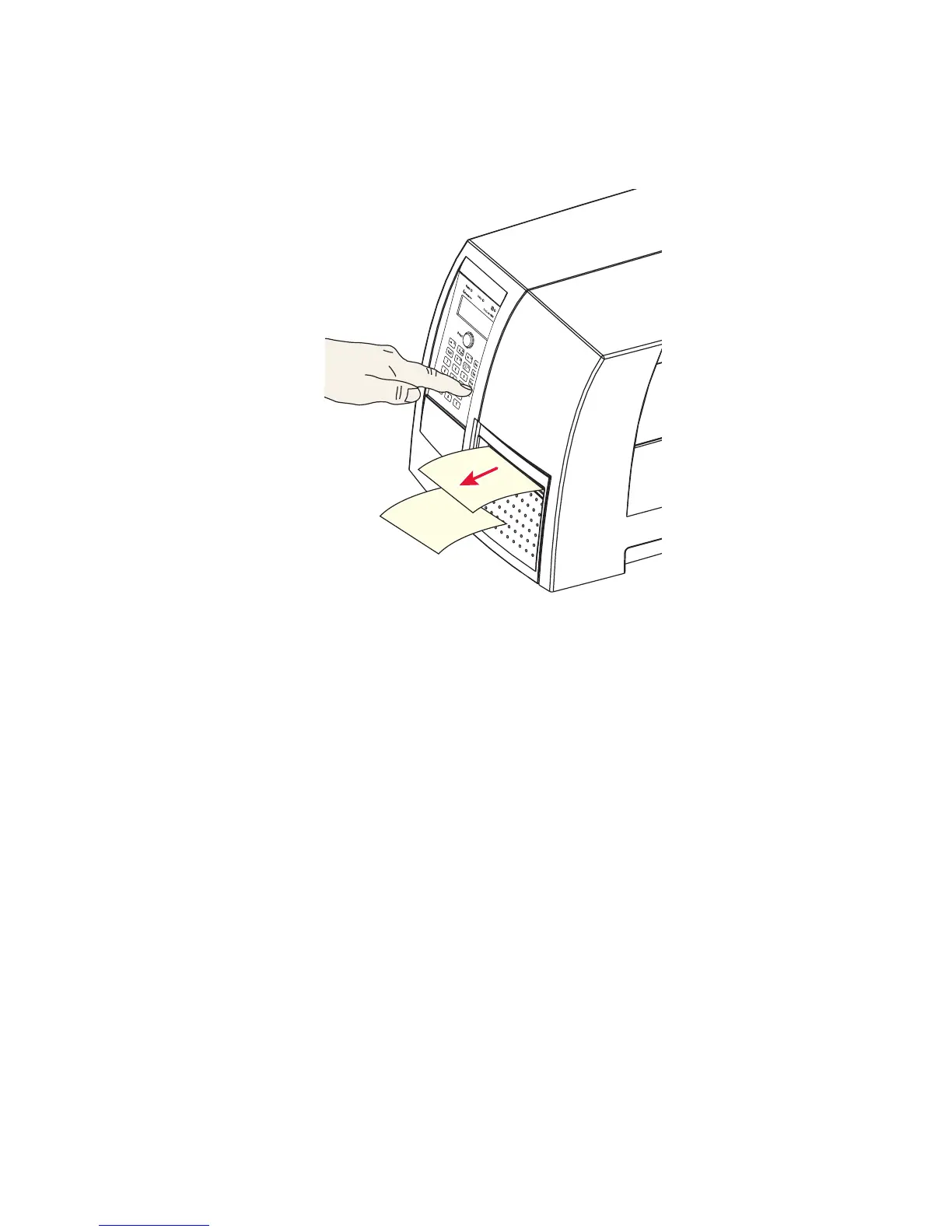

14 Press the Feed button to advance the media and adjust the
media feed.
Cut-Off
The EasyCoder PM4i can print on labels, tickets, tags, and
continuous stock in various forms. This section describes the case
when the media is to be cut off by an automatic paper cutter
(option).
Use the Feed key when loading the same type of media. When
switching to a new type of media or if the printer does not feed
out the media properly, simultaneously press the Shift and Feed
keys to perform a “testfeed.”
Cut-off can be used for:
• Non-adhesive continuous stock
• Self-adhesive labels with liner (cut only liner between labels)
The cutter is designed to cut through paper-based media with a
thickness between 60 and 175 μm, which roughly corresponds to
a paper weight of 60 to 175 grams/m
2
(basis weight 40 to 120 lb).
The cutter should not be used to cut through labels, because the
adhesive will stick to the shears, which can damage the cutter.

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
