Intermec EasyCoder PM4i User Manual

Chapter 2 — Installation
10 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)

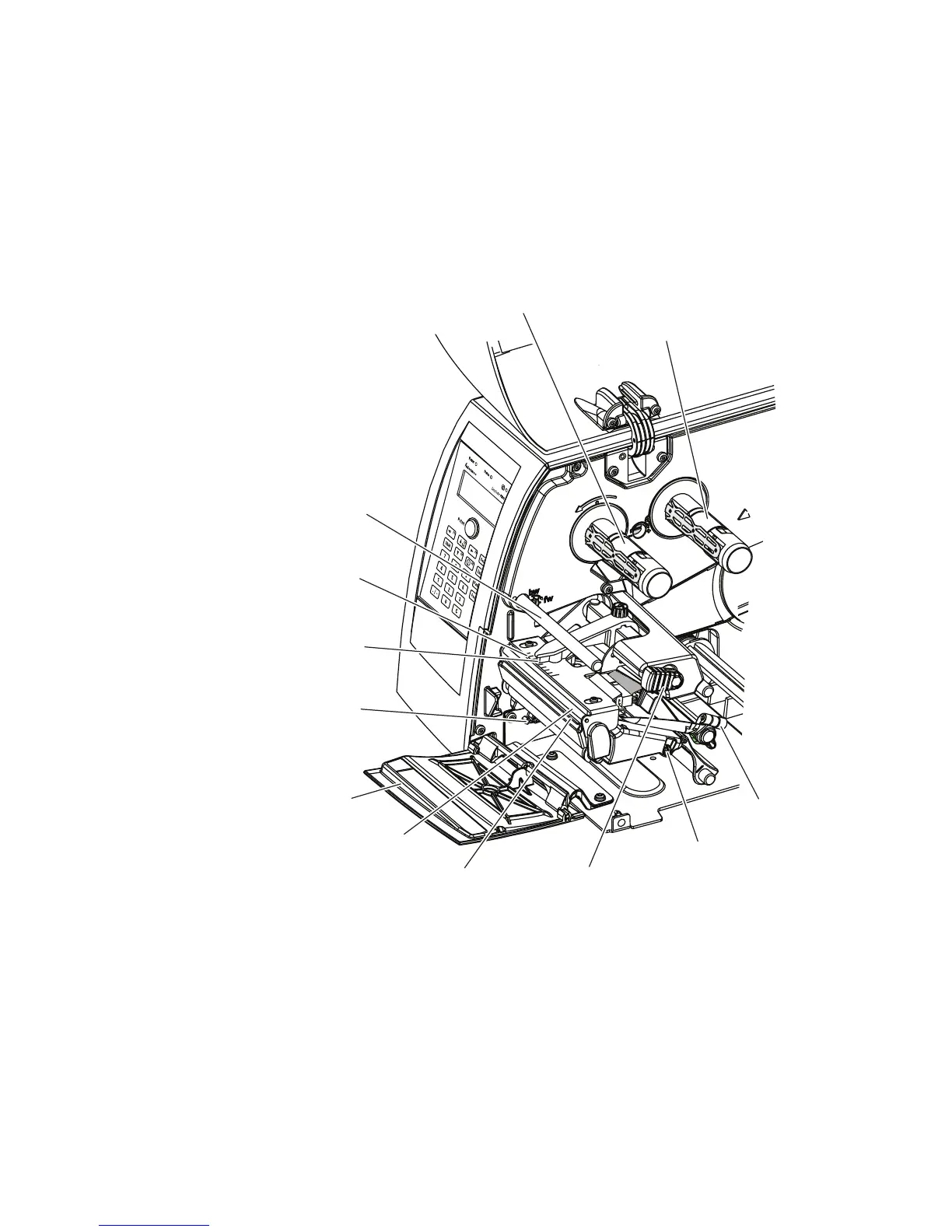

Print Mechanism
The print mechanism features a high-performance thermal
printhead with quick-mount fittings to facilitate replacement.
Ribbon
rewind
hub
Ribbon
break
shaft
Thermal
printhead
Pressure
arm
Finisher
interface
T
ear bar
(tear upwards)
Platen
roller
Tear bar
(tear downwards
and peel-o )
Printhead
lift lever
Label stop sensor
position adjustment
Edge
guide
Ribbon
supply
hub

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
