Intermec EasyCoder PM4i User Manual

Chapter 4 — Media Load
EasyCoder PM4i Printer User’s Guide (Fingerprint Version) 27

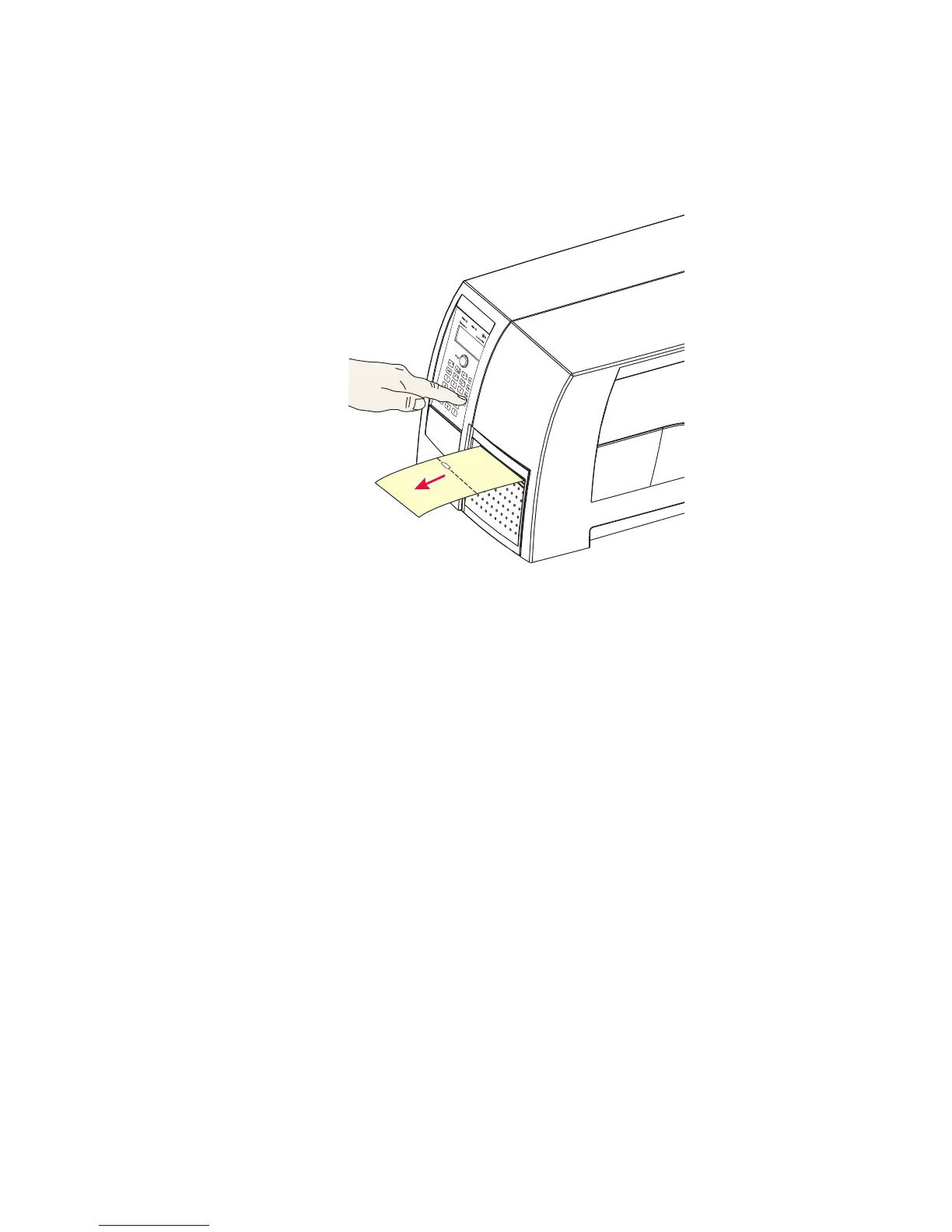

11 Press the Feed button to advance the media and adjust the
media feed. Tear off the media by pulling it downwards.
Peel-Off (Self-Strip)
The EasyCoder PM4i can print on labels, tickets, tags, and
continuous stock in various forms. This section describes the case
when self-adhesive labels are separated from the liner
immediately after printing, which requires optional integral self-
strip unit with liner takeup. This is also known as “Self-strip”
operation.
Peel-off operation cannot be performed when an optional fanfold
guide fitted.
Use the Feed key when loading the same type of media. When
switching to a new type of media, or if the printer does not feed
out the media properly, simultaneously press the Shift and Feed
keys to perform a “testfeed.”
Peel-off can only be used for:
• Self-adhesive labels with liner

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
