Intermec EasyCoder PM4i User Manual

Appendix E — Setup Mode Overviews
EasyCoder PM4i Printer User’s Guide (Fingerprint Version) 161

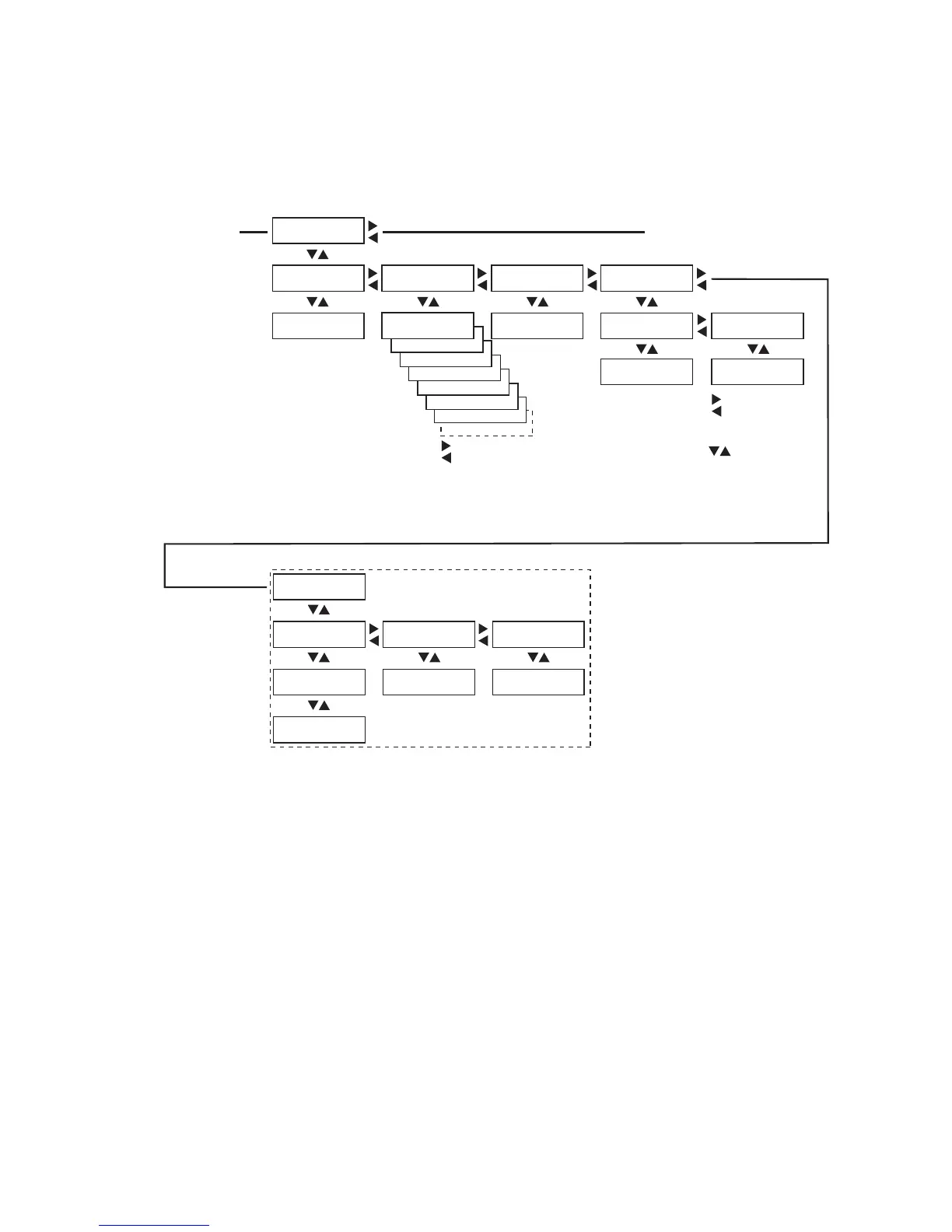

Setup Mode; Print Defs
(Intermec Fingerprint v8.70)
TESTPRINT:
NETWORK INFO
Only displayed if an
optional EasyLAN board
is installed.
Scroll forward
Scroll back
<Enter> to print
<?> for error info
TESTPRINT:
RFID TEST LABEL
TESTPRINT:
HARDWARE INFO
TESTPRINT:
SETUP INFO
TESTPRINT:
BAR CODES #2
TESTPRINT:
BAR CODES #1
TESTPRINT:
CHESS
SETUP:
PRINT DEFS
PRINT DEFS:
HEAD RESIST
PRINT DEFS:
TESTPRINT
PRINT DEFS:
PRINT SPEED
HEAD RESIST:
[nnn]:
PRINT SPEED:
[100]:
PRINT DEFS:
LTS
LTS:
LTS ADJUST
LTS:
LTS TEST
LTS:
LTS VALUE
REMOVE LABEL AND
PRESS ENTER
REMOVE LABEL
ENTER TO STOP
LTS VALUE:
[10]:
SENSITIVITY 10
OUT OF 9-10
PRINT DEFS:
LSS TEST
LSS TEST:
LSS AUTO
LSS TEST:
LSS MANUAL
LSS AUTO:

LSS [G: 2]D: 6

Continued from
the previous page
Return to the start of the Setup Mode loop
(SETUP/SER-COM, UART1) or press <Setup>
to exit the Setup Mode.
Read-only
Toggle between
gain (G) and drive
(D)
Decrease/increase
value inside
brackets
Only displayed if an optional LTS (Label Taken
Sensor) is installed in the printer.
TESTPRINT:
DIAMONDS

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
