Intermec EasyCoder PM4i User Manual

Chapter 12 — Adjustments
120 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)
Ribbon Break Shaft
If ribbon wrinkling occurs, you may need to adjust the alignment
of the front ribbon break shaft so that it runs parallel to the
printhead and the ribbon supply and rewind hubs. The
adjustment is done using a straightslot screw that is located
immediately behind the front ribbon break shaft.
• If the ribbon tends to slide outwards, turn the screw carefully
clockwise (fw) to move the outer end of the break shaft
forward.
• If the ribbon tends to slide inwards, turn the screw carefully
counterclockwise (bw) to move the outer end of the break
shaft backward.
Before readjusting the break shaft, make sure that there is no
other cause for the wrinkling of the ribbon. (See
“Troubleshooting” on page 89.)

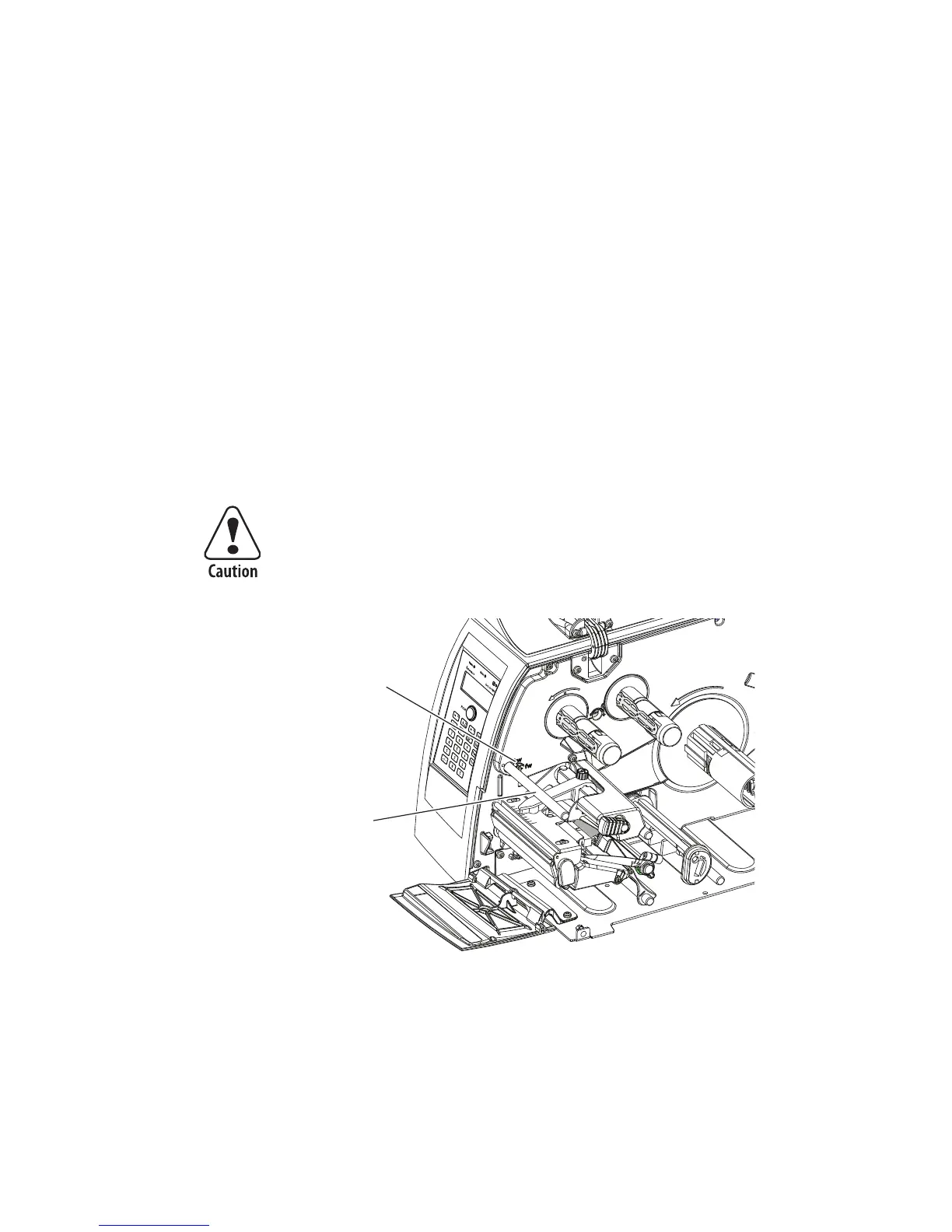

Adjustment
screw
Ribbon
break
shaft

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
