Intermec EasyCoder PM4i User Manual

Appendix E — Setup Mode Overviews
158 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)

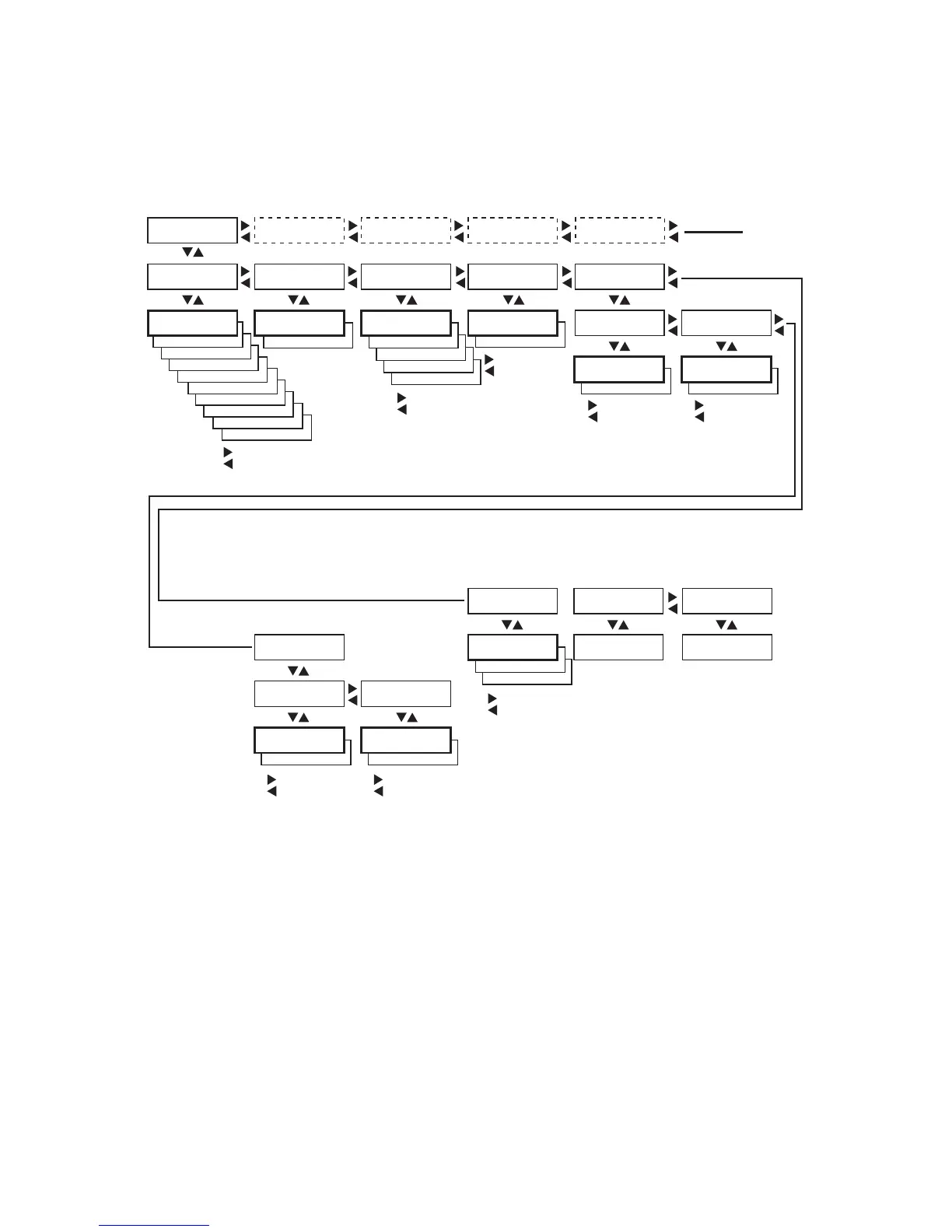

Setup Mode; Serial Communication "uart1:"
(Intermec Fingerprint v8.70)
Legend:
Dotted boxes and lines indicate options.
Thick boxes indicates default options.
Values inside brackets indicate default settings.
NEW LINE:
CR
NEW LINE:
LF
DATA TO HOST:
ENABLE
DATA FROM HOST:
ENABLE
BAUDRATE;
4800
BAUDRATE;
2400
BAUDRATE;
1200
BAUDRATE;
600
BAUDRATE;
300
BAUDRATE;
115200
BAUDRATE;
57500
BAUDRATE;
38400
BAUDRATE;
19200
PARITY:
SPACE
PARITY:
MARK
PARITY:
ODD
PARITY:
EVEN
CHAR LENGTH
7
STOP BITS:
2
ENQ/ACK:
ENABLE
SETUP:
SER-COM, UART1
SETUP:
SER-COM, UART2
SETUP:
SER-COM, UART3
SETUP:
NET-COM, NET1
SER-COM, UART1:
BAUDRATE
SER-COM, UART1:
CHAR LENGTH
SER-COM, UART1:
PARITY
SER-COM, UART1:
STOP BITS
SER-COM, UART1:
FLOWCONTROL
BAUDRATE;
9600
CHAR LENGTH
8
PARITY:
NONE
STOP BITS:
1
FLOW CONTROL:
RTS/CTS
FLOW CONTROL:
ENQ/ACK
ENQ-ACK:
DISABLE
ENQ/ACK:
ENABLE
RTS/CTS:
DISABLE
FLOW CONTROL:
XON/XOFF
SER-COM, UART1:
NEW LINE
NEW LINE:
CR/LF
XON/XOFF:
DATA TO HOST
XON/XOFF:
DATA FROM HOST
DATA TO HOST:
DISABLE
DATA FROM HOST:
DISABLE
SER-COM, UART1:
REC BUF
REC BUF:
[1024]:
SER-COM, UART1:
TRANS BUF
TRANS BUF:
[1024]:
See separate overview See separate overview See separate overview
SETUP:
NETWORK
See separate overview
Continued on
the next page
Scroll forward
Scroll back
Scroll forward
Scroll back
Scroll forward
Scroll back
Scroll forward
Scroll back
Scroll forward
Scroll back
Scroll forward
Scroll back
Scroll forward
Scroll back
Scroll forward
Scroll back

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
