Chapter 4 — Media Load
EasyCoder PM4i Printer User’s Guide (Fingerprint Version) 35
The cutter is held by a latch inside the media compartment and
can be tilted forward to facilitate media load. A switch prevents
the cutter from operating when in open position.
The optional label taken sensor cannot be used with the cutter.
There is no front door when a cutter is installed.
The cutter can be fitted with an optional tray for collecting cut-
off labels.
To perform the cut-off procedure

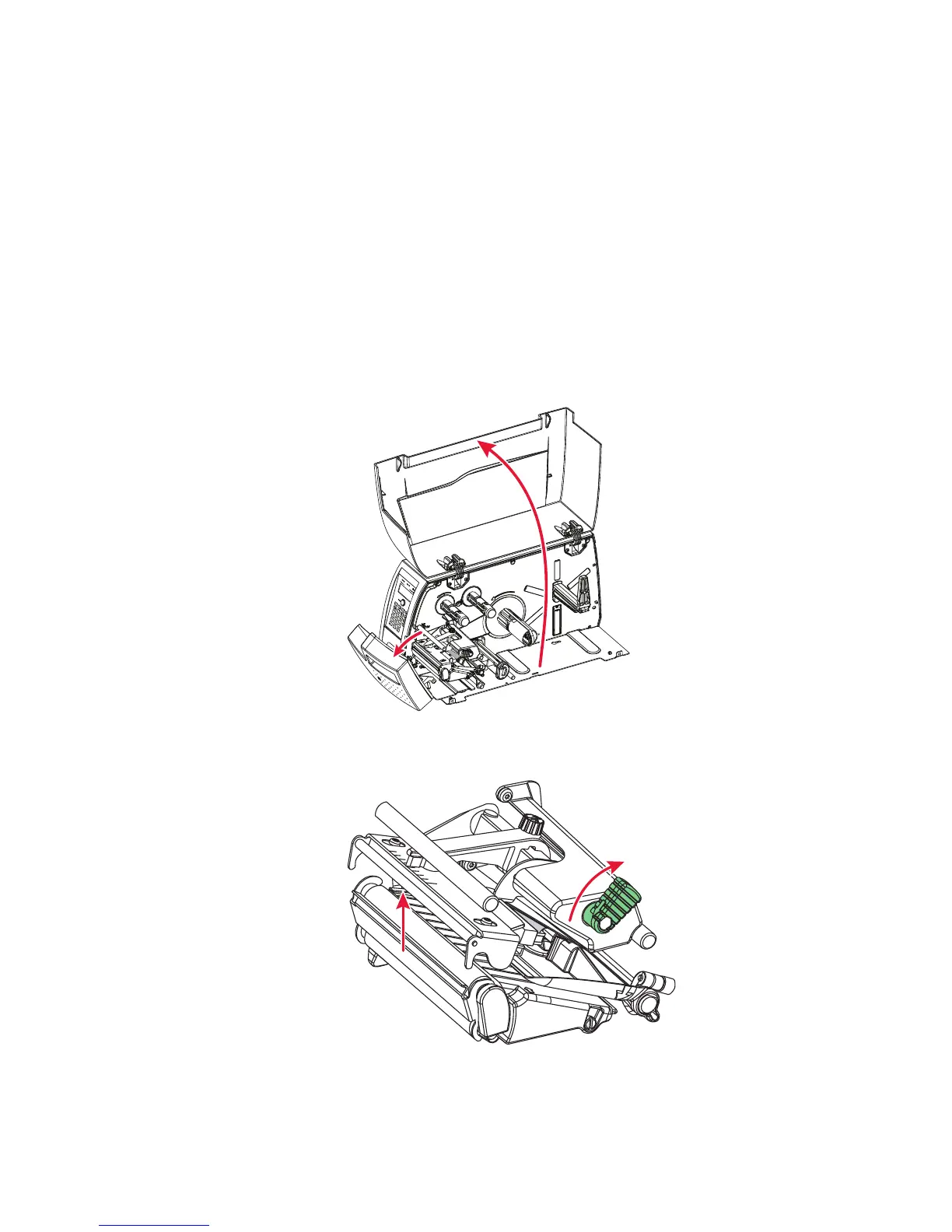

1 Open the cutter and the side door.
2 Turn the printhead lift lever clockwise to raise the printhead.

Table of Contents

Other manuals for Intermec EasyCoder PM4i

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Intermec EasyCoder PM4i and is the answer not in the manual?

Intermec EasyCoder PM4i Specifications

General IconGeneral
Print technologyDirect thermal
Maximum resolution203 x 203 DPI
DisplayLCD
Product colorSilver
Standard interfacesRS-232, USB 2.0
Internal memory16 MB
Media thickness2.5/8.7 mm
Maximum label width114.3 mm
Maximum label length4 m
Maximum roll diameter213 mm
Maximum internal memory1 GB
Supported network protocolsTCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements90 - 265 VAC, 45 - 65Hz
Power consumption (standby)15 W
Power consumption (printing)125 W
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)40 - 104 °F
Operating relative humidity (H-H)20 - 80 %
Weight and Dimensions IconWeight and Dimensions
Depth543 mm
Width298 mm
Height261 mm
Weight13500 g
