Intermec EasyCoder PM4i User Manual

Chapter 4 — Media Load
24 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)

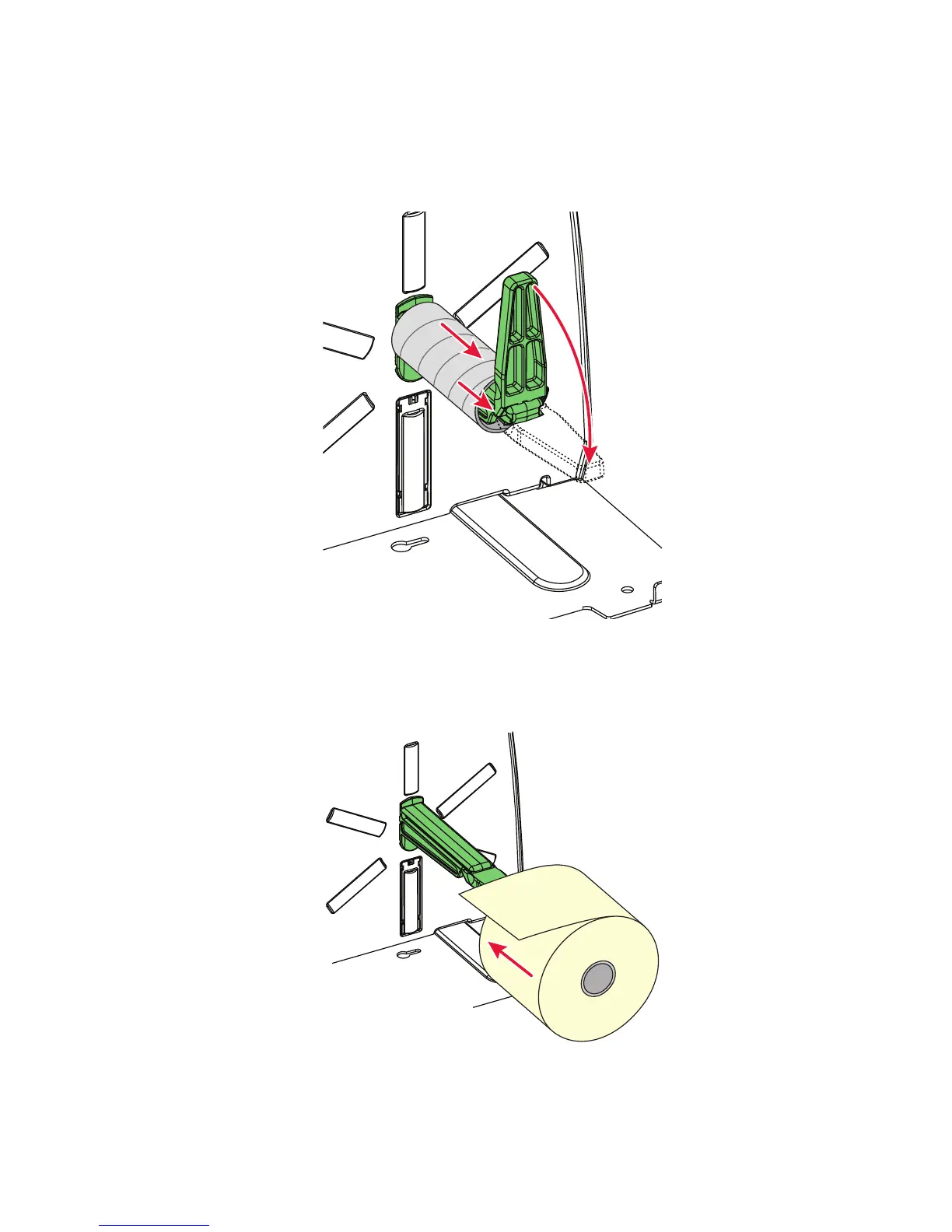

3 Pull out the edge guide as far as it goes and fold it down to a
horizontal position. Remove any empty core from the media
supply roll post.
4 Fit a new roll of media on the supply post. Fold up and adjust
the edge guide so the roll becomes flush with the center
section.

Intermec EasyCoder PM4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.5/8.7 mm
Maximum label width	114.3 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	15 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	543 mm
Width	298 mm
Height	261 mm
Weight	13500 g
