Chapter 4 — Media Load
32 EasyCoder PM4i Printer User’s Guide (Fingerprint Version)

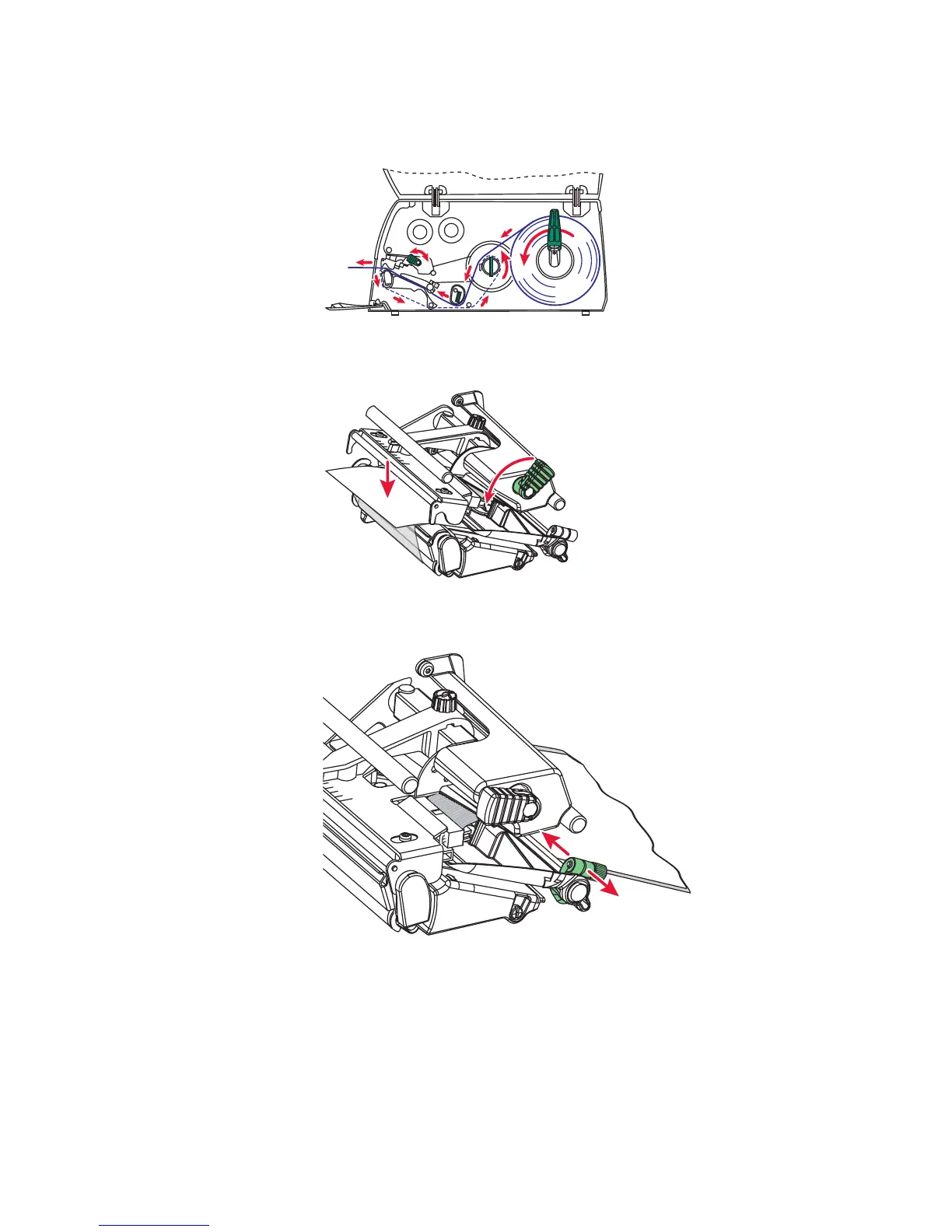

9 This diagram shows the media and liner paths.
10 Turn the printhead lift lever counterclockwise to engage the
printhead.
11 Adjust the position of the green edge guide so the media is
guided with a minimum of play. Lock with the nut.
