Chapter 8 — Print Unit
Adjustment; Platen Roll Belt
Oversized holes allow the position of the stepper motor relative to the
bracket to be adjusted so the tension of the belt does not become too tight,
causing unnecessary wear. Check that the platen roller can be rotated freely
by the belt, which should fl ex just a little when you press it with your
fi nger.

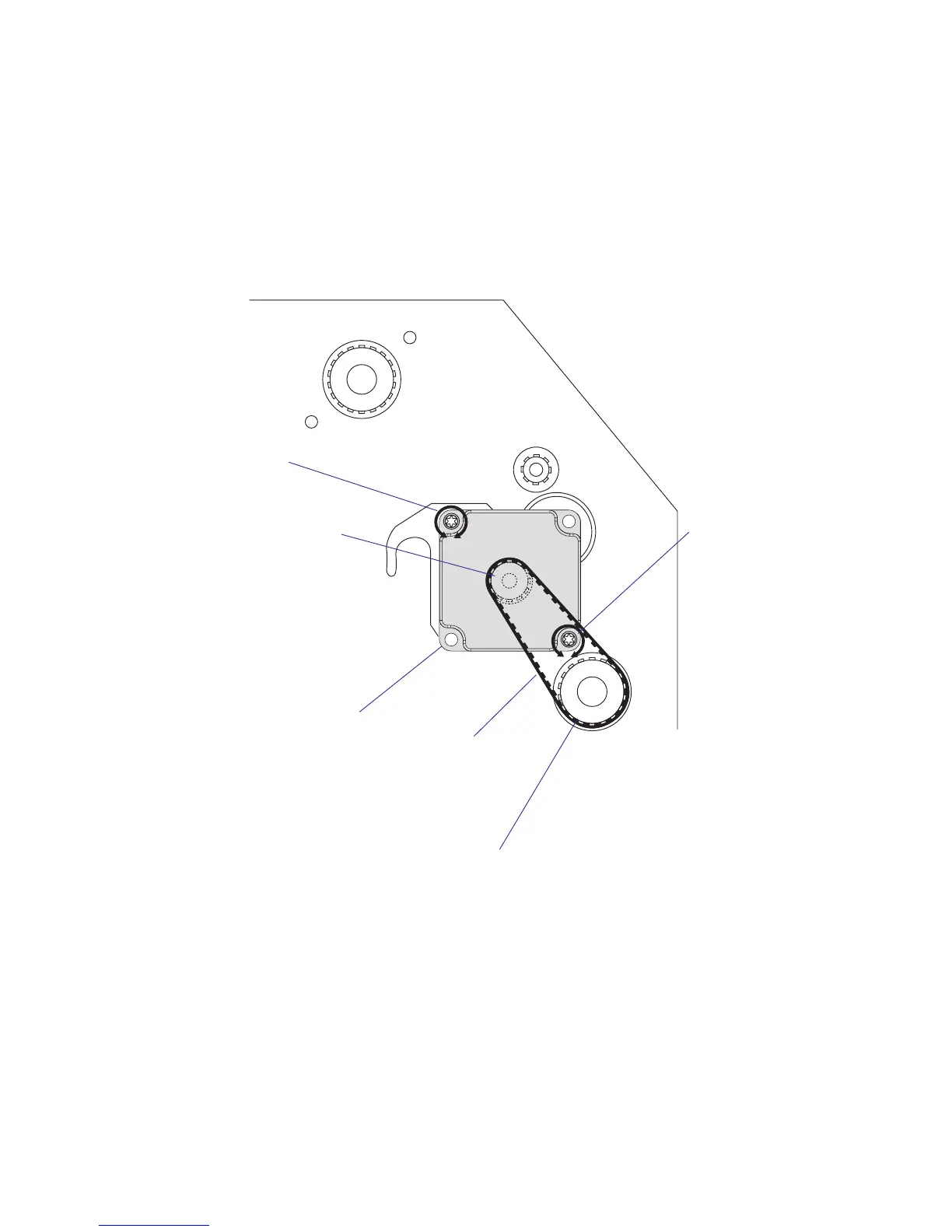

Stepper motor
Stepper motor pulley
Belt
Platen roller pulley
#T20 Torx screw
#T20 Torx screw

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
