Intermec EasyCoder PX6i Service Manual

EasyCoder PX4i and PX6i Service Manual 75
Chapter 8 — Print Unit
Adjustment; Ribbon Rewinder Belt
The belt should be adjusted so it neither jump the cogs nor becomes sub-
ject to unnecessary wear.
Before adjusting this belt, check the tension of the platen roller belt as
described on the previous page.
Slightly loosen the two #T20 Torx screws that hold the fl ange of the
ribbon rewind unit.
Turn the ribbon rewind unit so the belt becomes tight, yet will fl ex slightly
when you press it with a fi nger. Tighten the screws.
Check that the parts can rotate freely and without any unpleasant sound
and that the belt does not jump the cogs when you rotate the ribbon
rewind unit forcefully.
The ribbon return roller should be easy to rotate manually. Once the
motor starts, the belt will be tight and will drive the ribbon assist roller.
If the idler roller starts to squeak, lubricate the inside of the belt with a
small quantity of grease.

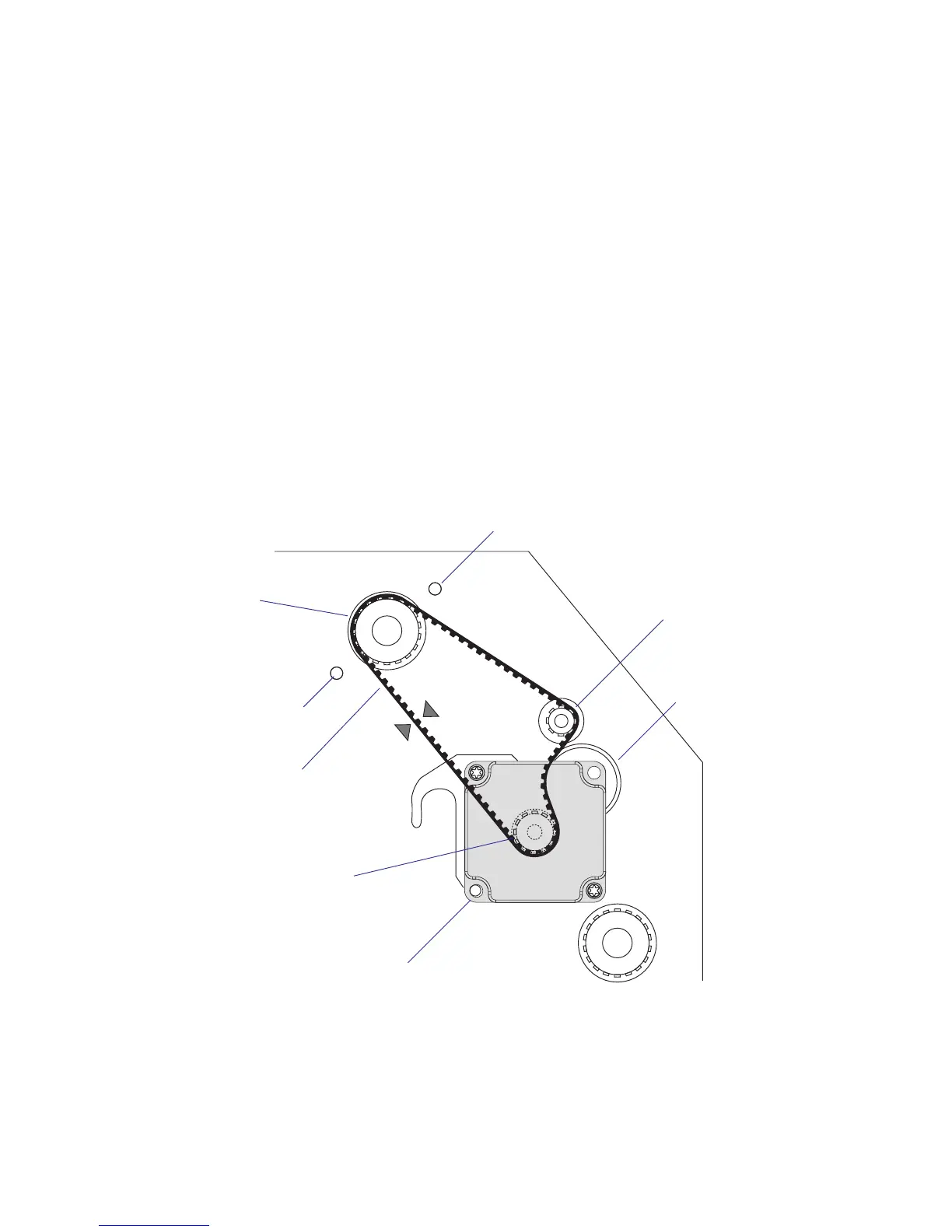

Stepper motor
Stepper motor pulley
Belt
Ribbon rewind
unit pulley
#T20 Torx screw
inside media
compartment
Ribbon assist
roller pulley
Idler roller
#T20 Torx screw
inside media
compartment

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
