Chapter 8 — Print Unit

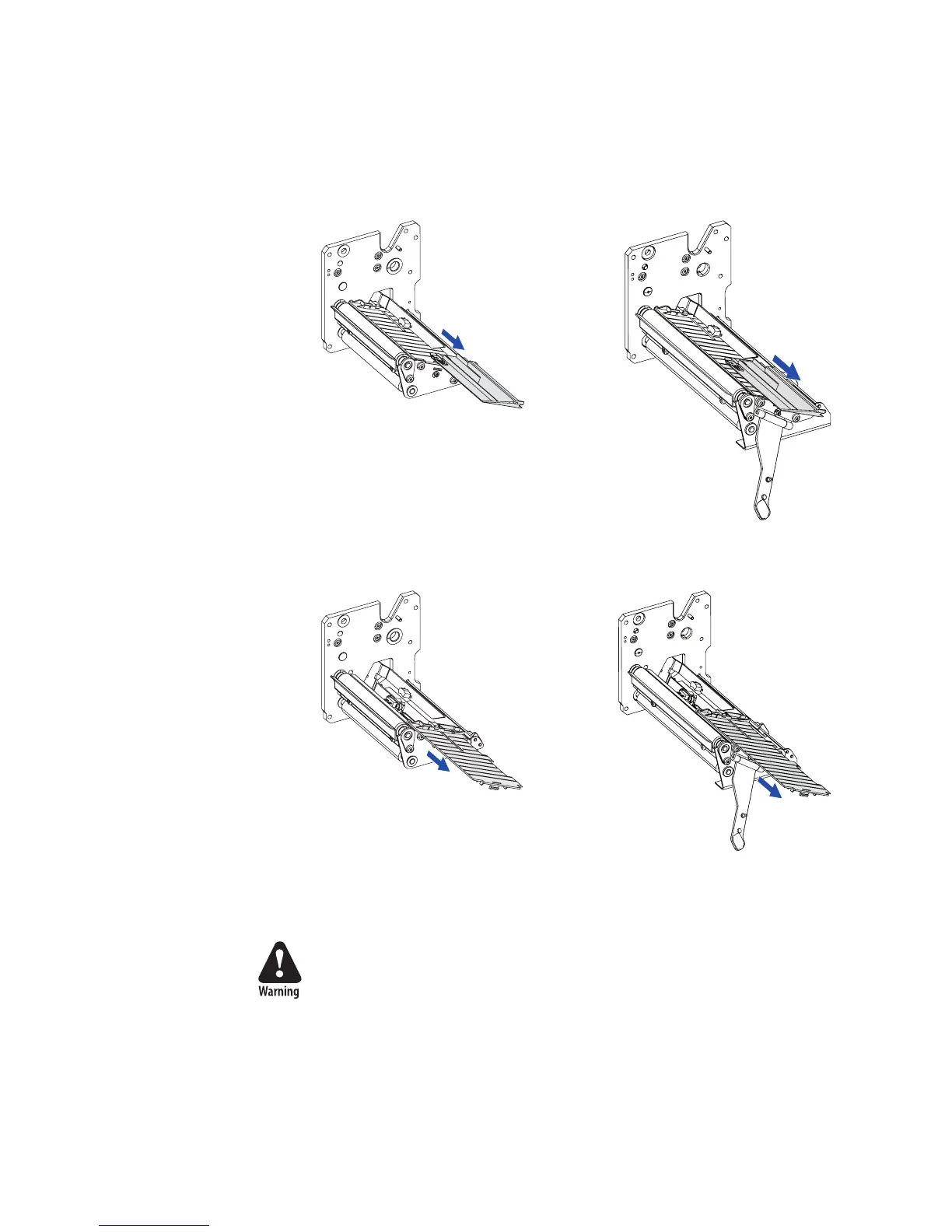

Removing the Guide Plates
The LSS guide plates will need to be removed for occasional cleaning,
replacement and when replacing a defective sensor.
• To remove the upper guide plate, just pull it straight out.
• To remove the lower guide plate, disengage the snap-lock (accessible
through a slot in the lower gable) using for example a screwdriver and
lift the outer end of the guide plate. Then pull it out.
When cleaning the guide plates, use a soft cloth moistened with isopropyl
alcohol. Do not use any other type of chemicals. Blow the sensors free
from dust.
Isopropyl alcohol [(CH
3
)
2
CHOH; CAS 67-63-0] is a highly fl ammable,
moderately toxic, and mildly irritating substance.

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
