LIP-9070 iPKTS User Guide
2
2 Installation
2.1 Overview
The LIP-9070 is shipped with the LIP-9070 phone, handset, pedestal, 6-ft Cat 5 cable terminated in RJ-45
connectors and the Quick Guide. An optional AC/DC adapter is available for use when the network connection

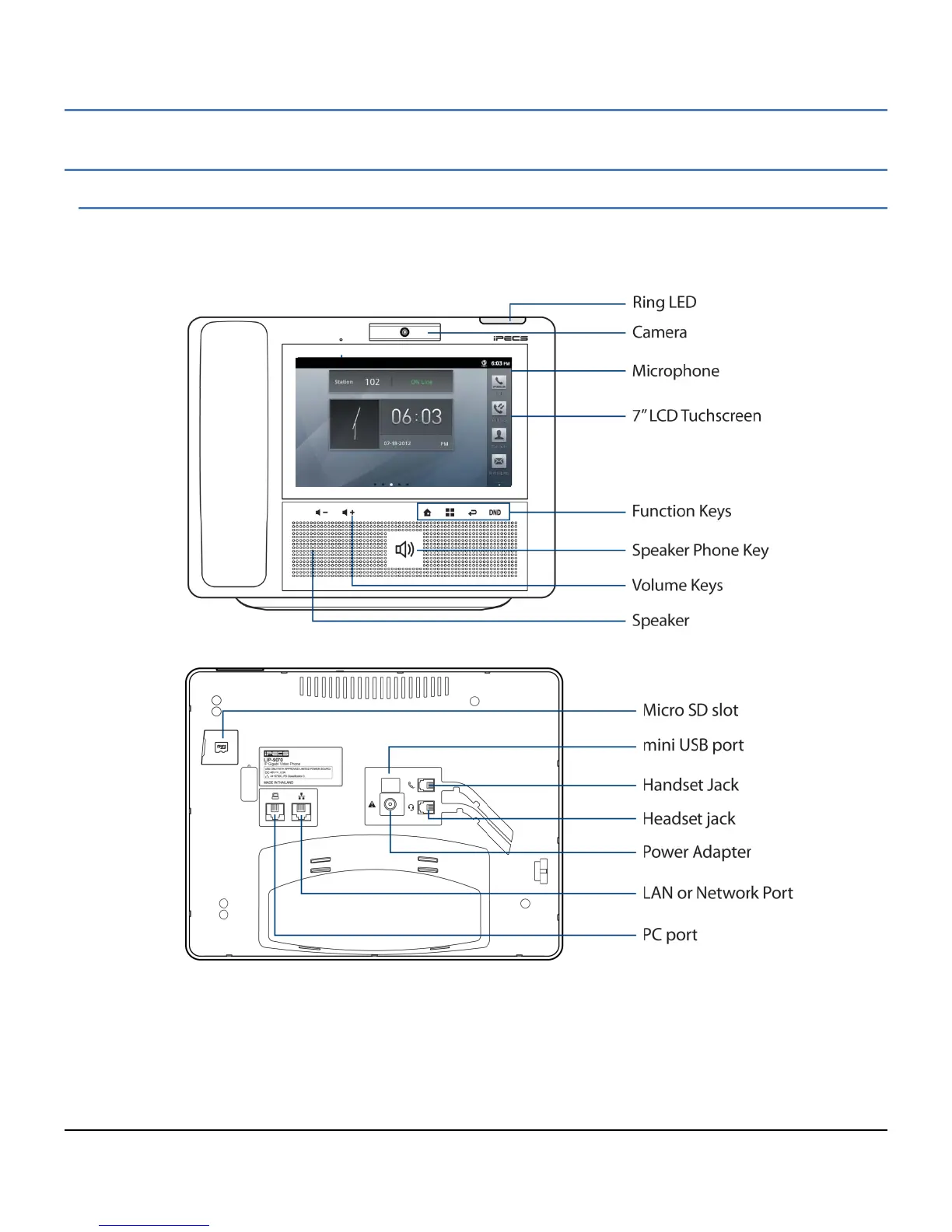

does not support IEEE 802.3af class 3 PoE (Power over Ethernet). The figures below present line drawings of the
front and rear of the LIP-9070 identifying major elements of the user interface and external connections.
