If the Cold store function has been selected in the menu Compr. Control, the compressor will
not start until the measured value is outside the P Band. After this it will regulate normally in
accordance with the set point.
Example of cold store function: Unisab III is set for suction pressure regulation with
Set point (Sp) = -40°C
Neutral zone (Nz) = 4 K
Proportional band (Pb) = 5 K
-40
-38
-33
1
-40
-38
1
-33
Normal
Cold store function
Suct.press (°C/R)
Pb = 5 K
Nz = 4 K
Pb = 5 K
Pb = 5 K
Nz = 4 K
Pb = 5 K
Suct.press (°C/R)
Compressor start
(Just outside Pb)
Compressor start
(Just outside Nz)
1
1
Note: It is not recommended to use the cold store function on screw compressors.
3.5.6 Aux. output

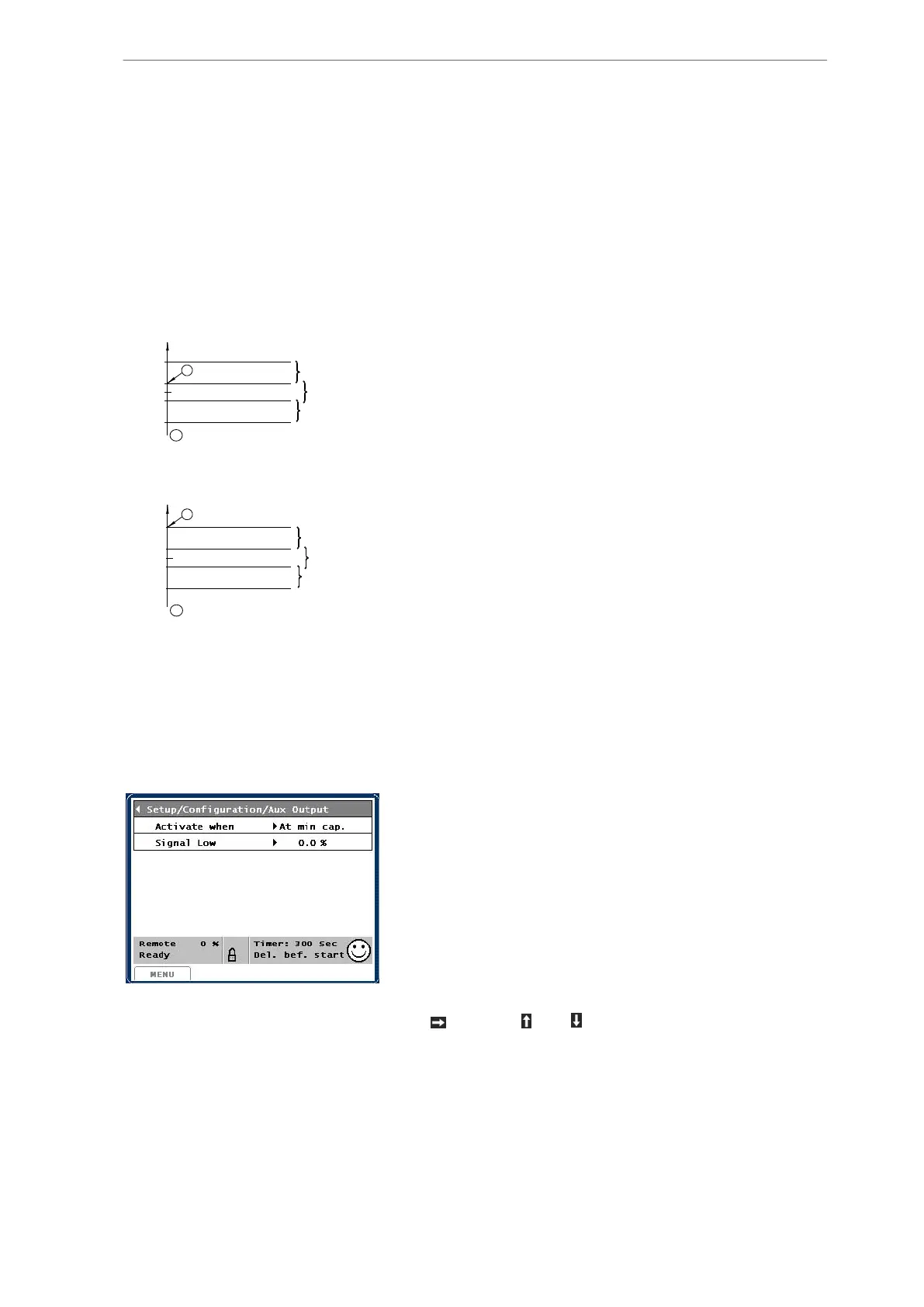

In the menu Configuration/Aux Output the following picture appears:
Place the cursor on Activate when. Press and with and choose between:
• Not defined
• Ready
• At min. cap.
• At max. cap.
• Running
Compressor control and surveillance
124/319
Engineering manual - Unisab III 1.10
001930 en 2014.09
