5.2.2 Software

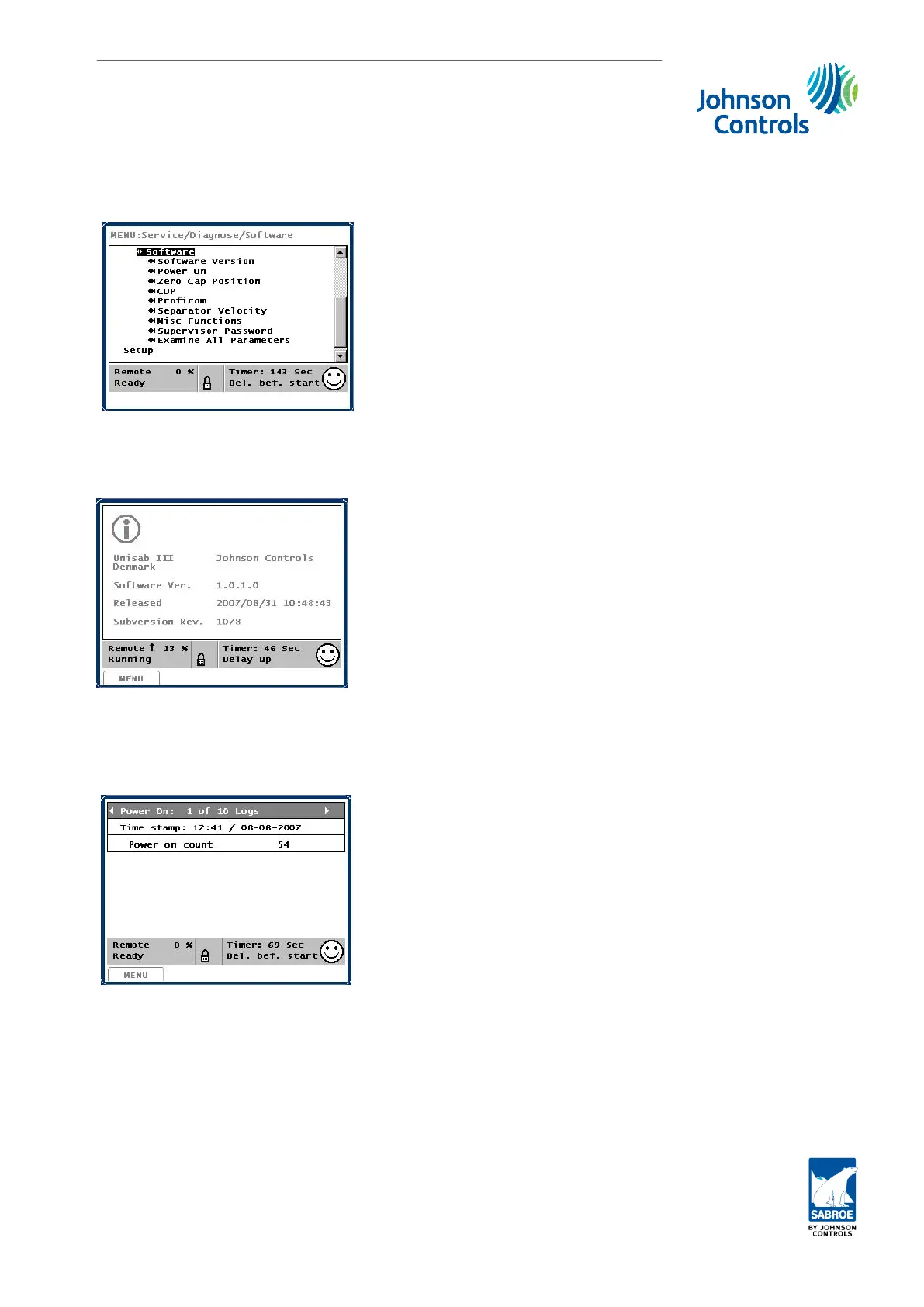

When selecting the menu Diagnosis/Software, the following picture appears:

Software version

This picture shows which program version is running in Unisab III:

Power on

This picture indicates how many times the power supply for Unisab III has been reconnected.

It is used for troubleshooting.

Service

Engineering manual - Unisab III 1.10

001930 en 2014.09

159/319
