Table 32 and Table 33 in subsection 4.1.1. show the numbering of the digital inputs and out-
puts.
Digital outputs

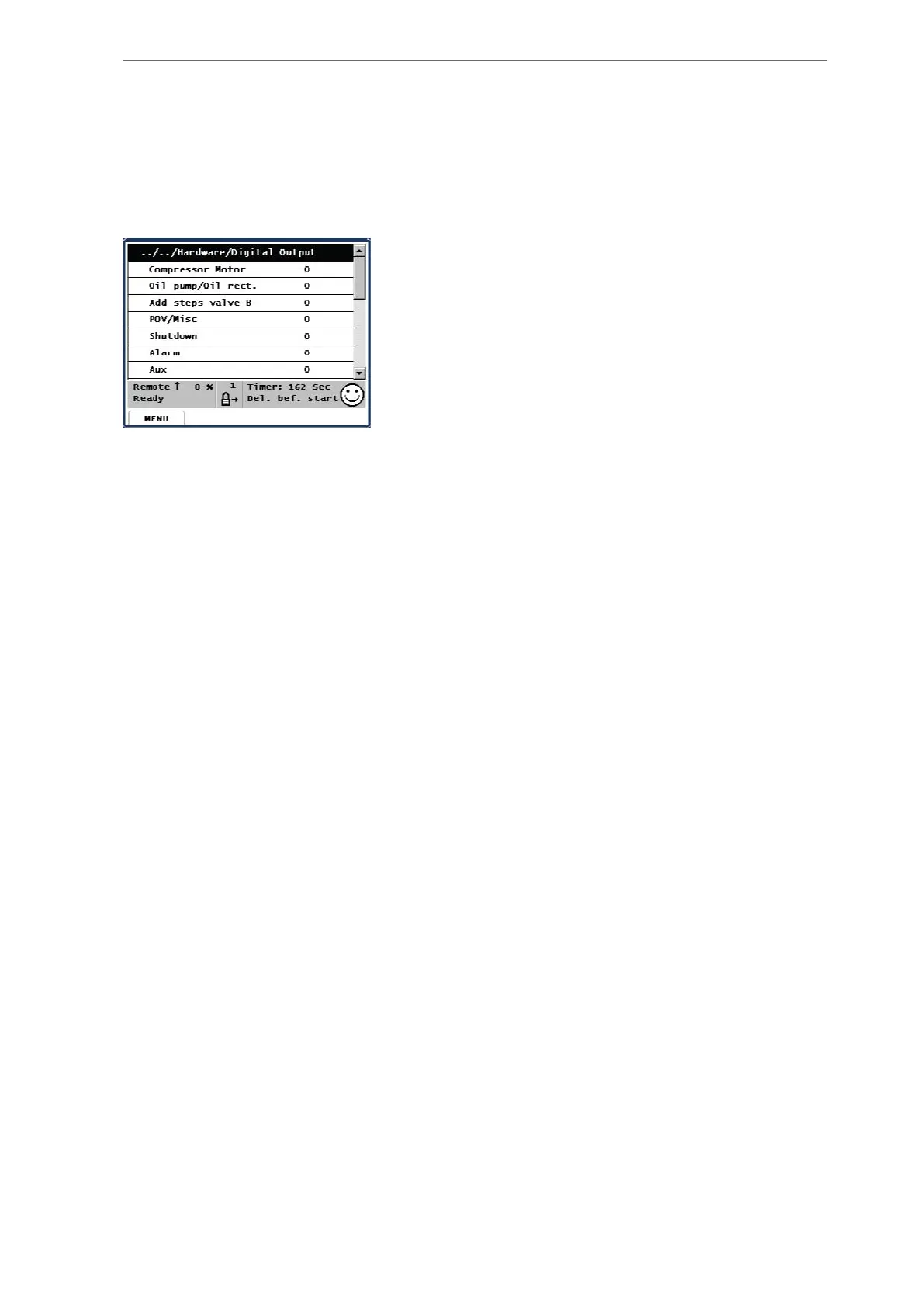

This picture shows the actual state of the digital outputs both at compressor standstill and
during operation.
0 = Output open
1 = Output closed
Table 32 and Table 33 in subsection 4.1.2. show the numbering of the digital inputs and out-
puts.
