5.1.3 Drive
This menu shows the accumulated energy consumption of the compressor.
Note: The Service/Maintenance/Drive menu will only be visible if Drive Com is set to LS or
DA, see subsection 6.4.1. Drive - 7: Drive Com for further information.
For the Danfoss drive, in this example with a SABflex compressor, the energy consumption is
displayed as:
Energy 1 xxx kWh
For the Leroy Somer drive, in this example with a SABCube compressor, the energy consump-
tion is shown as:
Energy 1 xxx kWh
Energy 2 yyy MWh

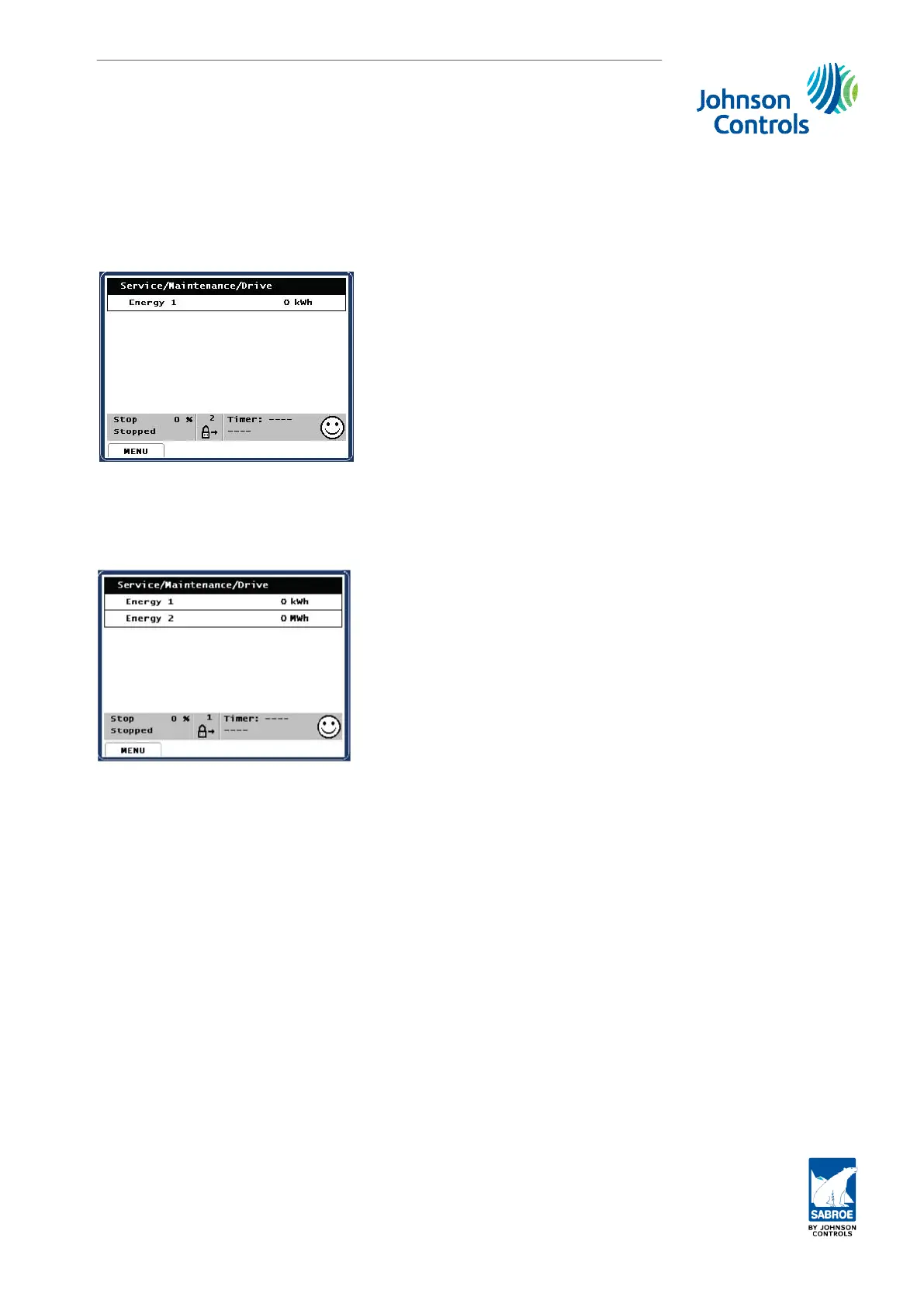

Find the picture in the menu Service/Maintenance/Drive.
Service
Engineering manual - Unisab III 1.10
001930 en 2014.09
151/319
