8.8. U Set configuration tool
8.8.1 U Set configuration software for setup of Unisab III
The new Unisab III configuration software U Set has been developed as a tool to make it eas-
ier to configure Unisab III in the field and to manage and keep track of the Unisab III setup.
The U Set software can be downloaded from the Sabroe site: www.sabroe.com. Check that
the U Set version number corresponds to the Unisab III software version. The version number
is part of the U Set file name, e.g. U Set 1.09.0(#21).xls means that this is U Set corresponds
to Unisab III software version 1.0.9.0, with U Set sub revision number #21.
To start the U Set program (Excel), click the Enable Macros button to activate the U Set func-
tions.
Excel 2007: Office button/Excel options/Trust Center/Trust Center settings/Macro Settings>Enable all macros
(OR Disable all macros WITH notification) (Restart Excel).
Excel 2003: Tools/Macro/Security/Security Level <= Medium (Restart Excel)

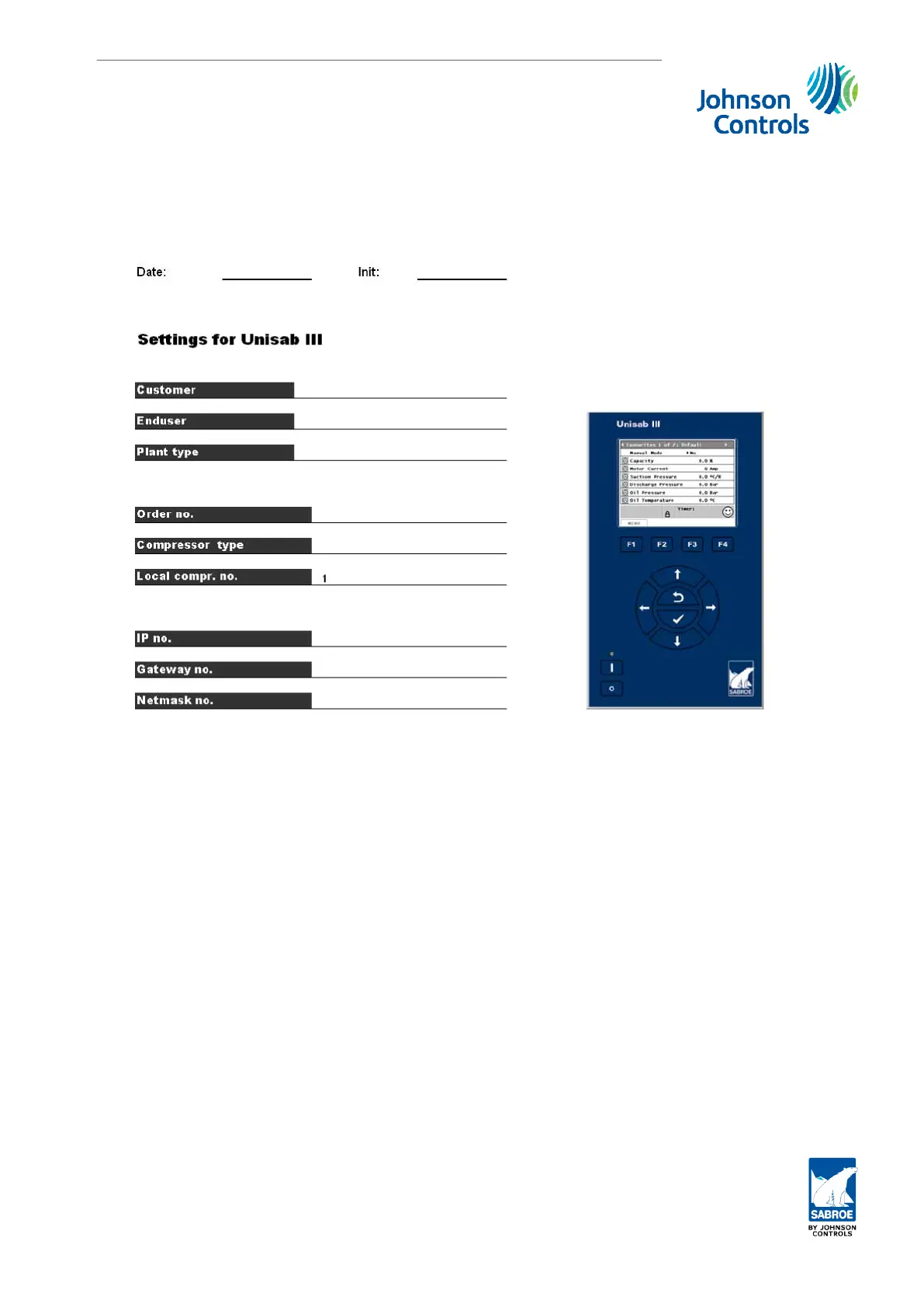

Handle and change settings
When the U Set program is running, it is possible to import and modify an already existing
configuration or setup file and then export it. First you may want to change the language. In
the language drop down menu in the top of U Set you can choose any one of the Unisab III
languages. The top menu and the help function will remain in English.
The following files can be imported and exported:
• Configuration.xml - this file contains the Unisab III configuration and calibration val-
ues
• AnalogInput.xml - this file contains shutdown/alarm limits and set points
• PIDSettings.xml - this file contains PID regulator parameters, like Ti, Td and Ts
Unisab III (boot) and communication set-up
Engineering manual - Unisab III 1.10
001930 en 2014.09
273/319
