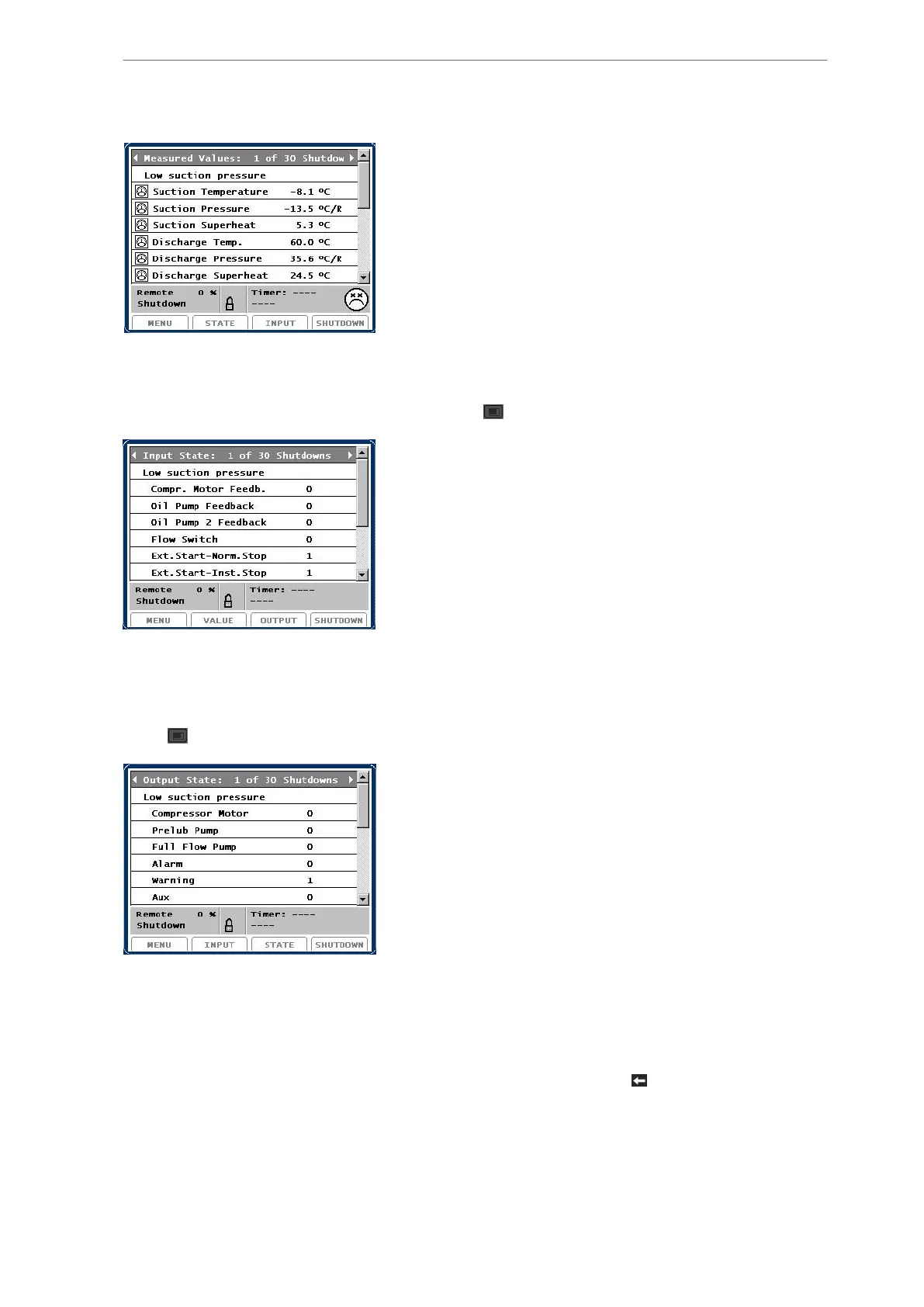

This picture shows all the measuring values at the time of the above shutdown. Note that not
all values are relevant for all compressor types. If a different shutdown situation is selected, a
similar set of measuring values will appear. Use
F3
/INPUT to get to the following picture:
This picture shows the state of all digital inputs connected to the selected shutdown.
0 = the input has been open
1 = the input has been closed.
Press
F3
/OUTPUT to get to the following picture:
Here the state of all digital outputs connected to the selected shutdown can be read.
0 = the output has been open
1 = the output has been activated.
Table 32 to Table 34 below show the numbering of inputs/outputs on screw and reciprocating
compressors respectively. Return to the previous menu by pressing .
History
142/319
Engineering manual - Unisab III 1.10
001930 en 2014.09
