Juniper EX4600 Hardware Guide

SEE ALSO
Connecng DC Power to an EX4600 Switch | 81
DC Power Supply LEDs in EX4600 Switches
Figure 21 on page 37 shows the locaon of the LEDs on the DC power supply.

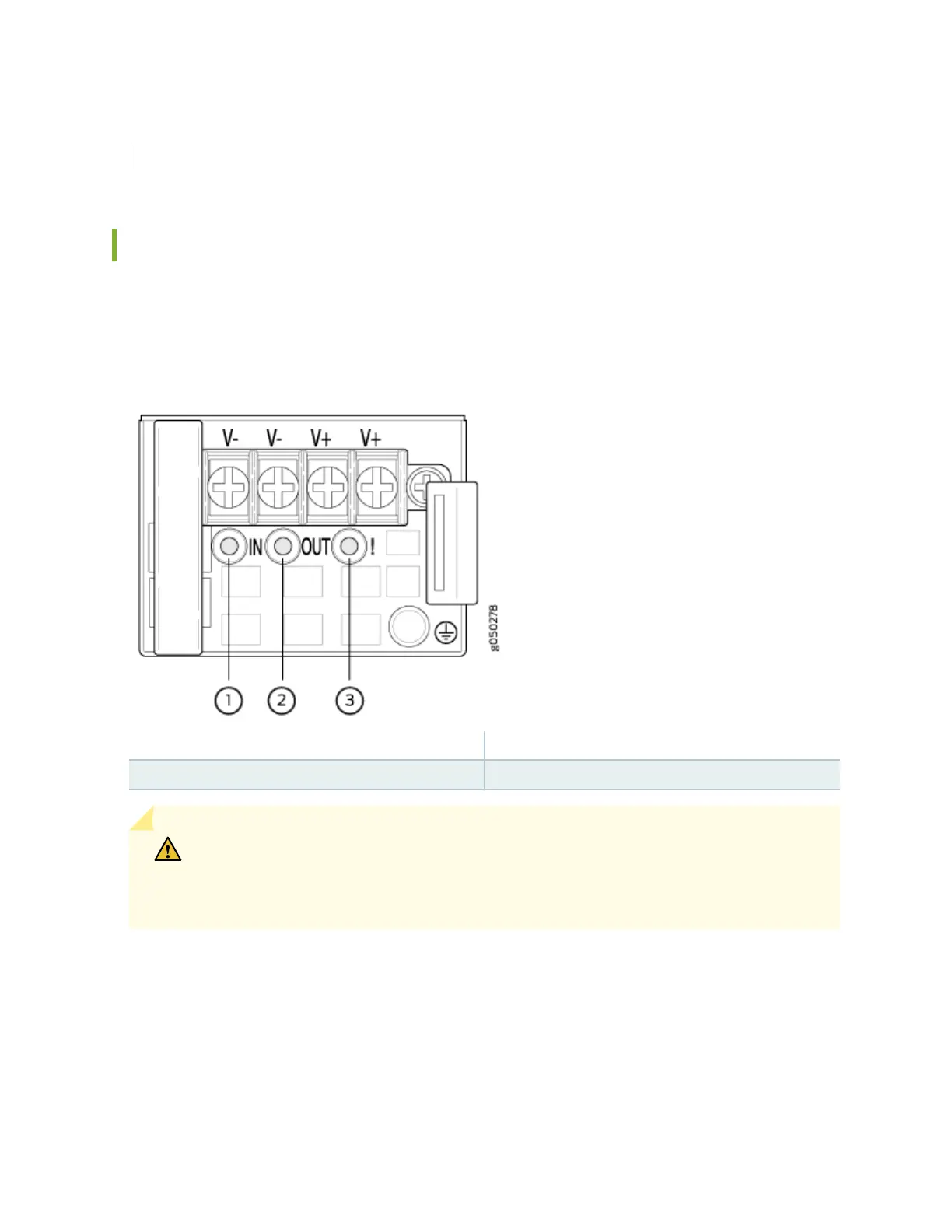

Figure 21: DC Power Supply Faceplate on an EX4600 Switch
1—
Input LED
3—
Fault LED
2—
Output LED
CAUTION: The V+ terminals are shunted internally together, as are the V- terminals.
The same polarity terminal can be wired together from the same source to provide an
addional current path in a higher power chassis. Do not connect the terminals to
dierent sources.
Table 16 on page 38 describes the LEDs on the DC power supplies.
37

Juniper EX4600 Specifications

General

Rack Units	1U
Junos OS	Yes
Product Series	EX Series
DRAM	8 GB
Flash Memory	16 GB
Ports	4 x 40GbE QSFP+ ports
Power Supply	Dual, hot-swappable
MAC Address Table Size	288, 000
Jumbo Frames	9216 bytes
Input Voltage	100-240 V AC
Operating Temperature	0°C to 40°C
Memory	8 GB
Storage	16 GB
