Juniper EX4600 Hardware Guide

Connecng the EX4600 to Management Devices
IN THIS SECTION
Connect a Device to a Network for Out-of-Band Management | 87
Connect a Device to a Management Console Using an RJ-45 Connector | 88
Connecng EX4600 Switches in a Virtual Chassis | 89
Connect a Device to a Network for Out-of-Band Management
Ensure that you have an Ethernet cable that has an RJ-45 connector at either end. Figure 32 on page
87 shows the RJ-45 connector of the Ethernet cable supplied with the device.

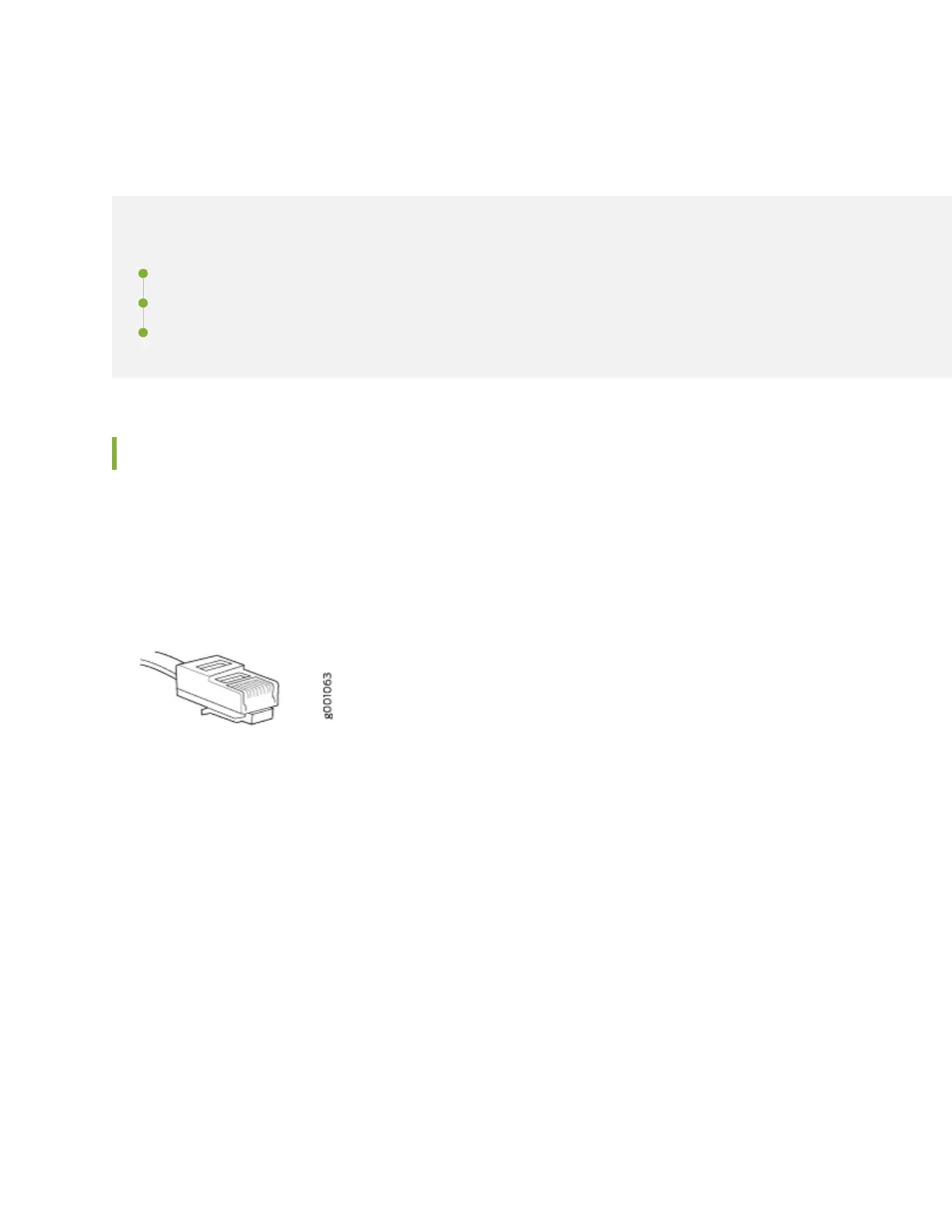

Figure 32: RJ-45 Connector on an Ethernet Cable
You can monitor and manage these devices by using a dedicated management channel. Each device has
a management port to which you can connect an Ethernet cable with an RJ-45 connector. Use the
management port to connect the device to the management device.
To connect a device to a network for out-of-band management (see Figure 33 on page 88):
1. Connect one end of the Ethernet cable to the management port on the device.
87

Juniper EX4600 Specifications

General

Rack Units	1U
Junos OS	Yes
Product Series	EX Series
DRAM	8 GB
Flash Memory	16 GB
Ports	4 x 40GbE QSFP+ ports
Power Supply	Dual, hot-swappable
MAC Address Table Size	288, 000
Jumbo Frames	9216 bytes
Input Voltage	100-240 V AC
Operating Temperature	0°C to 40°C
Memory	8 GB
Storage	16 GB
