XPIM—Can be installed only in the 10-Gigabit GPIM slot 3 or in the 20-Gigabit GPIM slot 6 on the front
panel of the SRX550 High Memory Services Gateway.
The GPIMs can have one of the following configurations:
•
Single-high, single-wide LAN switch GPIM that uses one slot
•
Double-high, single-wide LAN switch GPIM that uses two standard slots vertically
NOTE: GPIMs are not supported on the SRX300 Series devices.
Table 4 on page 21 lists the GPIMs and XPIMs and their respective model numbers.
Table 4: SRX550 High Memory Services Gateway GPIM/XPIM Model Numbers
Model NumberGPIM or XPIM
SRX-GP-8SFP8-Port Gigabit Ethernet SFP XPIM
SRX-GP-16GE-POE16-Port Gigabit Ethernet XPIM (with PoE)

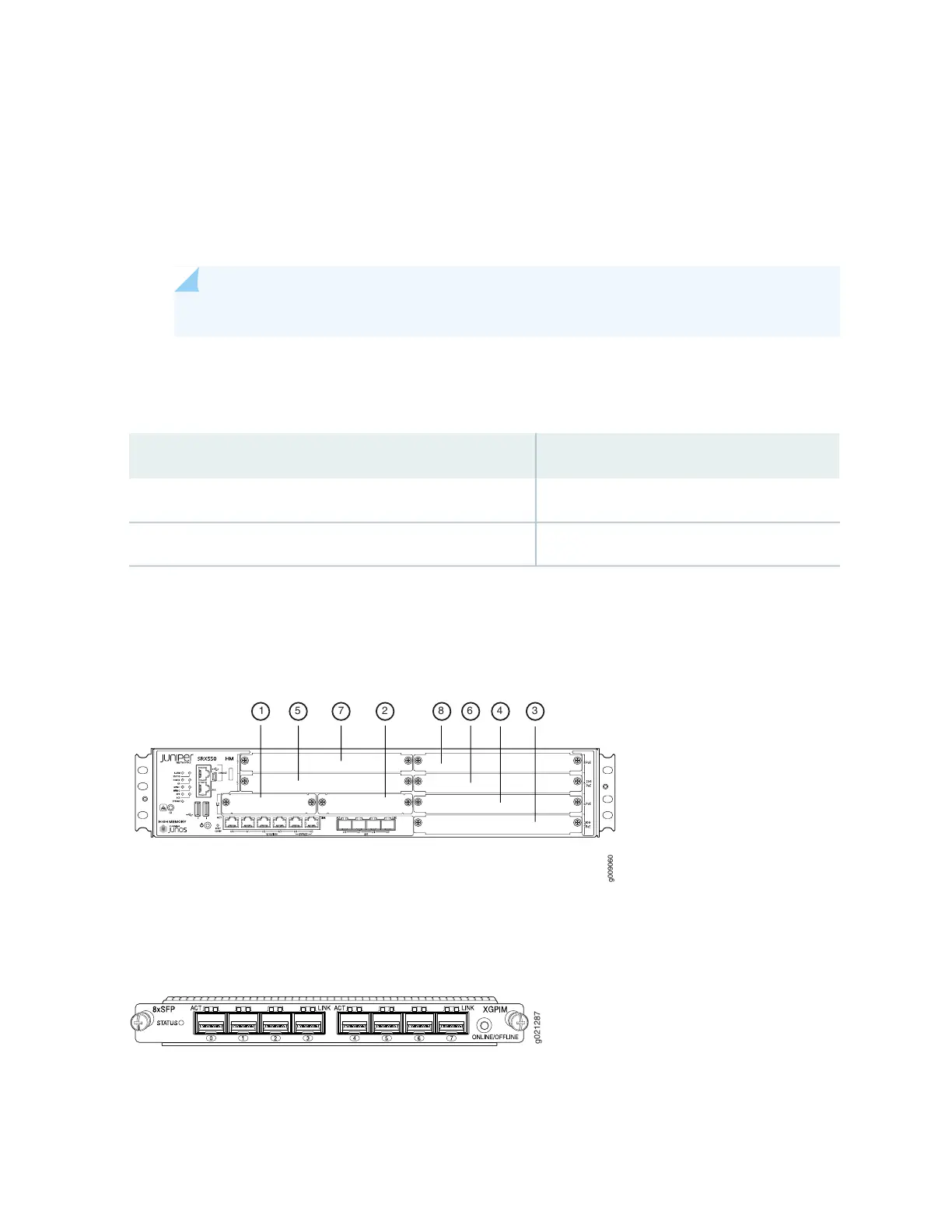

Figure 1 on page 21 shows how the slots on the front panel of the SRX550 High Memory Services Gateway
are numbered. Slots 1 and 2 are for Mini-PIMs, and slots 3 through 8 are for GPIMs.
Figure 1: SRX550 High Memory Services Gateway Slot Numbers
g009060
1 5 7 2 8 46 3
Figure 2 on page 21 and Figure 3 on page 22 show the form factors for the services gateway GPIMs.
Figure 2: Example of a Standard GPIM (Installs in One Standard Slot)
g021287
21
