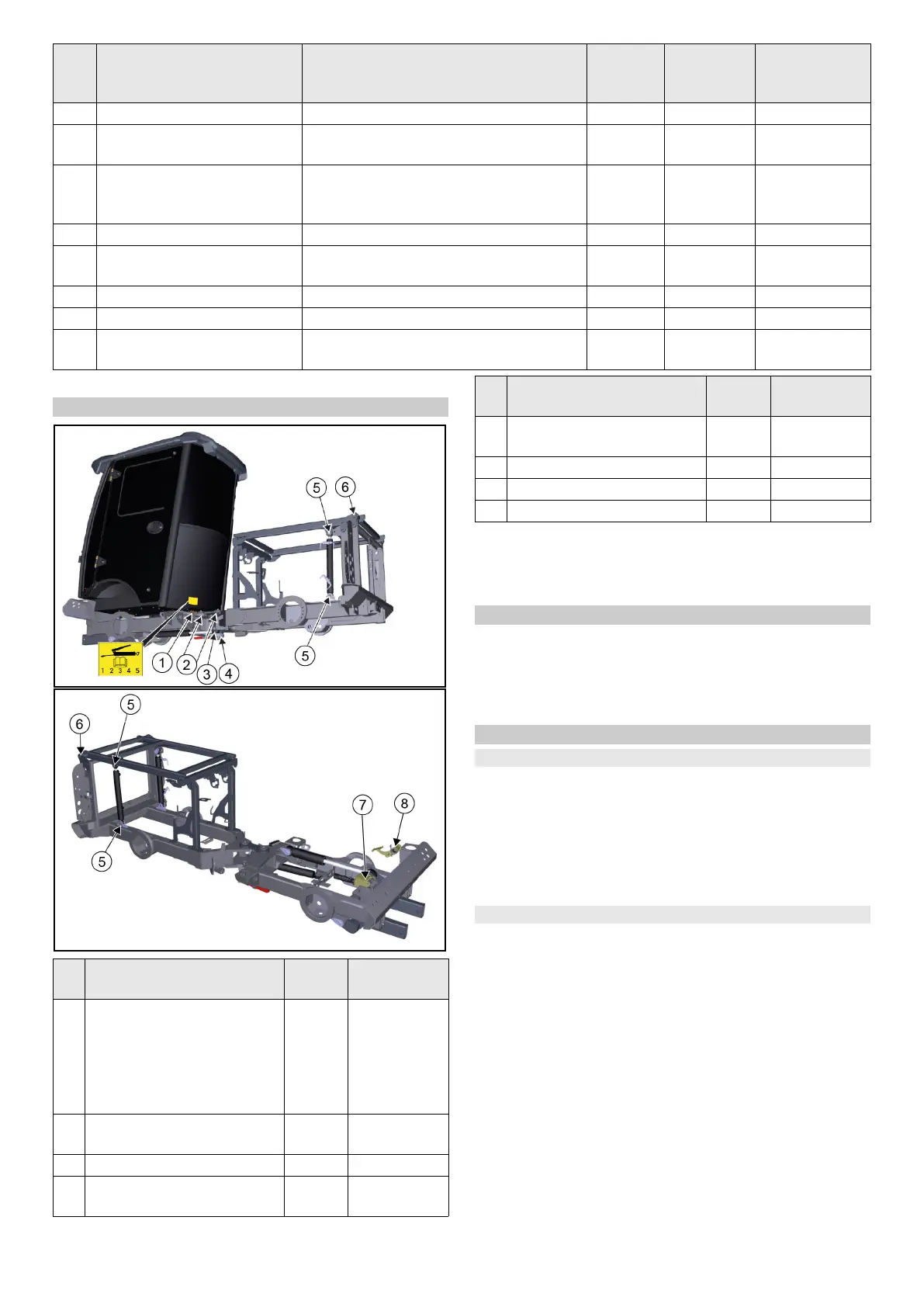

12.5 Lubrication plan
1 Use high-grade multi-purpose grease.
2 Lubricate the grease nipples in accordance with the lu-
bricating intervals (Table) using a grease gun.
3 Keep the V-belt clean and free of grease.
12.6 Preparing for maintenance work
1. Park the vehicle on a level surface.
2. Set the engine speed to idle mode.
3. Switch off the ignition and remove the ignition key.
4. Secure the vehicle against rolling away.
5. Set the main switch to position "0".
12.7 Maintenance work
12.7.1Raising the attachment frame
Note
The raised attachment frame is automatically secured by a
special valve on the vehicle side. It is not necessary to se-
cure it manually.
1. Set the switchover valve to the attachment frame posi-
tion.
2. Completely raise the attachment frame.
12.7.2Panels / covers
몇 WARNING
Risk of burns from hot surfaces
Allow the vehicle to cool down sufficiently prior to removing
the panels / covers.
Note
In order to carry out various maintenance work, the
panels / covers have to be removed.
19 Warning sticker Check the legibility, replace if necessary. X
20 Dust caps and covers for hy-
draulics
Check, and replace any missing or dam-
aged ones.
X
21 Hoses and cable clamps Visual inspection of all hydraulic connec-
tions that they are correctly fitted and
leakproof.
XX
22 Fuel lines and connections Check for leaks. X X
23 Bowden cables and moving
parts
Check for freedom of movement. X
24 Alternator Clean (not with high-pressure cleaner) X
25 Electrical cables Check for damage. X
26 Bearings / lubrication points Lubricate, see chapter 12.5 Lubrication
plan
X
Pos. Assembly Activity Daily Weekly every 500
hours
or once-a-year*
Lubrication point Quanti-
ty
Interval
1 Central lubricating strip for
Slew bearing
Lifting cylinder for front
power lift
Front bearing for steering
cylinder
1 Daily
2 Articulated joint at centre of
vehicle
2 Daily
3 Steering cylinder 2 Daily
4 Lower bearing for articulated
joint
1 Daily
5 Lifting cylinder for lifting plat-
form
4 Every 25 h
6 Slew bearing lifting platform 2 Daily
7 Accelerator 1 Every 100 h
8 Brake pedal deflection lever 1 Every 100 h
Lubrication point Quanti-
ty
Interval
