6. Engine Removal;In
spection & Installation
6-39
5.6

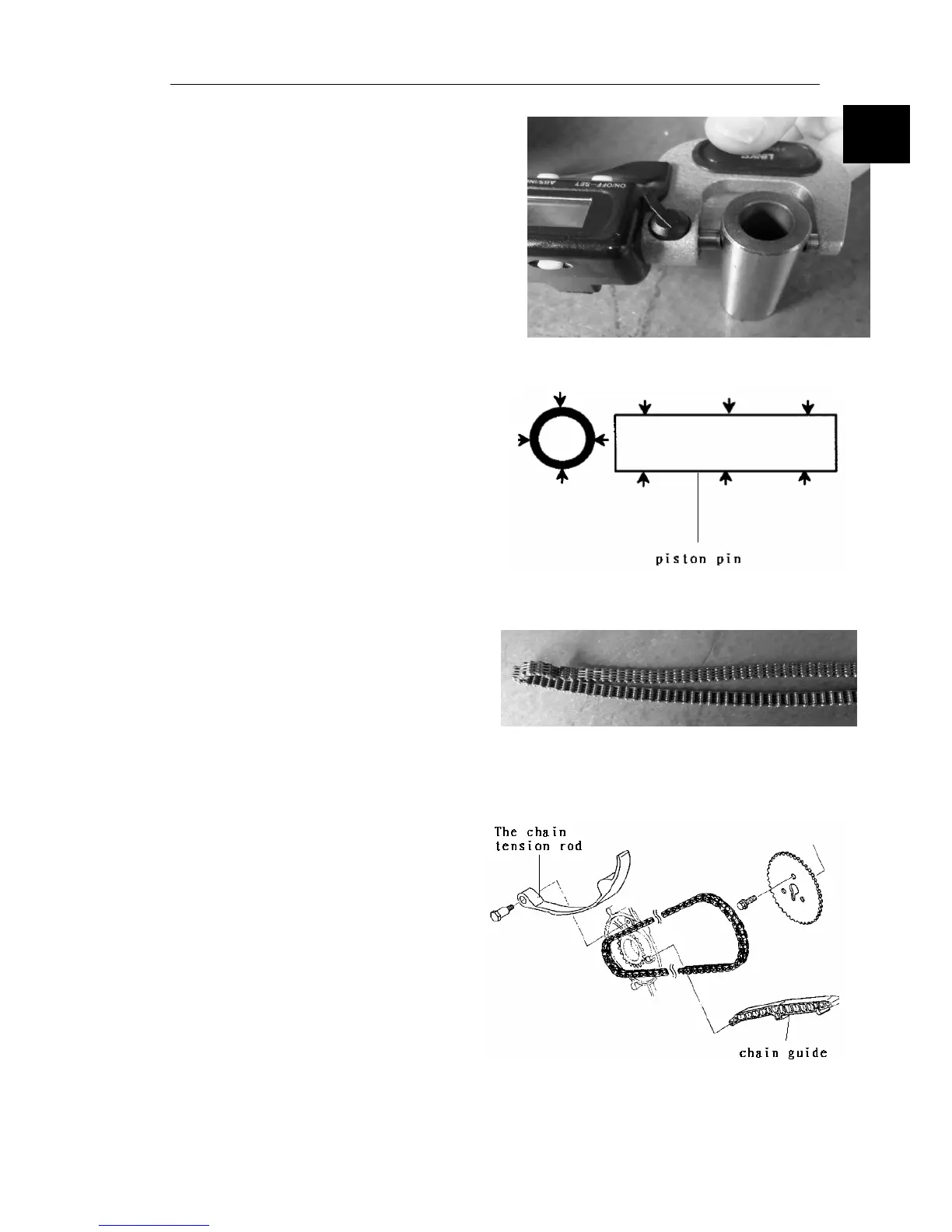

The piston pin examination
1
As shown in the piston pin and the piston and
connecting rod joints three parts along the X and Y
directions measuring the outer diameter of piston pin.
● If more than specification limits, please the piston,
piston, piston pin as a whole to change.
2. The piston pin outside diameter standards
22.998-22.994 mm
Timing chain examination
5.7 The chain guide a and the chain of tension
bar examination
1. The chain tension rod and guide a and chain
engage face worn grooves, the replacement
of the stem guide a tension.
