2. V
ehicle body，Muffler
2-13

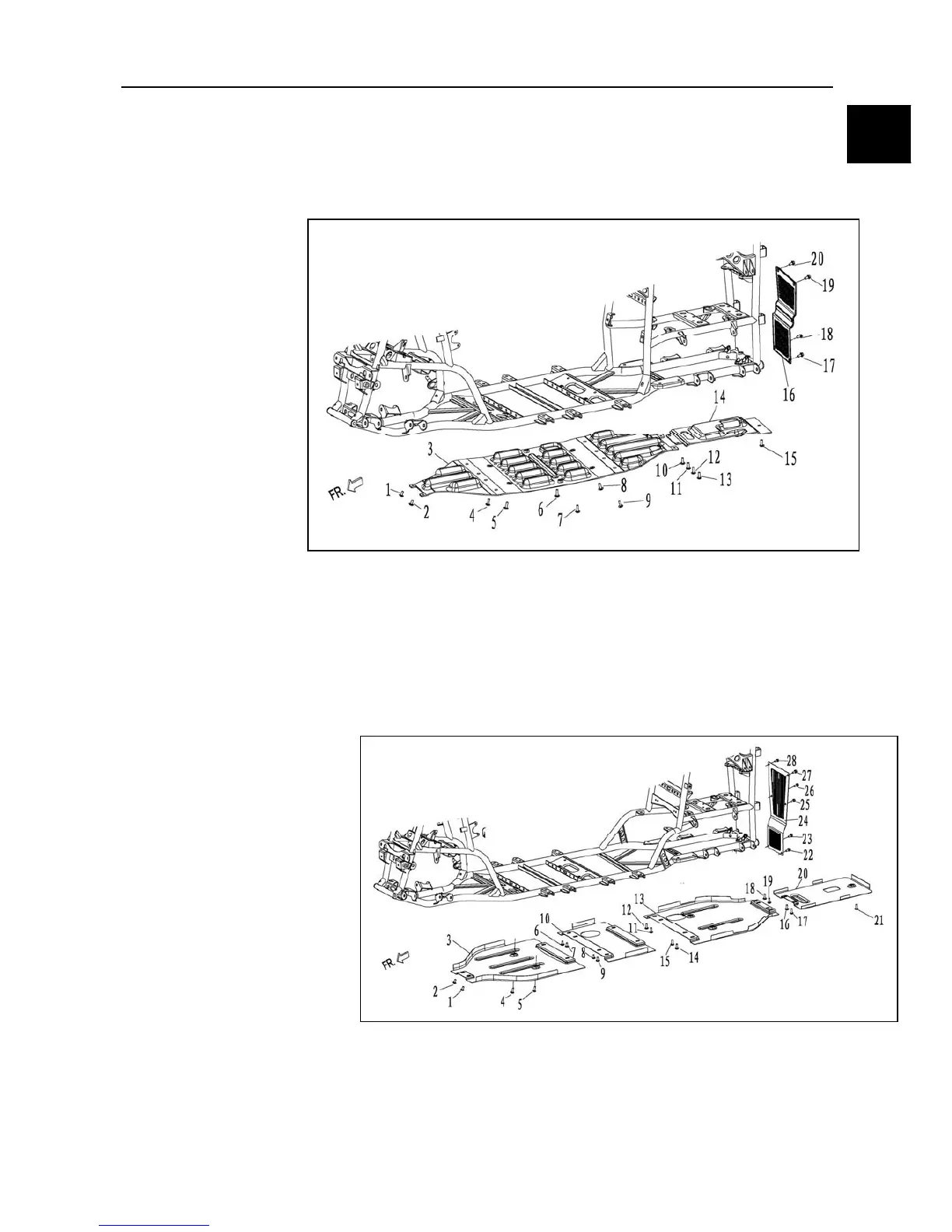

GUARD PLATE (PLASTIC) DISASSEMBL
Y /INSTALLATION
Note: Guard plate,
middle, guard plate, rear and guard plate, tail are located at the bottom of vehicle. The
maintenance person should have to work under the vehicle bottom when disassembling the above parts. For
safety purpose, make sure that the vehicle should be firmly parked.
1. Bolt 1
2. Bolt 2
3. Guard plat
e, middle
4. Bolt 3
5. Bolt 4
6. Bolt5
7. Bolt6
8. Bolt7
9. Bolt8
10. Bolt
9
11. Bolt10
12. Bolt11
13. Bolt12
14. Guard plate, rear
15. Bolt13
16. Guard plate, tail
17. Bolt14 18. Bolt 15 19. Bolt16 20. Bolt17
GUARD PLATE (I
RON) DISASSEMBLY /INSTALLATION
Note: Guard plate,
middle (front), Guard plate, middle, Guard plate, middle (rear), guard plate, rear and
guard plate, tail are located at the bottom of vehicle. The maintenance person should have to work under the
vehicle bottom when disassembling the above parts. For safety purpose, make sure that the vehicle should be
firmly parked.
1. Bolt 1
2. Bolt 2
3. Guard plat
e, middle (front)
4. Bolt 3
5. Bolt 4
6. Bolt5
7. Bolt6
8. Bolt7
9. Bolt8
10.Guard plat
e, middle(500ATV-2)
11. Bolt9
12. Bolt10
13. Guard plate, middle (rear)
14. Bolt 11
15. Bolt 12
16. Bolt 13 17. Bolt 14 18. Bolt 15 19. Bolt 16 20. Guard plate, rear
21. Bolt 17 22. Bolt 18 23. Bolt 19 24. Guard plate, tail 25. Bolt 20
26. Bolt 21 27. Bolt 22 28. Bolt 23
2
