5. REMOV
AL OF ENGINE, TRANSMISSION SYSTEM AND GEARSHIFT
5-2
Disassembly Engine
Re
move front and rear rack.(→Chapter 2).
Remove front and rear bumper.(→Chapter 2)
Remove plastic parts.(→Chapter 2)
Remove air filter.
Remove exhaust pipe and muffler（→Chapter 2）
Remove hoop .

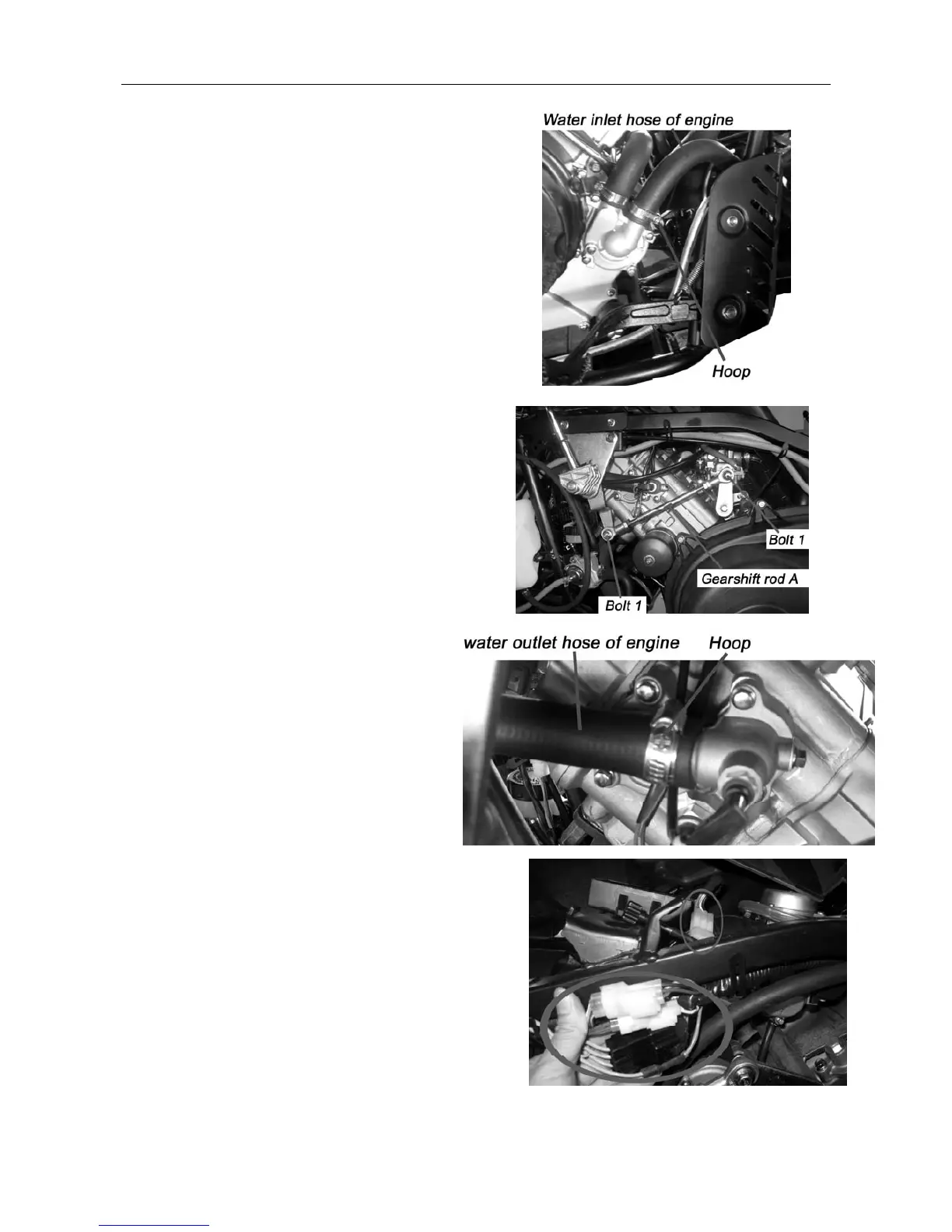

Remove water inlet hose of engine
Remove bolt 1
Remove gear shift rod A.
Remove hoop.
Remove water outlet hose of engine
Remove connectors of magneto; connector of CDI,
pickup coil connector, magneto connector, connector
of gear sensor, connector of cathode as illustrated on
the right.
