KEEWAY 500ATV - Rear Left & Right Wheel Assembly; Fuel Tank

2. V
ehicle body，Muffler
2-1
1

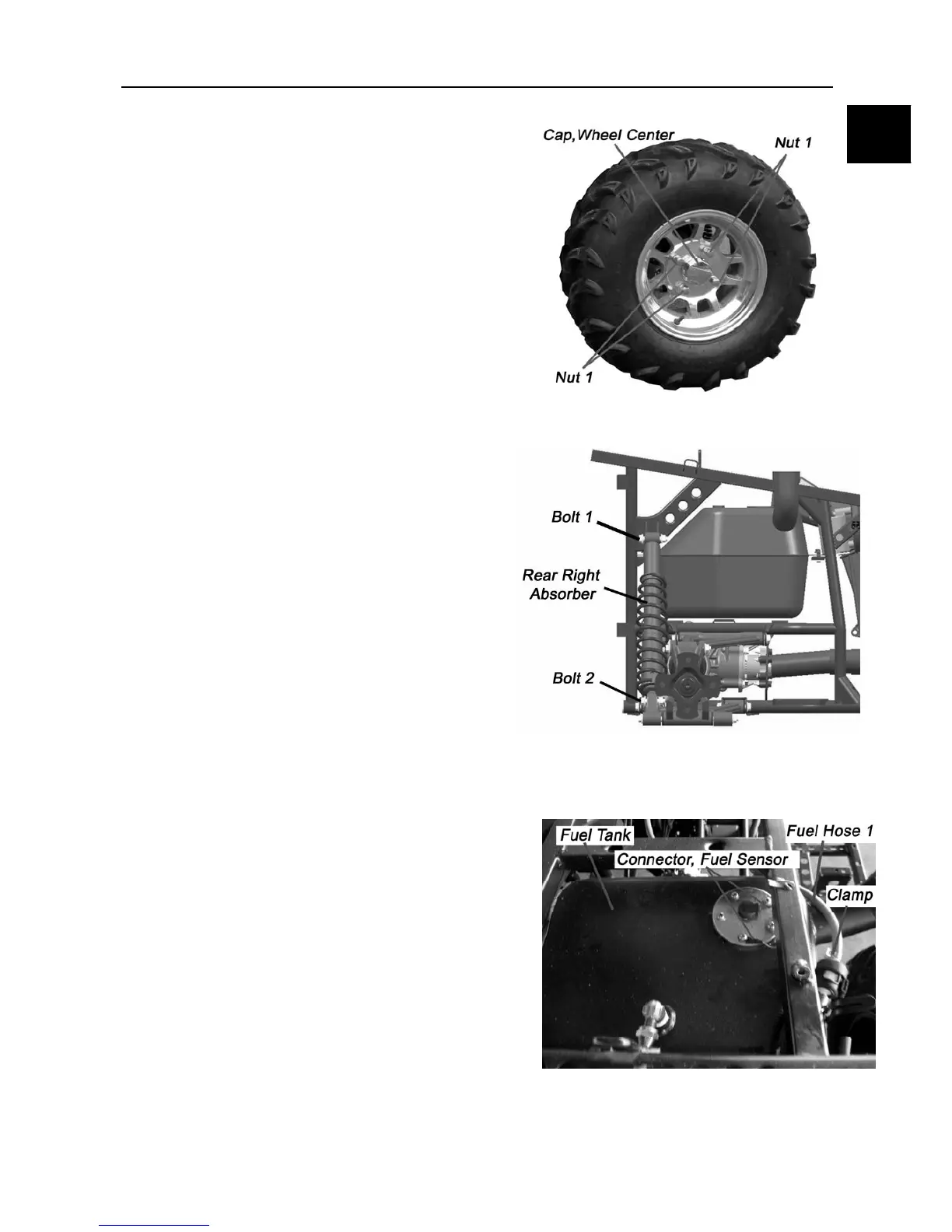

REAR LEFT & RIGHT WHEEL ASSEMBLY
Remove:
Re
move cap of wheel center(rubber)
Remove nut 1
Remove rear left & right wheel assembly
Installation
Reverse the rem
oval procedure of installation
Fuel Tank
Warning: Gasoline is highly flammable, therefor
e
smoke and fire are strictly forbidden in the work place.
Special attention should also be paid to sparks.
Gasoline may also be explosive when it is vaporized,
so operation should be done in a well-ventilated place.
Rem
ove:
Re
move rear cover assembly (→2-7)
Remove rear right wheel assembly (→2-11)
Remove bolt 1.
Remove bolt 2.
Remove rear right absorber
Disconnect connectors of fuel sensor
Re
move fuel hose 1 and clamp.
2
