13. Lighting, Instruments, Sw
itches
13-4

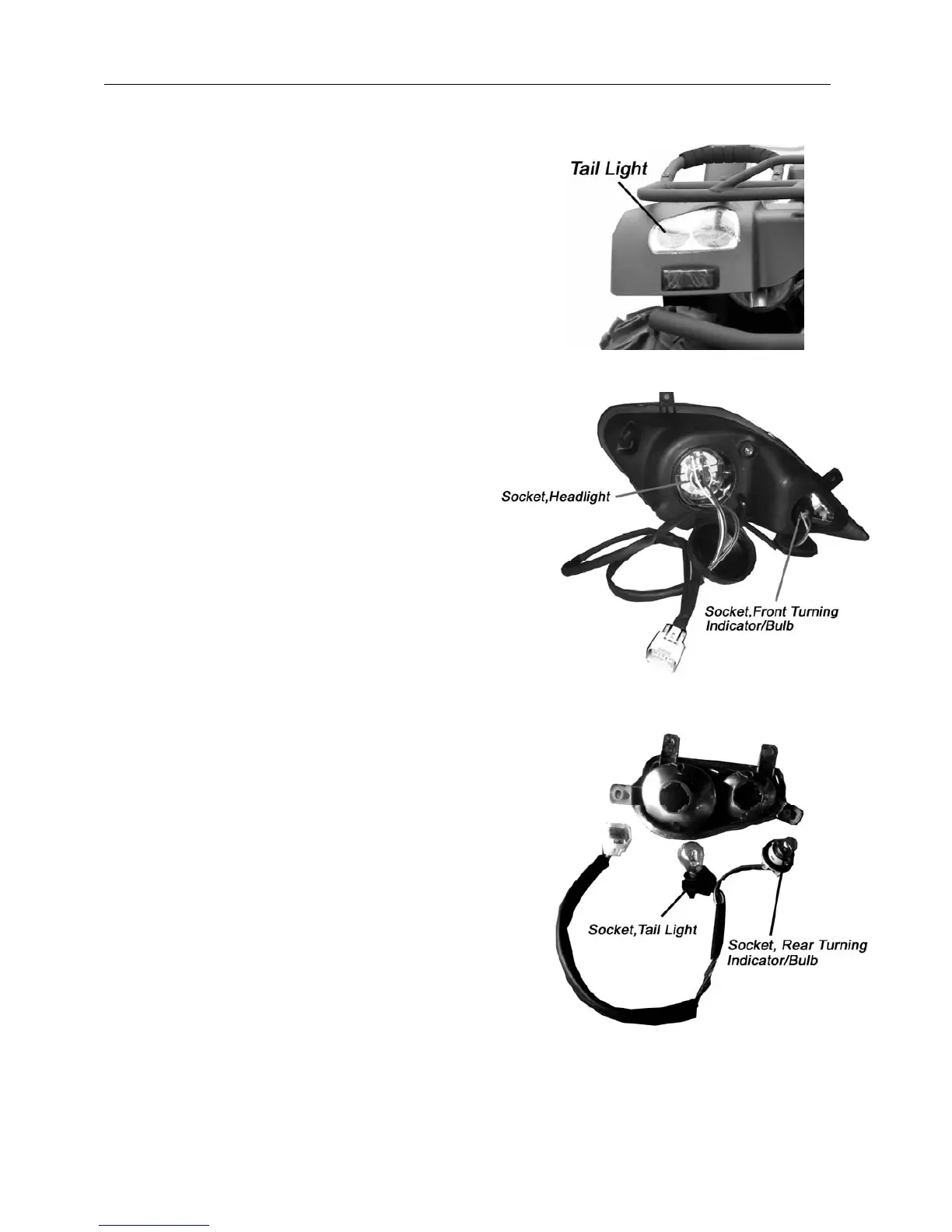

Brak
e Light/Tail Light Bulb
Turn socket counter clockwise and remove the socket
from the tail light cover.
Turn brake light/tail light bulb counter clockwise and.
remove it.
Replace brake light/tail light bulb
Bulb Specification: 12V-
21/5W
Reverse the rem
oval procedure for installation.
Front Turning Indicator Bulbs
Rem
ove headlight (→10-5)
Remove dust cover of front turning indicator/bulb.
Replace front turning light bulbs.
Bulb Specification: 12V-
10W
Rear Turnin
g Indicator Bulbs
R
emove socket of rear turning indicator/bulb.
Replace rear turning indicator bulbs
Bulb
Specification: 12V-10W
Reverse the rem
oval procedure for installation.
