8. FRONT WHEEL, FRONT BRAKE，SUSPENSION，STEERING
8-3
Front w
heel

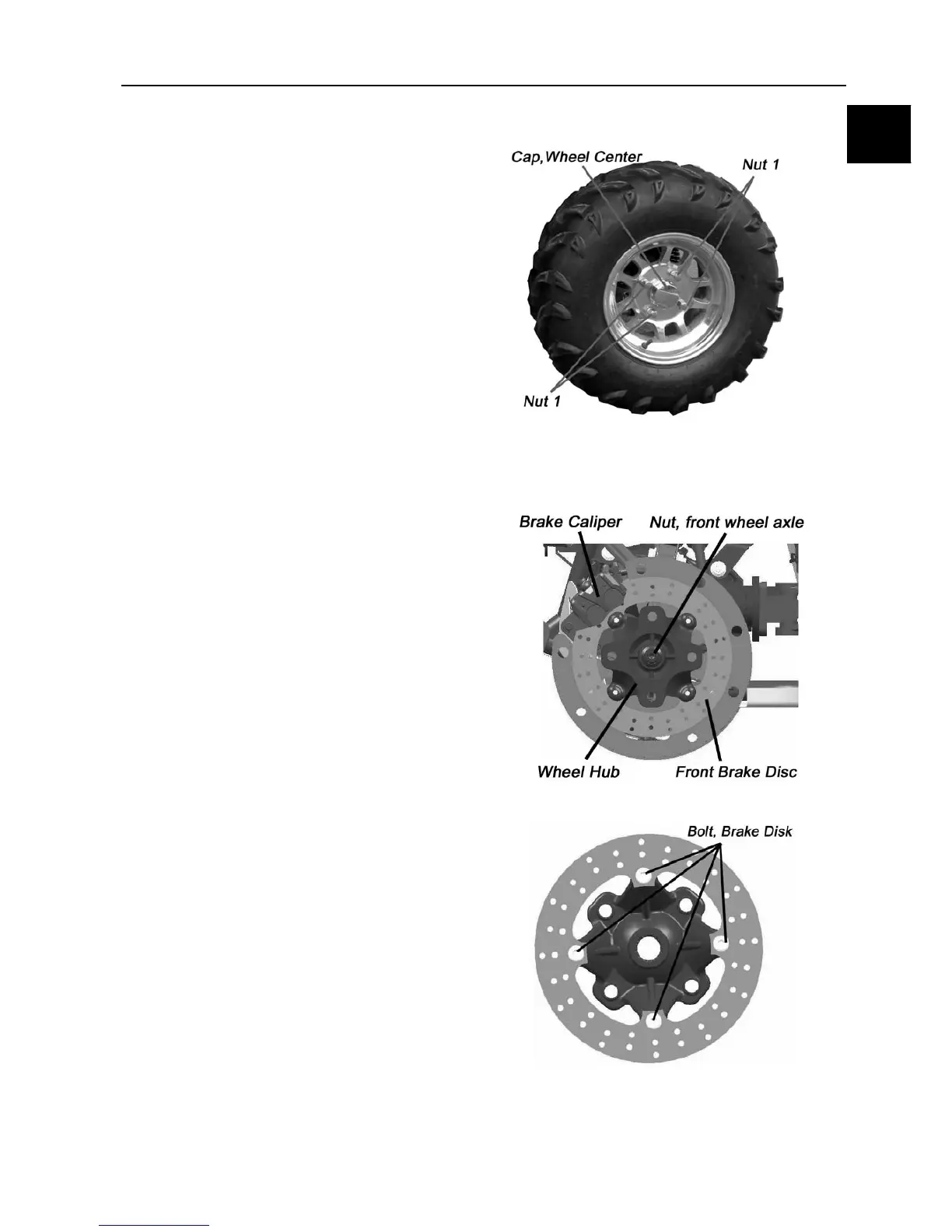

Removal
Securely support the front wheels
Remove:
Cap of wheel center
4 nuts 1 from wheel hub
Front wheel
Inspection Rim
Da
mage, warpage or serious scrapes: →Replace
Replace with a new one, if any.
Slowly turn the wheel, measure the rim vibration
with a dial gauge.
Service limit: Axial: 2.0mm
Radial: 2.0mm
Assembly:
Press r
im into wheel
Install rim on the wheel hub
Tightening Torque:
Bolt, Wheel Hub：30-35 N·m
Front Wheel Hub
Disassembly
Re
move:
--Front wheel(→8-3)
--Front brake caliper(→8-4)
--Rim axle nut
--Brake disc and wheel hub
--4 bolts from front brake disc
--Wheel hub
Installation
Reverse the removal procedure for installation.
Torque, Rim axle nut: 180-200N· m
