13. Lighting, Instruments, Sw
itches
13-9

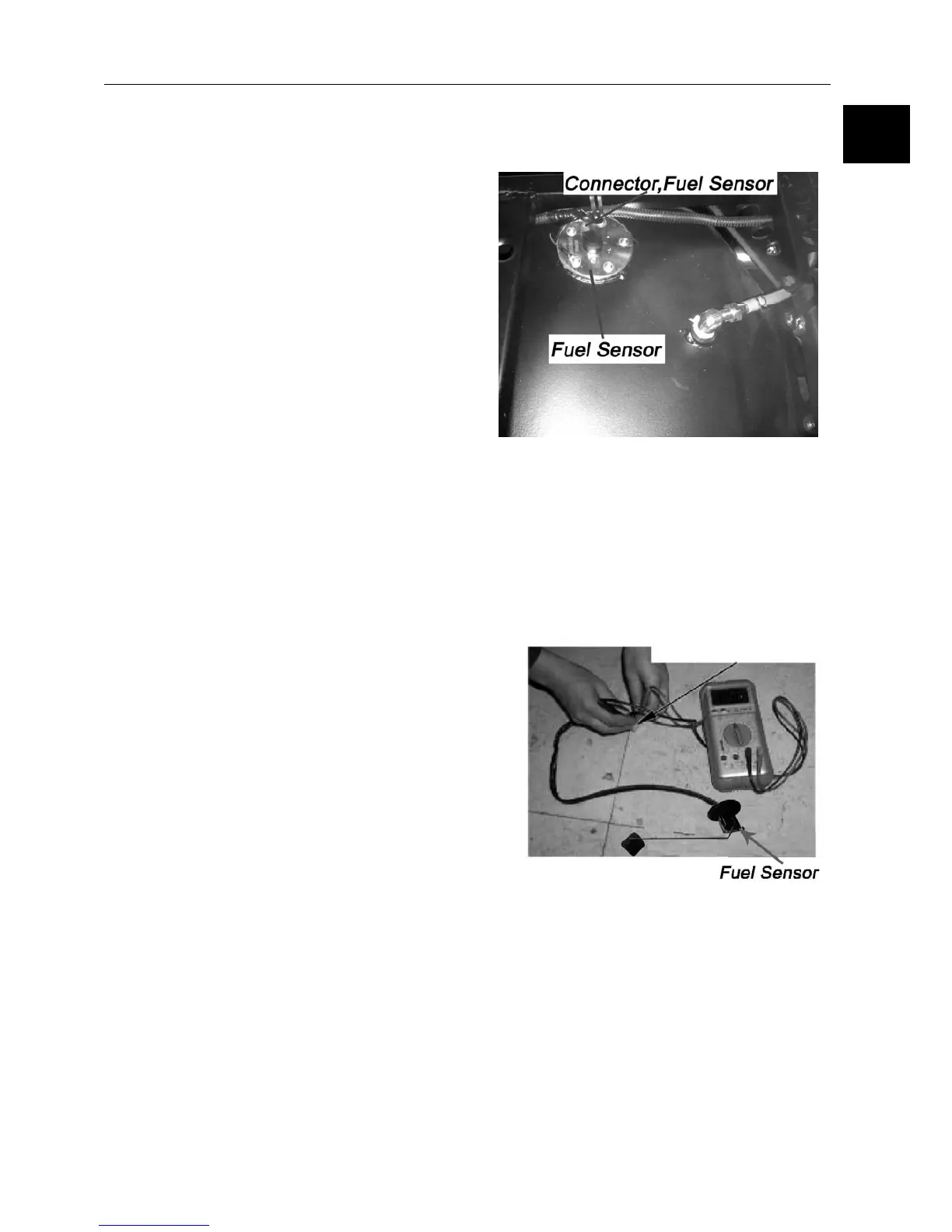

Fuel Sensor
Remove:
--Fuel tank (→2-11)
--5 fixing bolts
--Fuel sensor
Disconnect connector
Inspection
Rem
ove fuel sensor (refer to above steps)
C
onnect connector
Turn ignition
switch to ON
Shake fuel sensor float with hand,
locate the float
position and check if it conforms to the fuel gauge
reading.
Non-conformity: →check
main cable for damage or
short circuit
→Check fuel sensor and fuel gauge
Remove fuel sensor connector.
Connect m
ultimeter between connector terminals.
Shake float with hand and
measure the resistance of
float at different positions.
Connection Terminal:
Upper: Yellow/White-Green: 3-10Ω(20℃)
Lower: Yellow/White -Green: 100-110Ω(20℃)
Faulty fuel sensor: → Replace
