KEEWAY 500ATV - Front Left Suspension

8. FRONT WHEEL, FRONT BRAKE，SUSPENSION，STEERING
8-7
Fr
ont Left Suspension
NOTE:
DO NOT
Remove both left and right suspension
at the same time to avoid fall down of
the vehicle.
Park the vehicle on a level ground and
securely support front part of the
vehicle.
Removal:
Remove:
--Front wheel(→8-3)
--Front wheel hub(→8-3)
--Front brake caliper(→8-4)

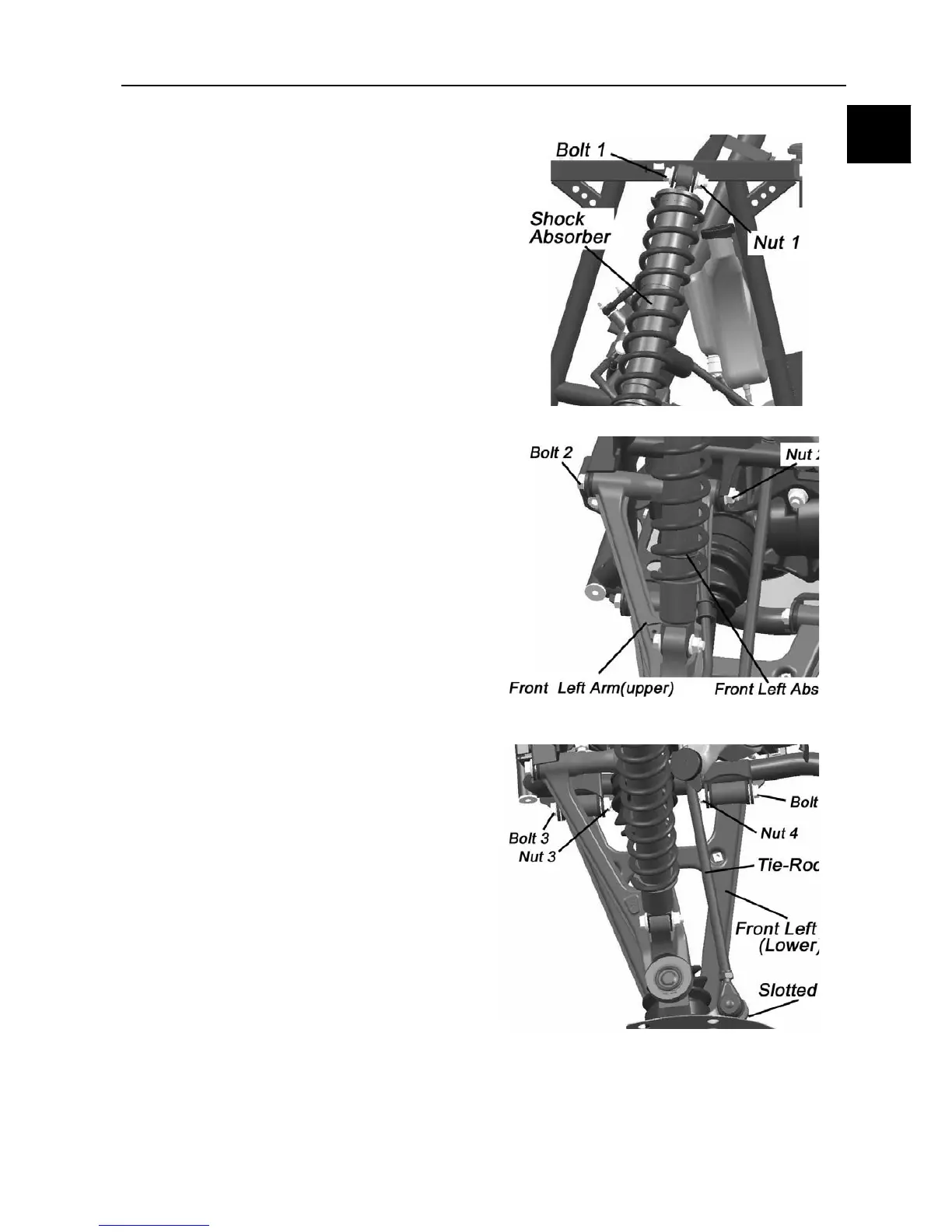

--Bolt1, nut 1
--Bolt2, nut2 for front left arm (upper)
--Bolt3, nut 3 for front left arm (Lower)
--Bolt4, nut 4 for front left arm (Lower)
-- Remove slotted nut
-- Remove tie-rod
Remove front left suspension.
