12. IGNITION SYSTEM
12-7

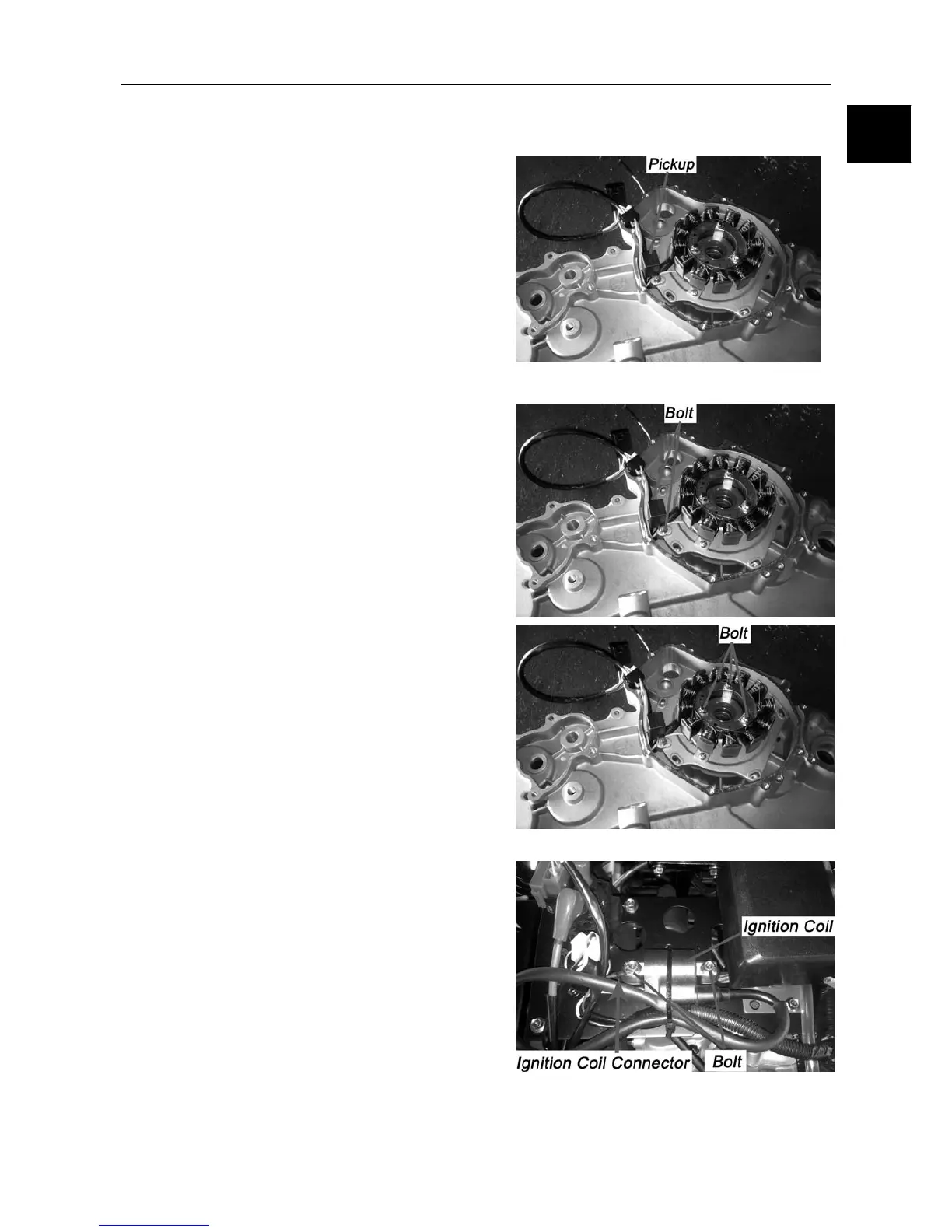

Pick
up Coil
Remove:
— AC m
agneto connector
—Water pump inlet hose and outlet hose, and
drain coolant. (Chapter 4)
—Right side panel (→2-5)
—right footrest board (→2-6)
—Engine decorate cover
—Magneto cover
Note:
Stator is installed on the right crankcase and is
attached by the magnet of rotor. Be careful not to
hurt the fingers when removing.
Loosen bolt, remove AC magneto stator and pickup.
pickup resistance：110～130Ω
Installation
Reverse the removal procedure for installation.
Ignition Coil
Remove magneto cover
Remove spark plug cap from spark plug
(Engine Service)
Loosen bolt, and remove ignition coil.
Installation
Reverse the removal procedure for installation.
Note:
Wires, cables and hoses should be routed
properly (→Chapter 1)
