6. Engine Removal;In
spection & Installation
6-46
9. V

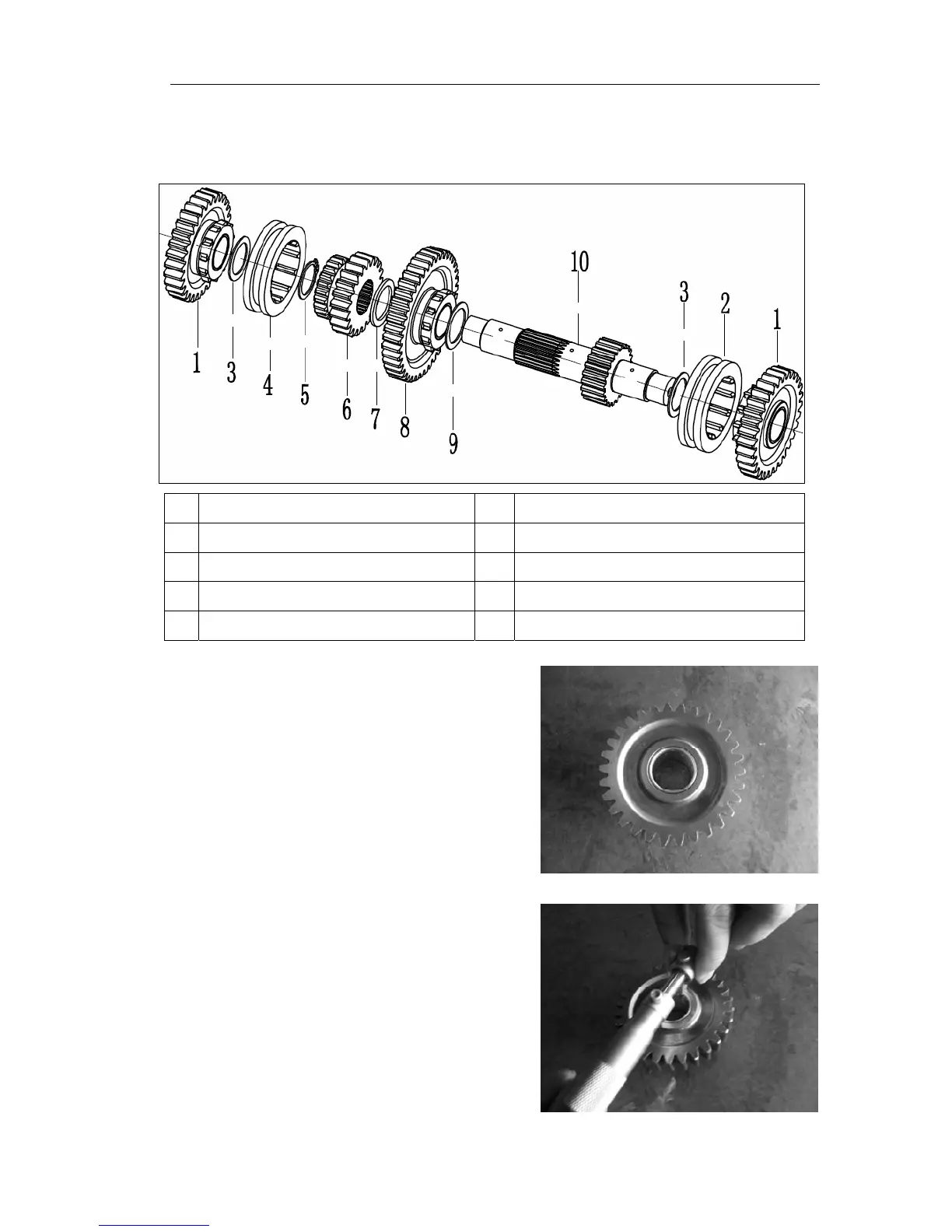

ice shaft combination decomposition remove check
According to the list of instructions on the order
1
Into reverse components 6 Bridge active tooth
2
Sliding set of 2 7 washerΦ26*Φ35*1.5
3 washerΦ23.5*Φ33*1
8 Low block gear components
4
Sliding set of 1 9 washerΦ26*Φ35*1
5
C form block circle 10 countershaft
9.1wheel
gear check up
9.1.1.
Check the vice shaft gear tooth surface five have
crack, pitting corrosion defects, such as a crack,
pitting
the serious gear replacement or vice axis.
9.1.2The reverse gear components and low gear
components contains copper sets, such as copper set of
severe worn, within the prescribed scope is replaced
copper or a gear.
Inner diameter standards into reverse ： 23.52-23.541
mm
Low gear inner standard：26.02-26.041 mm
