9–6

. Rear Wheel、Rear Brake、Suspension

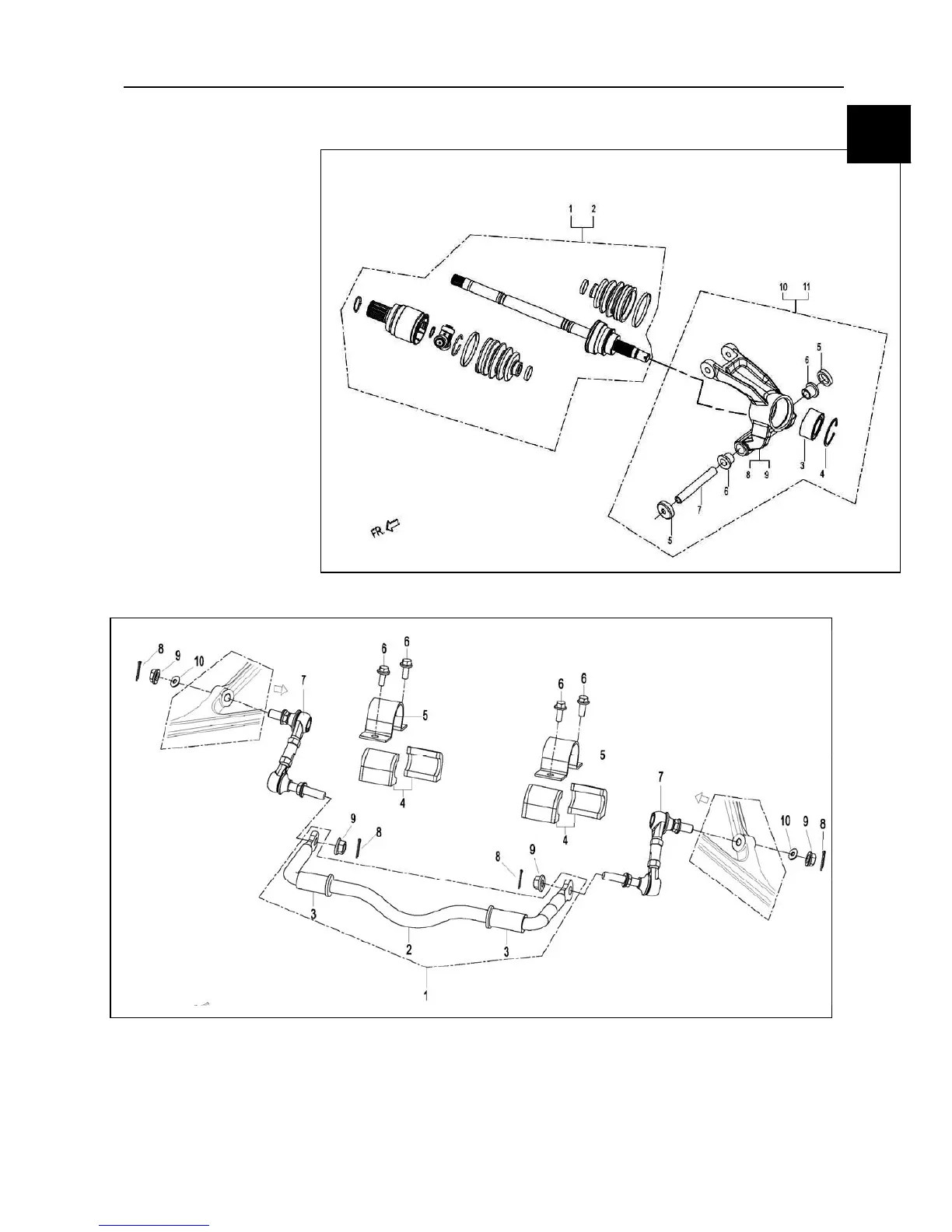

REAR KNUCKLE DISASSEMBL

Y /INSTALLATION

1. SHAFT SET, L.REAR

2. SHAFT SET, R.REAR

3. BEA

RING（K35×62×40）

4. CIRCLIP（φ62×2）

5. CAP,PIVOT

6. BUSH ,RR KNUCKLE

7. COLLAR ,RR KNUCKLE

8. KNUCKLE SET,L.RR.

9. KNUCKLE SET,R.RR.

10. KNUCKLE SET,L.RR.

11. KNUCKLE SET,R.RR.

ABILIZER BAR DISASSEMBLY /INSTALLATION

STABILIZER BAR. 2. STABILIZER BAR. 3. CENTER SPACER 4.

RUBBER S

UPPORT

. HOLDER, STABILIZER 6. BOLT, FLANGE（M8×16） 7. LINK SET,RR.STABILIZER

8. PIN , SPLIT（2.5×25） 9. NUT（M10×1.25） 10. WASHER（φ10×φ20×2）
