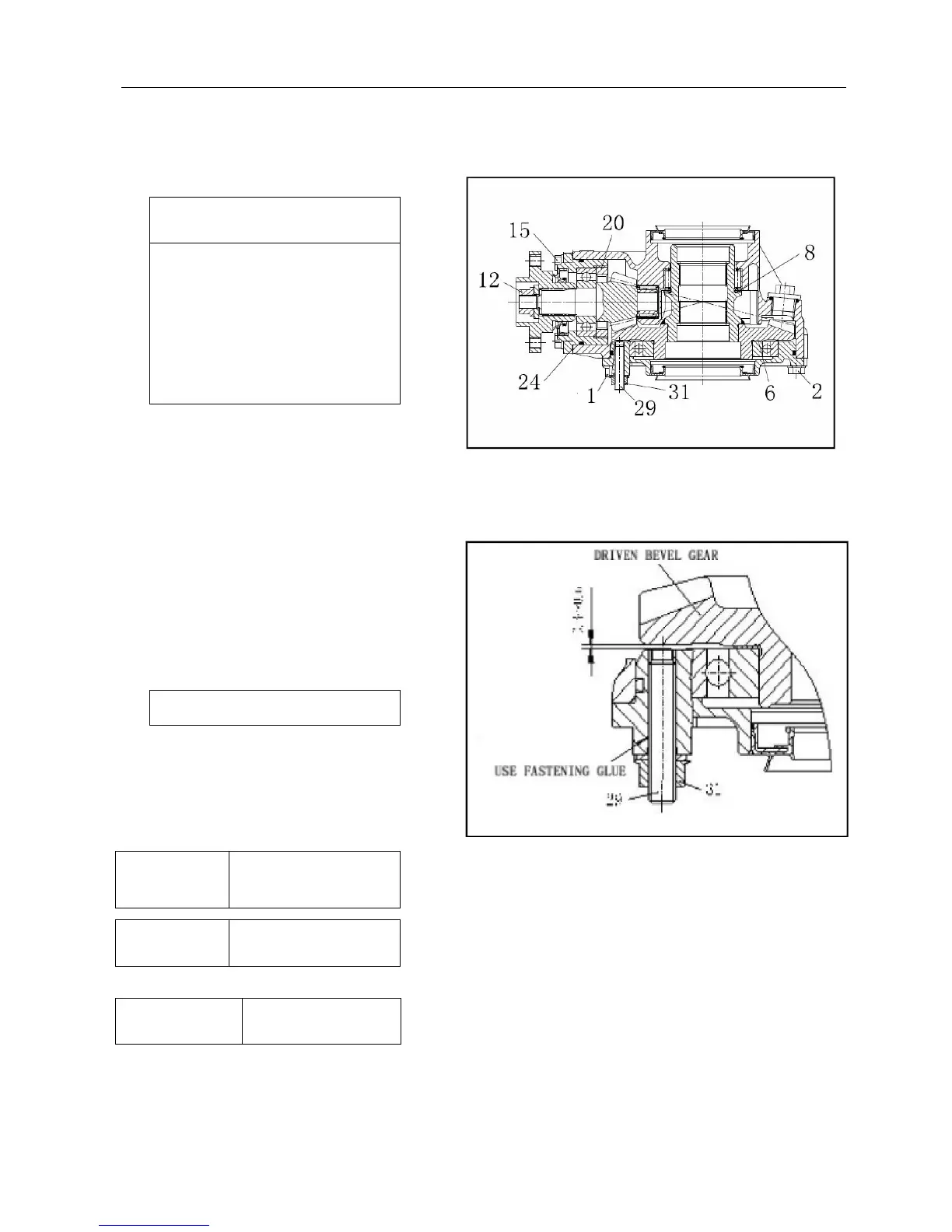

Rear axle assembly and adjustment
z Illus
tration
Tightening torque
I
tem“ 1” 35Nm
Item“ 2” 25Nm
Item“ 12” 70Nm
Item“ 15” 25Nm
Item“ 20” 60Nm
Item“ 31” 16Nm
Use glue for Item
“29”assembly
z Assembly clearance and adjustment of
drive bevel gear assembly rear axle.
a. Adjust installing by“24” thickness
b. Adjust gear clearance by choosing
“ 6” thickness.
c. Inspect installing clearance by check-
ing bevel gear clearance.
Standard：0.1～0.2
e Keep installing point b
earing clear-
ance 0.1～0.2 by choosing“8” thickness.
d. Drive bevel gear clearance measure ment
illustration(see above).Install measuring
tools,tightening torque(M14 ×1.25×60).Put up dial
indicator and make sure distance from indicator
point tomeasuringtoolcenteris22mm.Counter-clock
turn the toll and read the data.
Adjust “6”
thickness
0.2 0.3 0.4
Adjust “8
”
thickness
1.0 1.2 1.4 1.6 1.8
Adjust washer
“24”thickness
0.4 0.5 0.6
