12. IGNITION SYSTEM
12-5

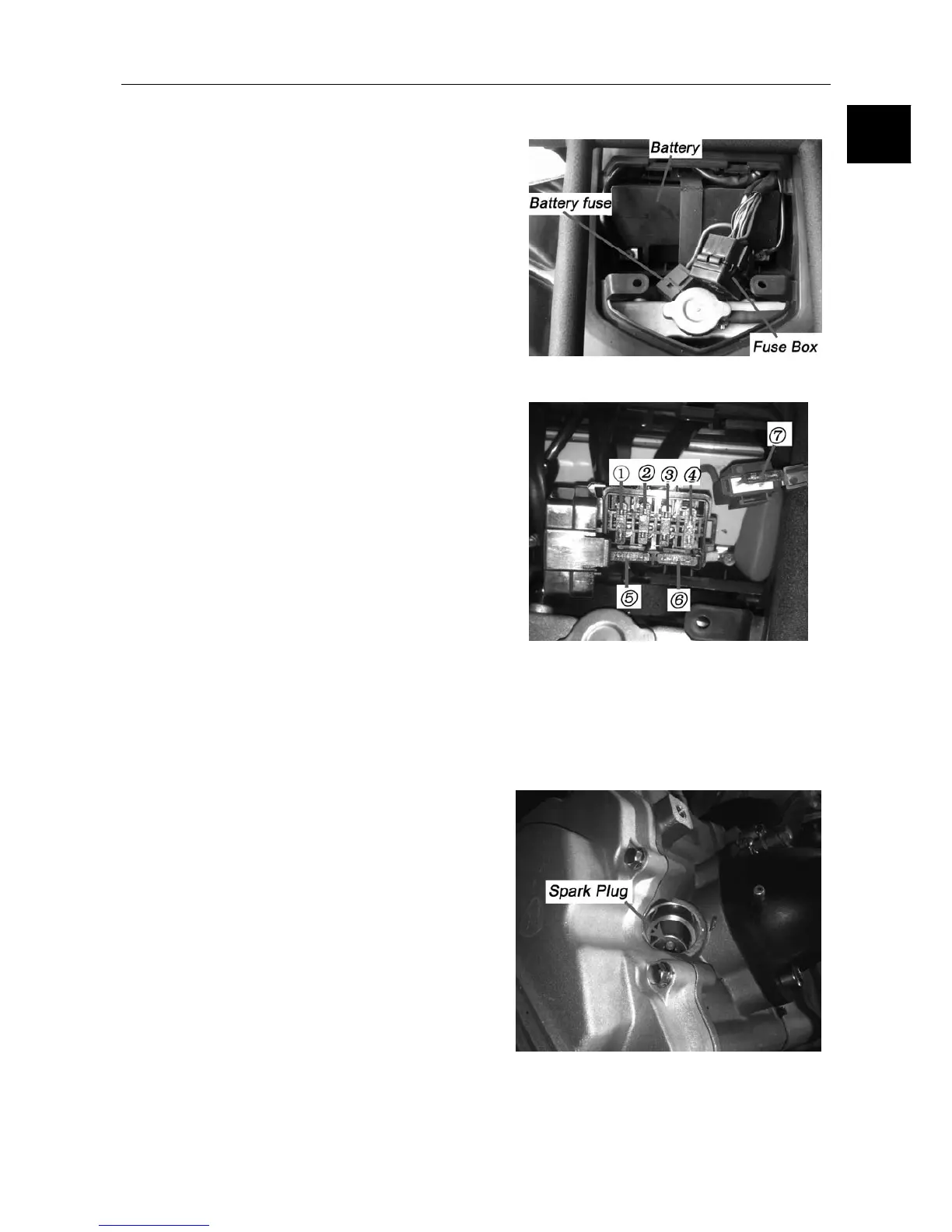

Main and ignition fuses
●
Check th
e main and ignition fuses for continuity.
●
Refer to “CHECKING THE FUSES” in chapter 11.
●
If the m
ain and ignition fuses is bad. →Replace
the fuse(s).
① Fan fuse: 15A
② Power output fuse: 10A
③ Main switch fuse: 10
A
④ Light fuse: 20A
⑤ Reserve fuse: 10A
⑥ Reserve fuse: 20A
⑦ Battery fuse: 30A
Battery
●
Check the condition of the battery.
●
Refer to “CHEC
KING AND CHARGING
THE BATTERY” in chapter 11.
●
If the battery is bad, Clean the battery
term
inals. Recharge or replace the battery.
Spark
plug
●
Check the condition of the spark plug.
● Check the spark plug type.
● Measure the spark plug gap.
Refer to “CHECKING THE SPARK PLUG”
in chapter 6.
● If the spark plug is in bad condition, or it is not
the correct type. →Replace the spark plug.
Standard spark plug: BKR6E
Spark plug gap: 0.6~0.8mm (0.024~0.031 in)
