KEEWAY 500ATV - Disassembly of Front Axle; Front Axle Housing Group

10. FRONT/REAR AXLE
10–3
Disassembly of fr
ont axle

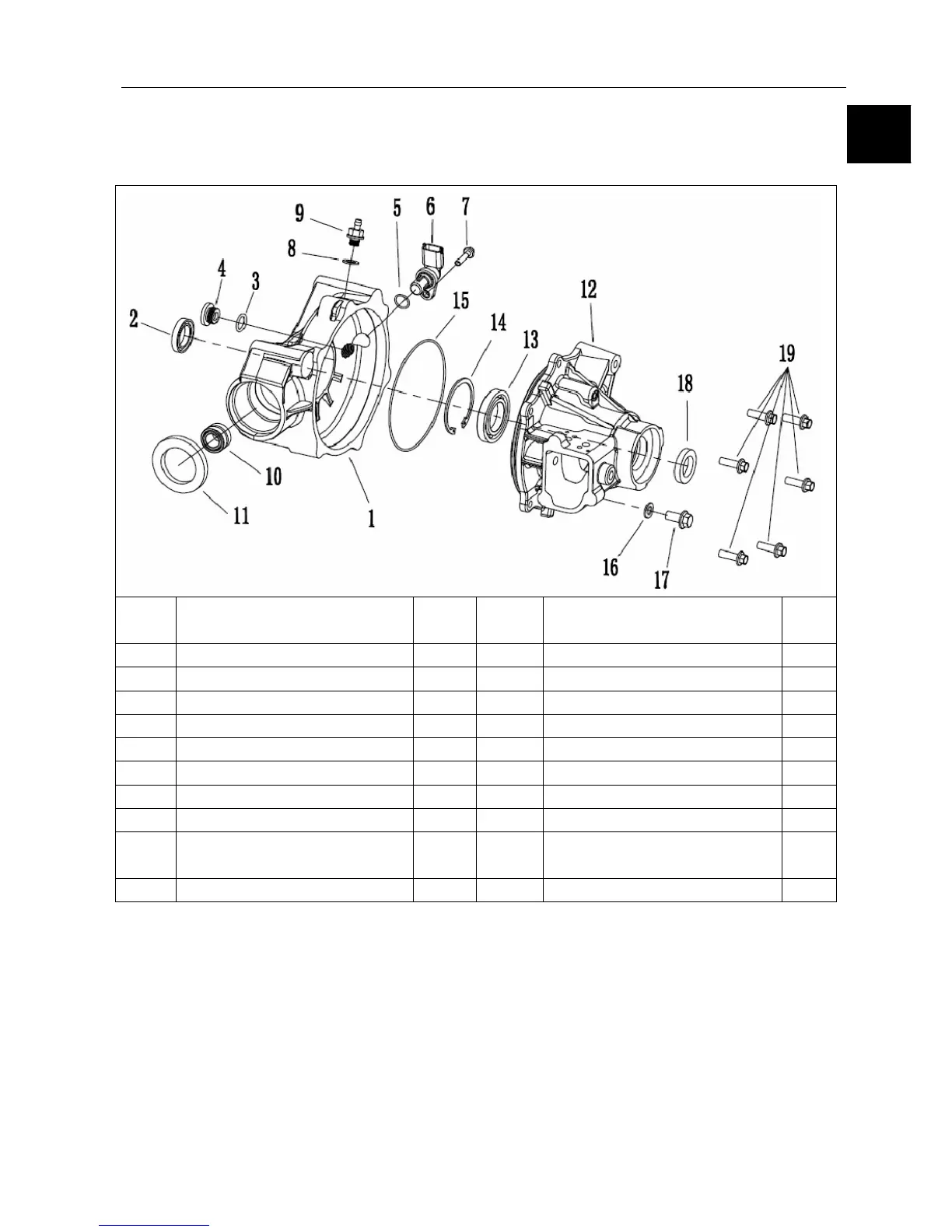

1. FRONT
AXLE HOUSING GROUP
Ref.N
o
Description QTY
Ref.No Description QTY
1
FRONT AXLE LEFT CASE 1 11 OIL SEAL (45×68×8) 1
2
OIL SEAL (25×40×7) 1 12 FRONT AXLE RIGHT CASE 1
3
O-RING (ф16.5×ф2.5)
1 13
BEARING (16007) 1
4 BOL
T(M18×1.5×10) 1 14 CIRCLIP(62) 1
5
O-RING(ф15.5×ф1.5)
1 15
O-RING(ф160
×ф3)
1
6 SPEED
SENSOR 1 16
ALUNINUM PAD(ф18×ф10×1.5)
1
7 BOL
T,FLANGE(M6×16) 1 17 BOLT,FLANGE(M10×1.25×12) 1
8
ALUNINU
M PAD(ф18×ф10×1.5)
1 18 OIL SEAL(25×40×7) 1
9
JOINT, BREATHER PIPE
（M10×1.25×10）
1 19 BOLT,FLANGE(M8×1.25×25) 6
10 NEEDLE
BEARING(NA5903) 1
10
