9–3
9
. Rear Wheel、Rear Brake、Suspension
Rear
wheel removal:
Refer to front wheel remove.（→8-3）
Inspection Rim:
Damage, warpage, serious scrapes, etc. Replace if necessary.
Slowly turn the wheel, measure the rim vibration with a dial gauge.
Service limit：Axial: 2.0mm
Radial: 2.0mm
Installation:
Refer to front wheel installation.（→8-3）

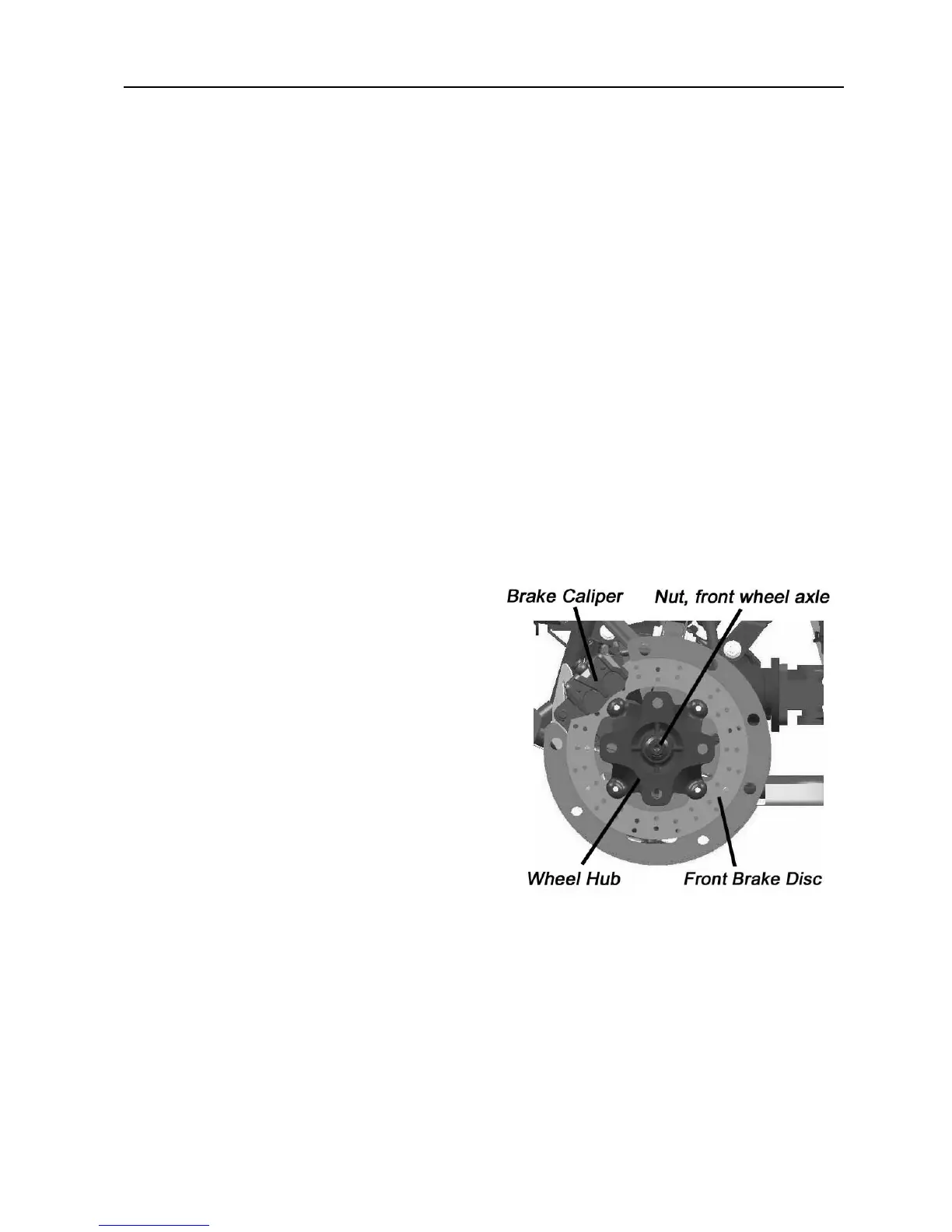

Wheel hub removal:
Remove rear wheel（→9-3）;
Remove nut of front wheel axle;
Remove wheel hub;
Installation:
Reverse the removal procedure for installation
Tightening torque, Rim Axle Nut：180-200N.m
