10. FRONT/REAR AXLE

10–10

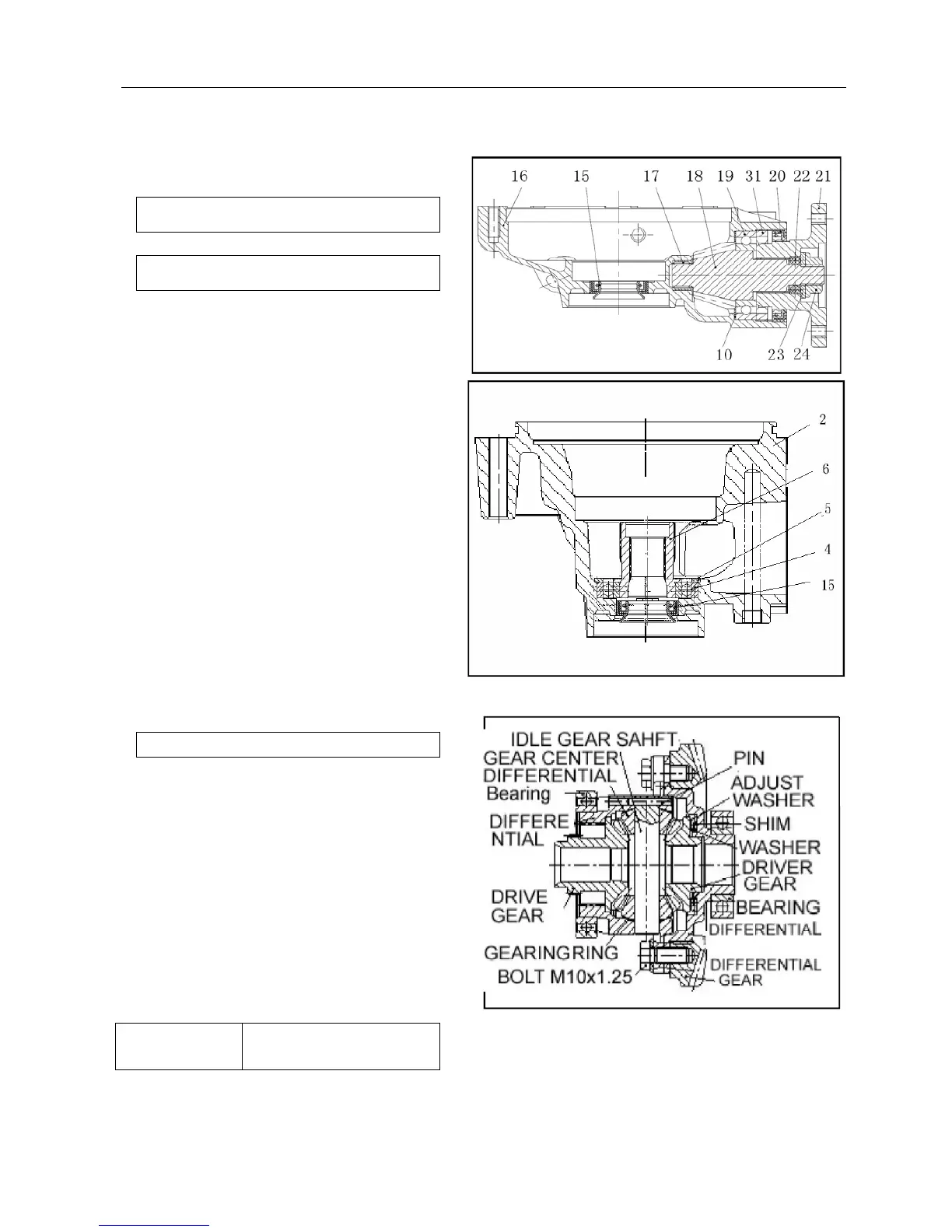

Front axle assembly and adjustment

ront axle case cover assembly

Item

“31”tightening torque60Nm

Item

“24”tightening torque70Nm

Note：Use engine oil for oil seal,

bearing and drive clutch assembly;

“ 24” Use screw thread fastening glue;

z Front differential gear case cover

assembly;

Note: Use engine oil for oil seal or

bearing assembly.

z Differential gear assembly

M10×1.25×20,Tightening torque35Nm

Note ： Use engine for bearing and dif-

erential gear;；

Use proper washer to make gear working

freely.

Adjust washer

thickness

0.2 0.3 0.4 0.5

1.0
