10. FRONT/REAR AXLE
10–1
1

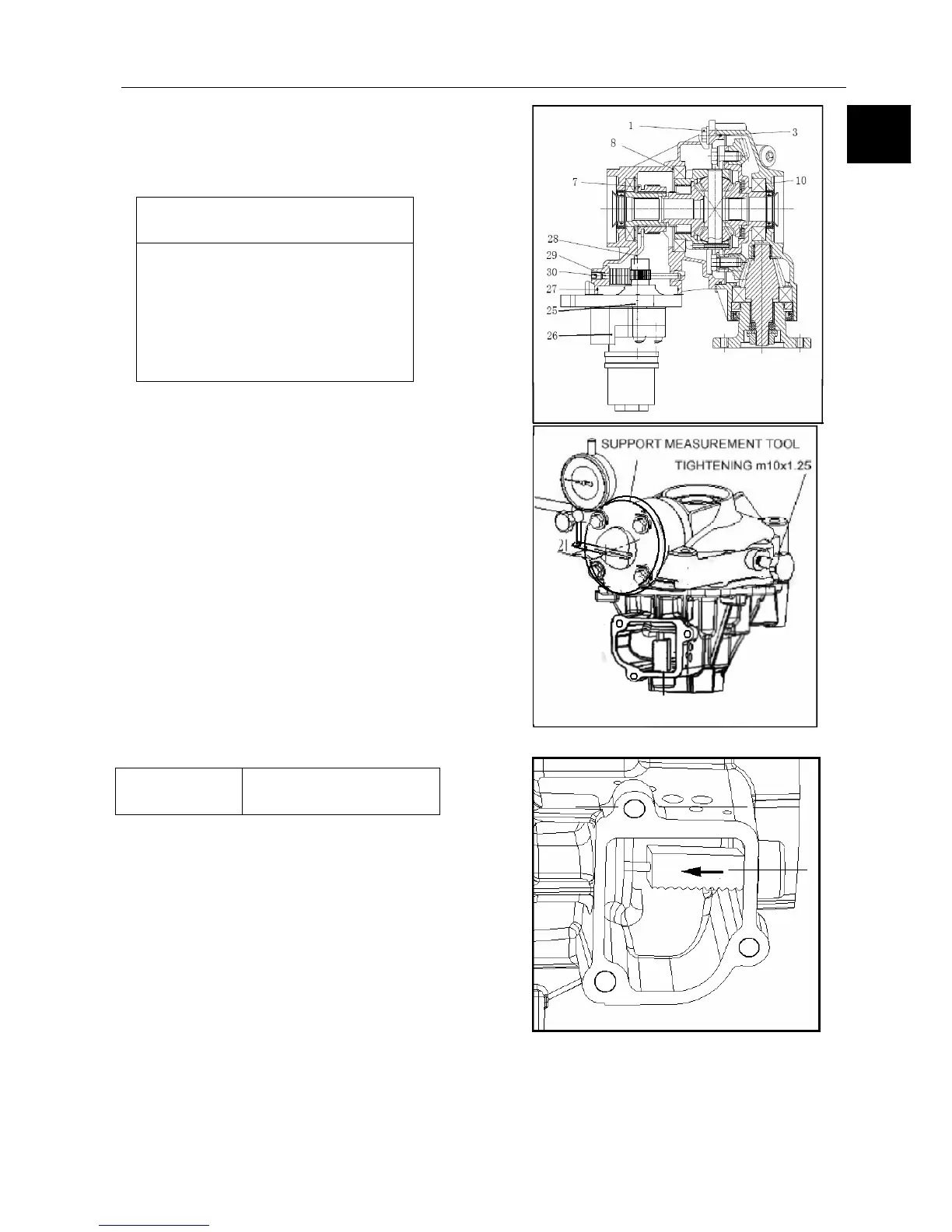

z Fr
ont axle assembly and adjustment
Illustration：
Tightening torque
I
tem“ 1” 25Nm
Item“25” 10Nm
Item“30” 13Nm
Use fastening glue for item
“30” assembly.
a. Use proper washer 8 and 10 thick ness to adjust
gear side clearance between drive pinion gear
and differential gear.
Drive bevel gear clearance measurement; Install sup-
port tools, tightening bolts(M10 ×1.25 ) put up
dial indicator, make sure 21 mm is between measuring
point and support tools. Turn support tools counter-
clock and read the data.
Standard: 0.10-0.25
Adjust washer
thickness
0.1 0.2 0.3 0.4
0.5 1.0
b. Shift fork and drive clutch assem
bly should be
against tightly to the arrow shape illustration.
