KEEWAY 500ATV - Wheels; Front Toe-In Size

3. CHECK
S & ADJUSTMENT
3-8
Wheels
Lift front wheel on level place, and m
ake sure
there is no loading on the wheels.

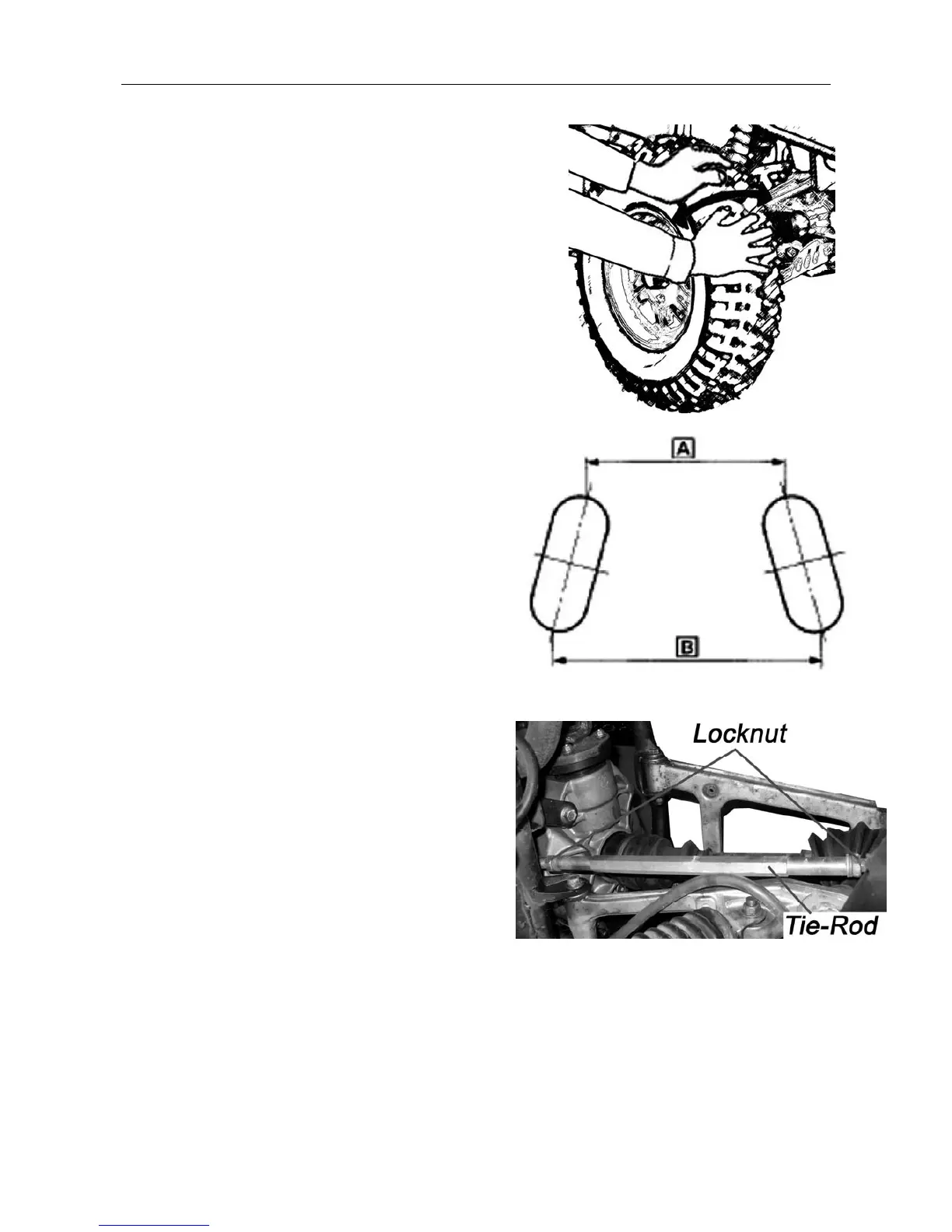

Shake the front wheel left and right to check
whether the joint of front wheel is tightened and
check whether it sways.
Not tighten enough:
→
T
ighten it
Sway:
→
Replace the rocker arm
Fr
ont Toe-in size
Park the veh
icle on level place, measure the front
toe-in
Toe-in: B-A=0～10mm
Toe-in out of the range:
→
Adjust the locknut
of tie-rod
Note:
Af
ter the toe-in has been adjusted, slowly run the
vehicle to check whether the direction of vehicle
can be controlled by handlebar.
