8. FRONT WHEEL, FRONT BRAKE，SUSPENSION，STEERING
8-15

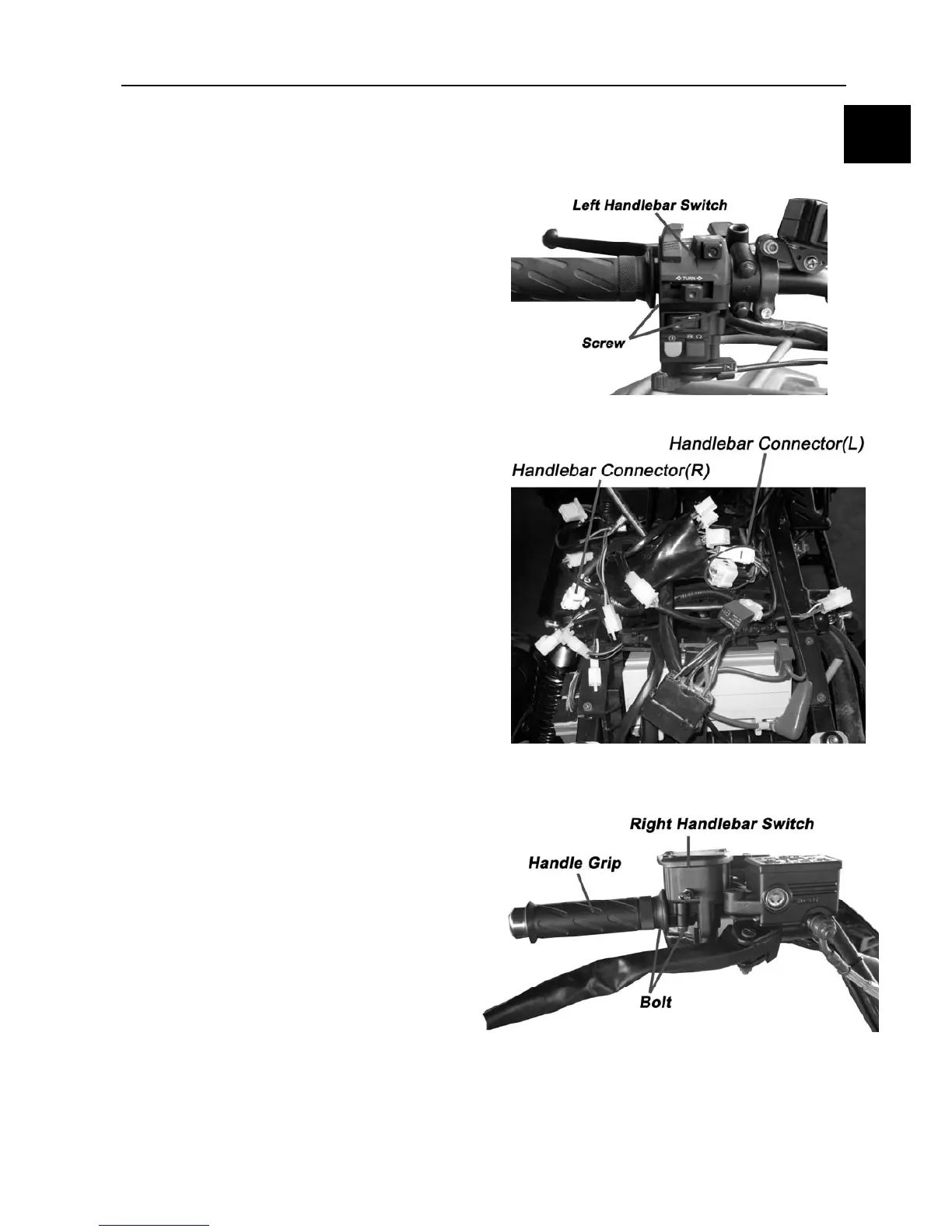

Installation
of Left Handlebar Switch
Match the lim
it pin of left handlebar switch with
positioning hole on handlebar.
Tighten with screw 1 and 2 from
under
Insert connector of left handlebar switch into socket
of
main cable
Installation
of Right Handlebar Switch
Tighten with bolt 1 and 2 from
under.
Insert connector of right handlebar switch into
socket of m
ain cable.
8
