7. CARBURETOR
7-6

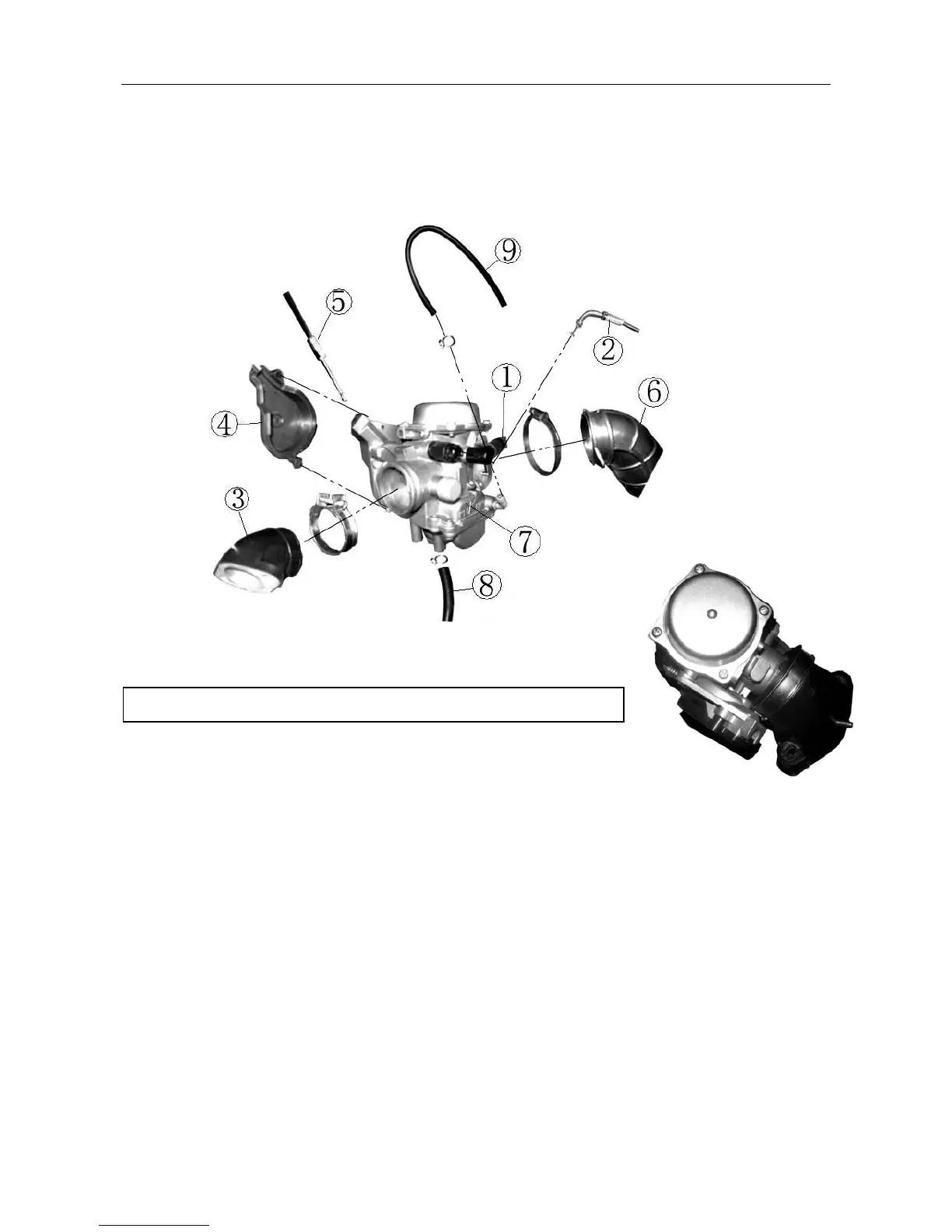

Carburetor Installation
①-vacuum
breather hose ②-starter cable ③-carburetor joint (engine intake manifold)
④-throttle valve cover ⑤-throttle cable ⑥-Carburetor joint (air filter)
⑦-carburetor ⑧-drain hose ⑨-fuel inlet hose
6. Carburetor Parameters
T
ype
KEIHI
N
AW6A
A
perture No.
07G0
T
hroat size (mm)
40mm
P
ilot (r/min)
1400
r/min±100 r/min
F
loat height (mm)
10±1
F
uel level (mm)
3.5±0.5
M
ain jet (MJ)
99101-939-1380(140#)
M
ain air jet (MAJ)
N424-25B35(40#)
J
et needle (JN)
N425-PCA00
N
eedle jet (NJ)
16164-NN1-0030
Note: Align the installation m
ark of carburetor and carburetor joint.
