2. V
ehicle body，Muffler
2-12

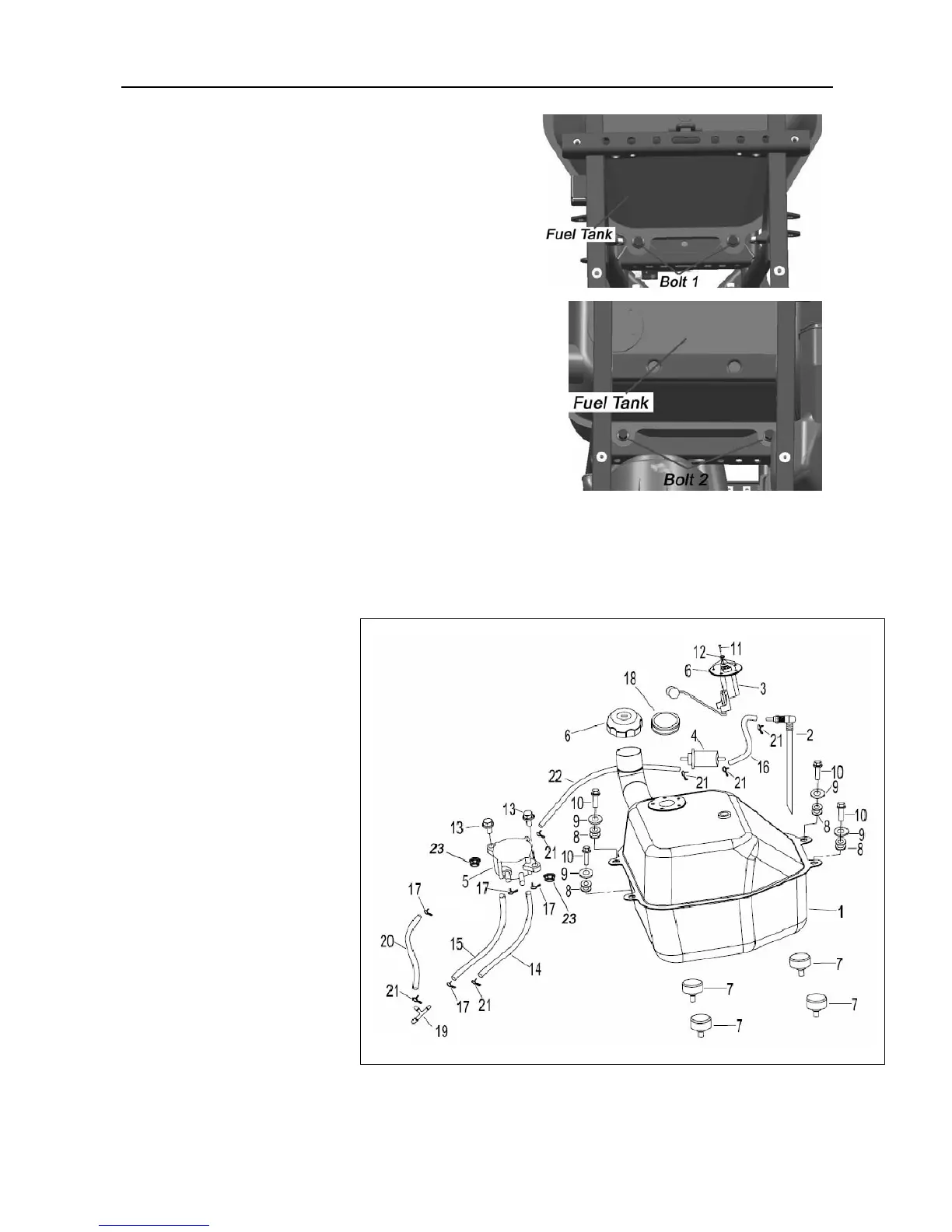

Re
move bolt 1
Remove bolt 2
Remove fuel tank
Installation
Reverse the rem
oval procedure of installation
Fuel Tank ASSEMBL
Y DISASSEMBLY /INSTALLATION
1. FUEL
TANK
2.
PIPE FUEL
3. FUEL
SENSOR
4.
FUEL
FILTER
5.
FUEL
PUMP
6.
CAP
, FUEL TANK
7.
CUSHION RUBBE
R(φ25)
8.
CUSHION RUBBE
R(φ20)
9.
WA
SH ER （φ8）
10.
BOL
T, FLANGE (M8×20)
11.
SCREW(M5×10)
12. WA
SH ER（φ5）
13.
BOL
T, FLANGE(M6×16)
14.
HOSE, V
ACUUM(φ5)
15.
FUEL
HOSE(φ5)
16.
FUEL
HOSE(φ5)
17.
CLAMP（φ8）
18. CUSHI
ON RUBBER(φ55)
19.
HOSE, THREE
JOINT
20.
HOSE,
VACUUM(φ4)
21.
CLAMP（φ10）
22. FUEL
HOSE(φ5)
23.
NUT
,FLANGE(M6）
