KEEWAY 500ATV - Page 127

6. Engine Removal;In
spection & Installation
6-65

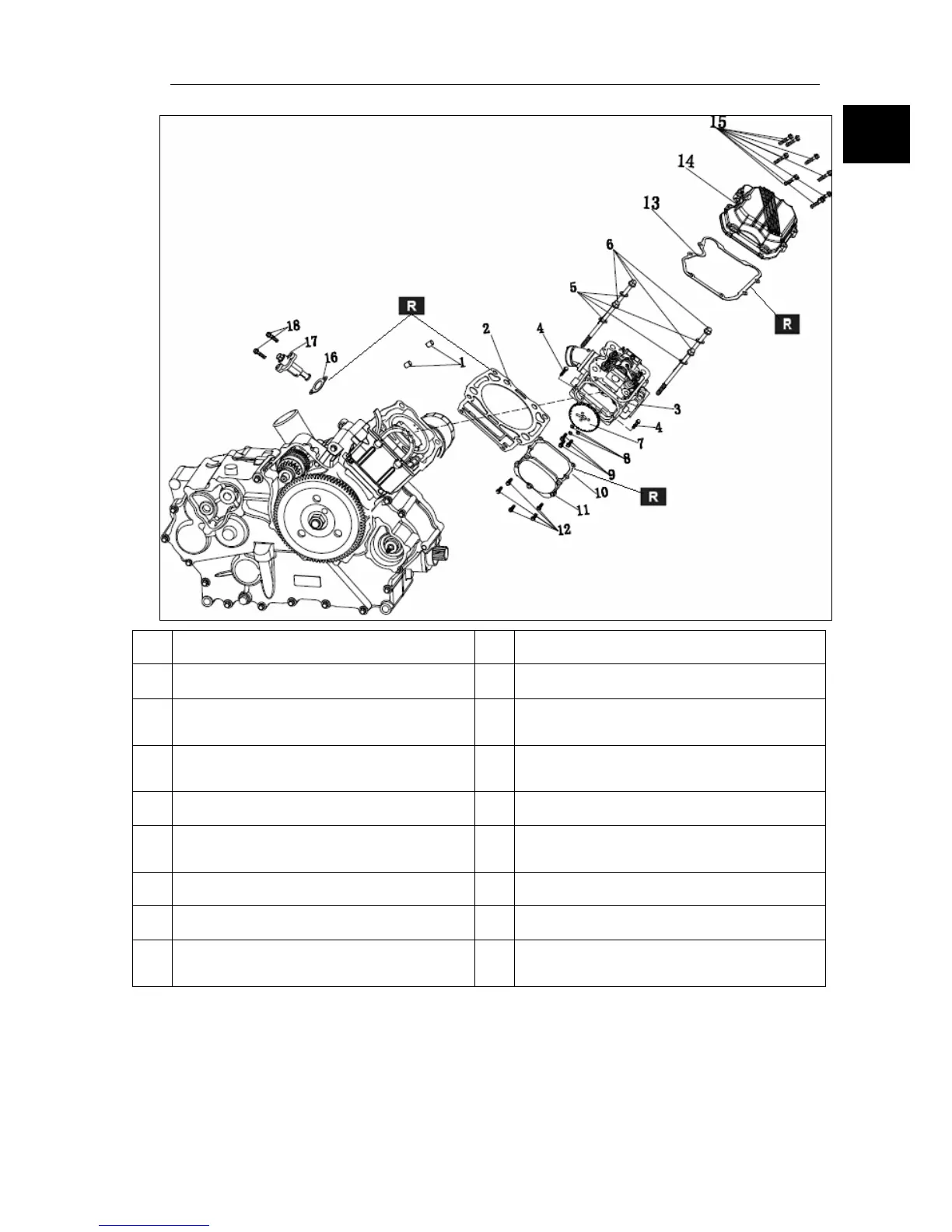

1 locating
pinΦ15*20 10 The cylinder head side cover gasket
2
Cylinder head of cushion 11 Cylinder head side cover
3
The cylind
er head combination (see
cylinder head with the department that)
12
Hexagon flange boltsM6*20
torsion 10N.m
4
Hexagon flange boltsM6*28
torsion 10N.m
13 Cylinder head
gasket
5
washerΦ25*Φ10.5*2 14 Cylinder head
6
Hexagon flange boltsM10*190
torsion 70N.m
15
Hexagon flange boltsM6*28
torsion 10N.m
7
Timing driven sprocket 16 The chain adjustment control gasket
8
spring washer 17 The chain regulator assembly
9
Hexagon flange boltsM6*22
torsion 10N.m
18
Hexagon flange boltsM6*25
torsion 10N.m
