6. Engine Removal;In
spection & Installation
6-32

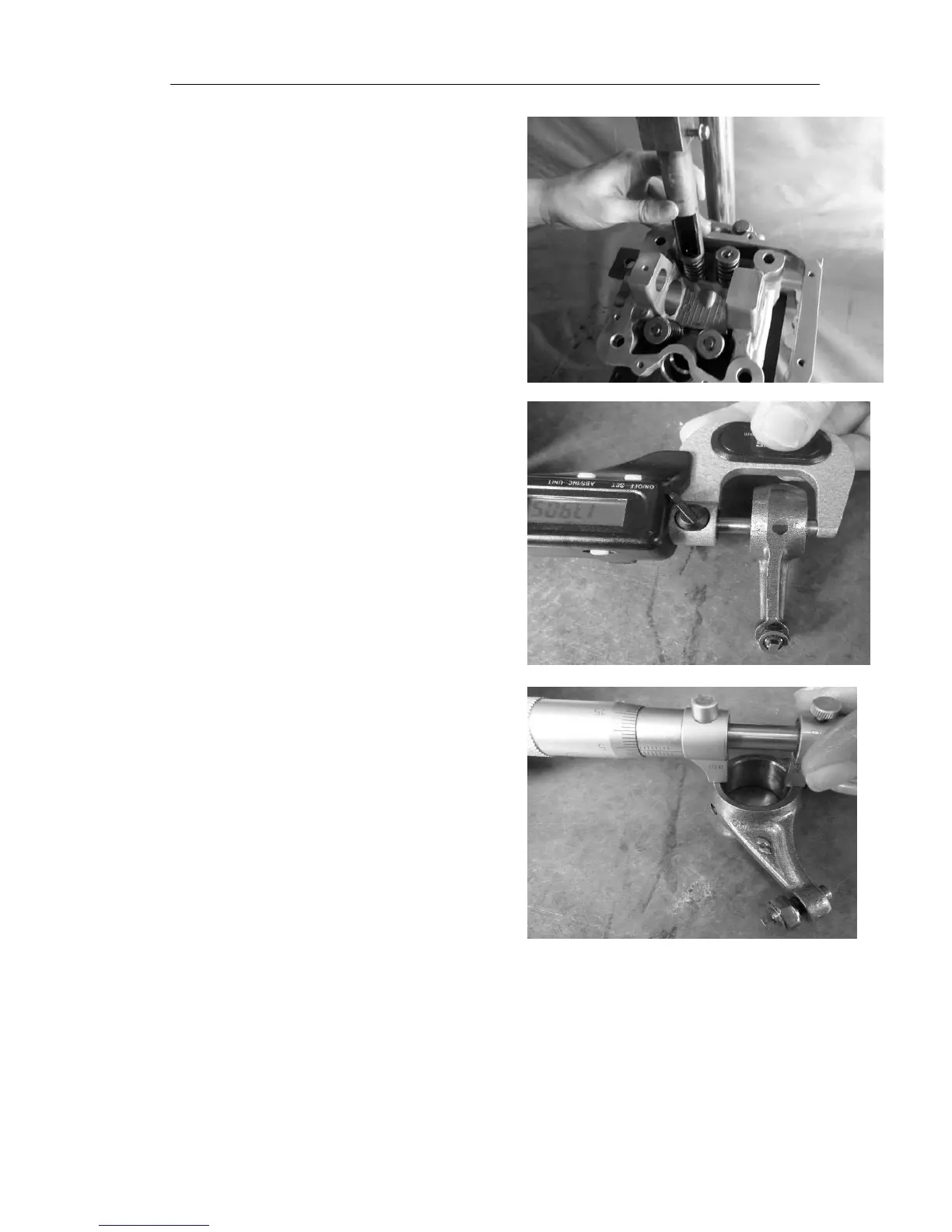

4.9.1. Re
move the clip that gas door lock
As shown in figure with a special tool
to overcome valve spring tension, making
the lock clip from bearing the position
of the valve plate with magnets will lock
clip suck out.
4.9.2. Rocker check
4.2.1 Rocker standard thickness：29.95-30.00 mm
4.9.3 With the rocker aperture standard：22-22.021 mm
● If
the test result is greater than the standard
requirements, the rocker replacement.
